Norsat 3025XIF INSAT C-Band (4.50 - 4.80 GHz) PLL LNB (F-Connector)
$495.00
SKU
NST-3025XIF
Norsat 3025XIF INSAT C-Band (4.50 - 4.80 GHz) PLL LNB (F-Connector) is available to buy in increments of 1
High Stability, Type "F" connector RF output, 25K Noise Temp, LO stability: Phase Locked to External Reference at 10MHz, 4.50 - 4.80 GHz, 5.00 GHz L.O. Frequency, 960-1260 MHz output
3025XIF High Stability PLL C-Band
Norsat 3025XIF C-Band PLL LNB has a local oscillator frequency of 5.00 GHz and operates from 4.50 to 4.80 GHz. The 3025XIF LNB offers a 25K noise temperature configuration. This High Stability Norsat PLL C-Band LNB has a CPR229 waveguide input and its Local Oscillator stability is Phase Locked to External Reference at 10MHz. F-connector, L-Band RF Output 960 - 1260 MHz. Conversion Gain: 6 dBm

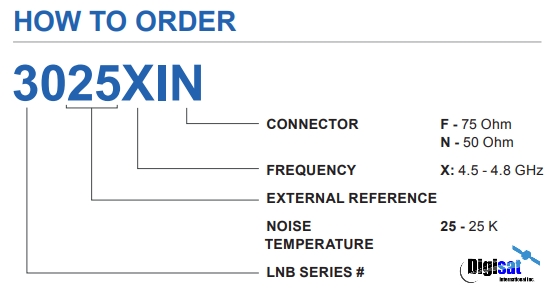

Norsat 3025XIF Ordering Information
PLL LNB Outline Diagram
KEY SPECIFICATIONS |
|
| Product Family | 3000 Series |
| Band | C-Band |
| LO Type | External |
| # of onboard LOs | Single-band |
| LO Stability | Phase Locked to External Reference at 10MHz |
| Noise Figure | 25 K |
| Input Frequency - Band 1 | C-Band: 4.50 - 4.80 GHz |
| Output Frequency 1 | L-Band: 960 - 1260 MHz |
RF SPECIFICATIONS |
|
| LO Frequency 1 | 5.00 GHz |
| Phase Noise @ 1KHz offset | -73 dBc/Hz |
| Phase Noise @ 10KHz offset | -83 dBc/Hz |
| Phase Noise @ 100KHz offset | -95 dBc/Hz |
| Conversion Gain | 6 dBm |
| Input VSWR | 2.2 : 1 |
| Output VSWR | 2.2 : 1 |
| Output P1dB compression point | 5 dBm |
ELECTRICAL SPECIFICATIONS |
|
| Power Requirements | 15 - 24 V |
| Current Drain | 300 mA |
INTERFACE SPECIFICATIONS |
|
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | F-75 Ohm |
M & C SPECIFICATIONS |
|
| LED Indicators | None |
ENVIRONMENTAL SPECIFICATIONS |
|
| Temperature - Operational | -40 to +60°C |
| Humidity | 0 - 95% |
PHYSICAL SPECIFICATIONS |
|
| Dimensions (L x W x H) | 180 x 100 x 70 mm |
| Weight | 425 g |
4.50 to 4.80 GHz, INSAT, VSAT, Tx/Rx, TVRO, Maritime
