Norsat 3020XF C-Band (3.4 to 4.2 GHz) Ext Ref PLL LNB (F-connector)
"F" connector RF output, 3.40 to 4.20 GHz, 5.15 GHz L.O. Frequency, Output: 950 to 1750 MHz, L.O. stability: Phase Locked to Ext Ref

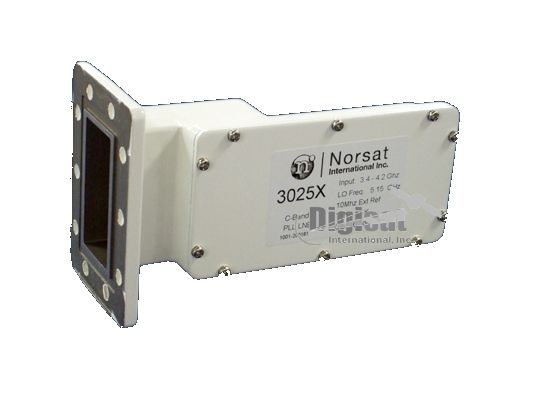

3020XF C-Band Ext Ref LNB
The Norsat 3020XF Series C-Band LNB is externally referenced, operates from 3.40 to 4.20 GHz, and delivers outstanding 20 K noise temperature stability.This externally referenced C-Band Norsat LNB has a precision CPR229 waveguide input and offers phase noise of 1 kHz, 10 kHz, and 100 kHz±5 kHz. Type F connector L-Band RF output.
Norsat 3020XF Ordering Information
Outline Diagram
TYPICAL SPECIFICATIONS
Noise temperature 20 K to 30 K
depending on model number
L.O. stability Phase Locked
to External Reference
Gain Flatness (-40°C to +60°C) 1dBp-p @ 36 MHz
Gain Variation @ Fixed Freq. 6 dBp-p max
(-40°C to +60°C)
Phase noise -70 dBc/Hz at 1 kHz
(SSB) -83 dBc/Hz at 10 kHz
-93 dBc/Hz at 100 kHz
Input VSWR 2.3 : 1
Output VSWR 2.0 : 1
FREQUENCY BANDS AVAILABLE
Input frequency (GHz) 3.40 to 4.20
L.O. frequency (GHz) 5.15
Output frequency (MHz) 950 to 1750
VSAT, Tx/Rx, TVRO
