Norsat 15009LAN Ku-Band (11.70- 12.20 GHz) Commercial VSAT LNB
Phase Locked Loop, Ku-Band- 11.70- 12.20 GHz, 10.75 GHz L.O. Frequency, Output: 950 - 1450 MHz, Type-N Connector RF Output
The Norsat 15009LAN Series Ku-Band LNB provides exceptional RF performance and excellent phase noise characteristics over frequencies ranging from 11.70- 12.20 GHz. The 15009LAN utilizes a 50 Ohm type-N connector for RF output and offers a local oscillator frequency of 10.75 GHz.. This LNB comes standard with a noise figure rating of .9 dBm. RF Waveguide input is WR75.
50 kHz Stability

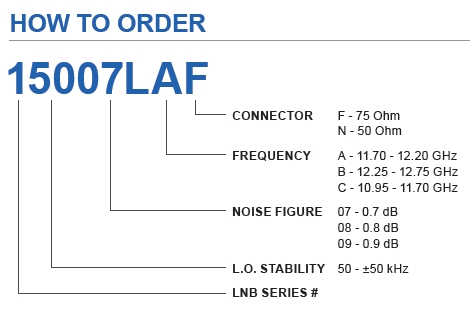

Norsat 15009LAN Series Ordering Information

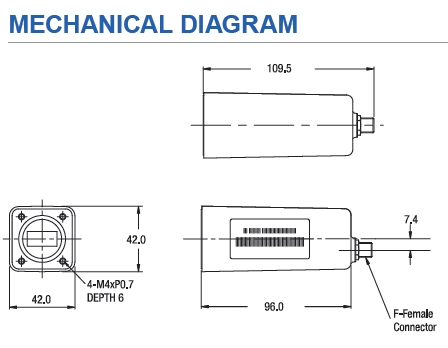

Outline Diagram
TYPICAL SPECIFICATIONS
Noise Figure: 0.7 to 0.9 dB depending on model number
L.O. stability ±50 kHz (over temperature excl offset)
Phase noise -65 dBc/Hz at 1kHz (SSB), -75 dBc/Hz at 10kHz, -85 dBc/Hz at 100kHz
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Conversion gain 62 dB
Output P1dB 6 dBm
Power requirements +15 to +24 V supplied through center conductor of IF cable
Current drain 170 mA
Input Waveguide WR75
Dimensions 110 (L) x 42 (W) x 42 (H) mm, (4.3 x 1.7 x 1.7 in)
Weight 300g / 10.6 oz
Temperature Range -40°C to + 60°C

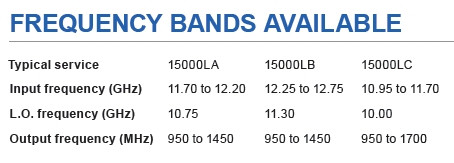

FREQUENCY BANDS AVAILABLE
|
Typical service |
15000LA |
15000LB |
15000LC |
|
Input frequency (GHz) |
11.70 to 12.20 |
12.25 to 12.75 |
10.95 to 11.70 |
|
L.O. frequency (GHz) |
10.75 |
11.30 |
10.00 |
|
Output frequency (MHz) |
950 to 1450 |
950 to 1450 |
950 to 1700 |
