Norsat 1209HBN Ku-Band (12.25- 12.75) VSAT PLL LNB 25 kHz Stability
Phase Lock Looped, Ku-Band- 12.25- 12.75 GHz, 11.30 GHz L.O. Frequency, Output: 950 - 1450 MHz, 25 kHz Stability, .9 dB Noise Figure, L-Band RF Output: Type-N
The Norsat 1209HBN Series Ku-Band LNB provides commercial quality service over frequencies ranging from 12.25- 12.75 GHz. The 1209HBN LNB utilizes a Type-N 50 Ohm connector for RF output and offers a local oscillator frequency of 11.30 GHz. This Norsat LNB also comes standard with a noise figure rating of .9 dBm and features a precision WR75 waveguide RF input.
25 kHz Stability

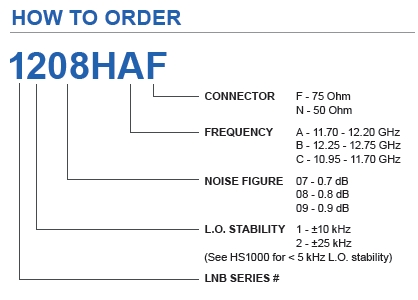

Norsat 1209HB Series Ordering Information

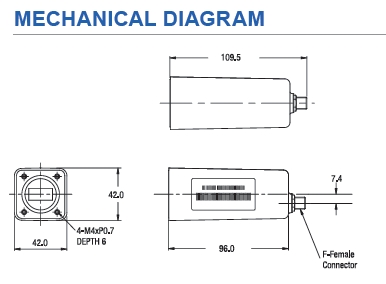

Outline Diagram
TYPICAL SPECIFICATIONS
Noise figure 0.7 to 0.9 dB depending on model number
L.O. stability ±10 kHz to ±25 kHz (over temperature excl. offset) (See HS1000 for < 5 kHz L.O. stability)
Phase noise -75 dBc/Hz at 1 kHz (SSB) -80 dBc/Hz at 10 kHz -95 dBc/Hz at 100 kHz
Input VSWR 2.2 : 1
Output VSWR 2.2 : 1
Conversion gain 60 dB
Output P1dB 5 dBm
Power requirements +15 to +24 V supplied through center conductor of IF cable
Current drain 200 mA
Input Waveguide WR75
Dimensions 110 (L) x 42 (W) x 42 (H) mm (4.3 x 1.7 x 1.7 in)
Weight 300 g / 10.6 oz
Temperature Range -40°C to +60°C

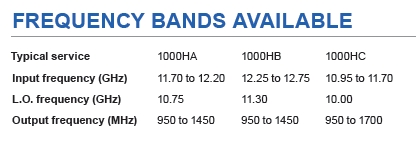

Frequency Bands Available
Typical service 1000HA 1000HB 1000HC
Input frequency (GHz) 11.70 to 12.20 12.25 to 12.75 10.95 to 11.70
L.O. frequency (GHz) 10.75 11.30 10.00
Output frequency (MHz) 950 to 1450 950 to 1450 950 to 1700
Ku-Band VSAT Satellite Communications
