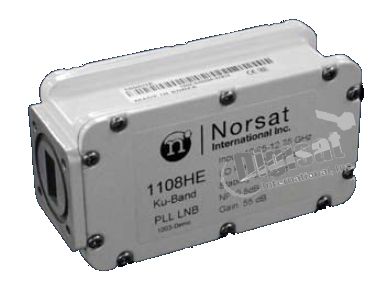

Norsat 1108HEN PLL Ku-Band (10.95- 12.75) Commercial VSAT LNB
Phase Locked Loop, Ku-Band- 10.95- 12.75 GHz, 10.0 GHz L.O. Frequency, Output: 950 - 2750 MHz, RF Output: Type-N Connector
The Norsat 1108HEN Ku-Band LNB provides commercial quality service over frequencies ranging from 10.95 - 12.75 GHz. The 1108HEN series LNB utilizes a 50 Ohm type-N connector for RF output and offers a local oscillator frequency of 10.00 GHz. This LNB also comes standard with a noise figure of .8 dBm and WR75 waveguide input.
Norsat 1108HEN Series Ordering Information
Outline Diagram
TYPICAL SPECIFICATIONS
Noise figure 0.8 dB
L.O. stability ±25 kHz (over temperature excl offset) ±10 kHz
Phase noise -70 dBc/Hz at 1kHz (SSB) -80 dBc/Hz at 10kHz -90 dBc/Hz at 100kHz
Input VSWR 2.5 : 1
Output VSWR 2.2 : 1
Conversion gain 55 dB Output P1dB 5 dBm Power requirements +12 to +24 V supplied through center conductor of IF cable
Current drain 300 mA
Input Waveguide WR75
Dimensions 130 (L) x 60 (W) x 42 (H) mm (5.1 x 2.4 x 1.7 in)
Weight 300g / 10.6 oz
FREQUENCY BANDS AVAILABLE
Typical service 1000HE
Input frequency (GHz) 10.95 to 12.75
L.O. frequency (GHz) 10.0 GHz
Output frequency (MHz) 950 to 2750
Commercial Ku-Band VSAT Satellite Reception
