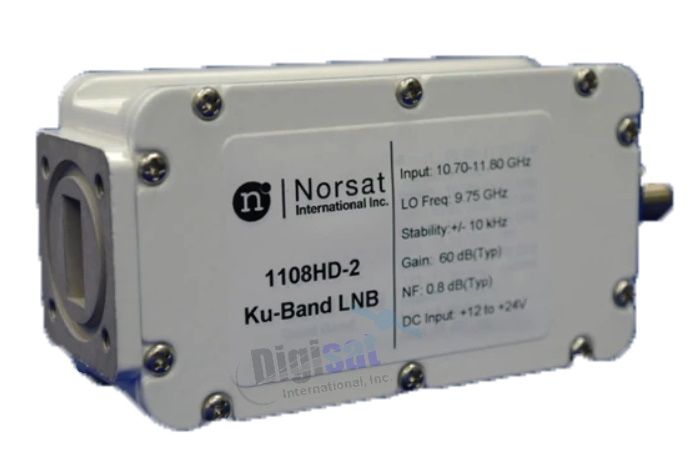

Norsat 1108HD-2 PLL Ku (10.70- 11.80) Single-Band LNB
$363.00
SKU
NST-1108HD-2
Norsat 1108HD-2 PLL Ku (10.70- 11.80) Single-Band LNB is available to buy in increments of 1
Phase Locked Loop, Ku-Band- 10.7- 11.80 GHz, 9.75 GHz L.O. Frequency, Output: 950 - 1450 MHz
The Norsat 1108HD-2 Series Ku-Band LNB provides commercial quality service over frequencies ranging from 10.70- 11.80 GHz. The 1108HD-2 series LNB is available with either type-N output- 1108HDN-2 or type-F connector- 1108HDF-2 and has a local oscillator frequency of 9.75 GHz. This LNB also comes standard with a noise figure of .8 dBm and WR75 waveguide input.
10 kHz Stability

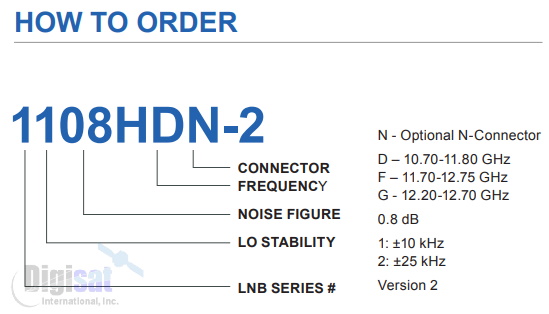

Ordering Information

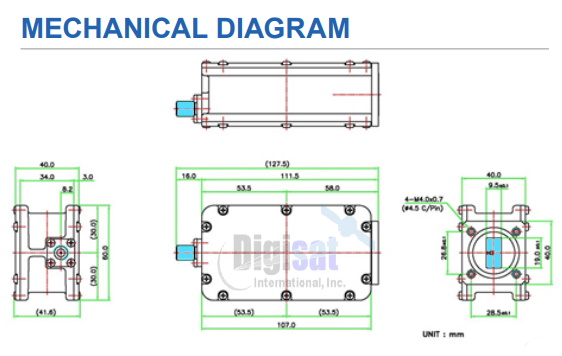

Outline Diagram
KEY SPECIFICATIONS | |
|---|---|
| Band | Ku-Band |
| Input Frequency Band 1 | Ku-Band: 10.70 - 11.80 GHz |
| Lo Stability | +/- 10 kHz |
| Lo Type | PLL |
| Noise Figure | 0.8 dB |
| Output Frequency 1 | L-Band: 950 - 2050 MHz |
| Product Family | 1108HD-2 |
RF | |
|---|---|
| Conversion Gain | 60 dB typ |
| Lo Frequency 1 | 9.75 GHz |
INTERFACE | |
|---|---|
| RF Input Connector | WR-75 waveguide grooved |
| RF Output Connector | F-75 Ohm |
ENVIRONMENTAL | |
|---|---|
| Humidity | 0 - 95% |
| Temperature Operational | -40 to +60°C |
PHYSICAL | |
|---|---|
| Dimensions (LxWxH) | 128 x 60 x 40 mm |
Ku-Band VSAT Satellite Communications
