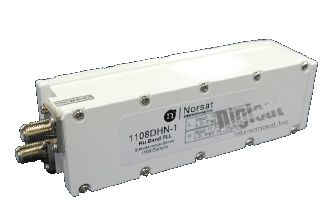

Norsat 1108DHF-1 PLL Simultaneous Frequencies Ku-Band PLL LNB
Simultaneous Ku-Band- 11.7 - 12.75 GHz, 10.7 - 11.7 GHz, 9.75 & 10.75 GHz L.O. Frequency, Output: 950 - 1950 MHz & 950 - 2000 MHz, RF Output: (2) F-Type
The Norsat 1108DHF-1 Series LNB provides simultaneous reception of two Ku-Bands, High Band 11.7 - 12.75, Low Band 10.7 - 11.7 GHz. The 1108 series LNB utilizes (2) 75 Ohm F-Type connector RF outputs, and offers (2) local oscillator frequencies of 9.75 GHz and 10.75 GHz. This LNB comes standard with a noise figure of .8 dBm and a WR75 waveguide input.
Norsat 1108DHF-1 Series Ordering Information
Outline Diagram
Installation Configuration
TYPICAL SPECIFICATIONS
Noise Figure 0.8 dBm
LO Stability ± 10 kHz to ± 25 kHz
LO Phase Noise -75 dBc at 1 kHz
-85 dBc at 10 kHz
-95 dBc at 100 kHz
Gain 55 dB
P1dB +6 dBm
DC Power 18 V
Current 300 mA
Input Waveguide WR-75
Output F-connector (75 ohm)
N (Optional) (50 ohm)
Dimensions 150 x 42 x 40 (L x W x H)
Weight 300 g
Operating Temperature -40 - +60'C
FREQUENCY BANDS AVAILABLE
Band 1 Band 2
Frequency Band L 10.7 ~ 11.7 GHz 10.95 ~ 11.7 GHz
(RF Input) H 11.7 ~ 12.75 GHz 11.7 ~ 12.75 GHz
LO Frequency L 9.75 GHz 10.00 GHz
H 10.75 GHz 10.75 GHz
IF Frequency 950 ~ 1950 MHz 950 ~ 1700 MHz
950 ~ 2000 MHz 950 ~ 2000 MHz
Simultaneous Ku-Band Satellite Reception
