Norsat 1008XUN Quad-Band Ku (10.70- 12.75 GHz) Ultra High Stability VSAT LNB
Phase Locked to External Reference, Quad Ku-Band- 10.70 to 12.75 GHz, 60 dB Gain, Type-N Connector Output

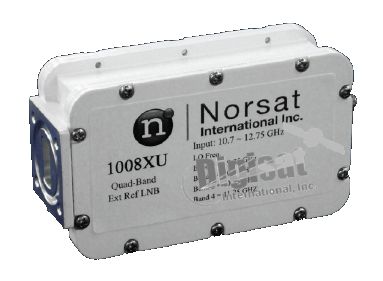

The Norsat 1008XUN Quad-Band Ku-Band LNB provides excellent RF performance and superb phase noise characteristics over Ku-Band frequencies from 10.70- 12.75 GHz. The 1008XU series externally referenced LNBs are available with a type-F connector- 1008XUF or Type-N connector- 1008XUN and offer four local oscillator frequencies depending on which ku-band frequency band is utilized. These L.O. frequencies are as follows: 9.75, 10.00, 10.75, and 11.25 GHz. This highly versatile LNB comes standard with a noise figure rating of .8 dBm. RF Waveguide input is WR75.
L.O. Stability is Phase Locked to External Reference

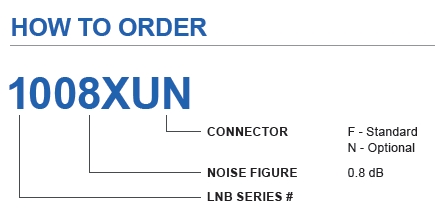

Norsat 1008XUN Series Ordering Information

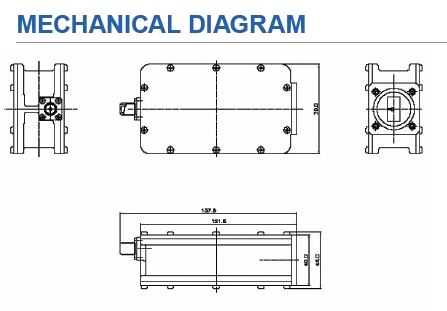

Mechanical Outline Diagram
The 1008XUN is ideal for mobile VSAT systems and Maritime VSAT Satellite Internet antenna systems that move from one satellite transponder to another over multiple global regions. The 1008XU Series LNB alleviates the hassle of manually swapping LNBs when service is moved from one satellite to another on different frequency bands.
TYPICAL SPECIFICATIONS
Noise Figure: .8 dB
LO stability: Phase locked to External Reference
LO Phase noise: -73 dBc at 1 kHz, -78 dBc at 10 kHz, -100 dBc at 100 kHz, -110 dBc at 1 MHz
Gain: 60 dB
Output P1dB: +15 dBm
DC Power: Band 1 13 V, Band 2 13 V / 22 KHz Tone, Band 3 18 V, Band 4 18 V / 22 KHz Tone
Current: 350 mA
Specs for Tone: Freq 22 kHz ±4 kHz
Amp: 0.6 ±0.2 V
Duty Cycle: 50% ±10%
Input Waveguide: WR-75
Output: (waterproof) F-connector (75 ohm), Type-N (Optional) (50 ohm)
Dimensions: 138 x 70 x 44 (L x W x H)
Weight: 300 g
Operating Temperature: -30 to +60C
Storage Temperature: -40 to +80C
External Ref Freq: 10 MHz (sine-wave), -10 to 0 dBm

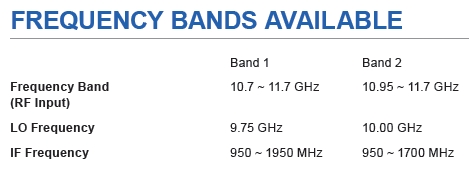

QUAD-BAND KU FREQUENCY BANDS
|
|
Band 1 |
Band 2 |
Band 3 |
Band 4 |
|
Frequency Band (RF Input) |
10.7 ~ 11.7 GHz |
10.95 ~ 11.7 GHz |
11.7 ~ 12.75 GHz |
12.20 ~ 12.75 GHz |
|
LO Frequency |
9.75 GHz |
10.00 GHz |
10.75 GHz |
11.25 GHz |
|
IF Frequency |
950 ~ 1950 MHz |
950 ~ 1700 MHz |
950 ~ 2000 MHz |
950 ~ 1500 MHz |
Maritime, Video Broadcast reception, TVRO services, Mobile & Transportable VSAT Antenna Systems
