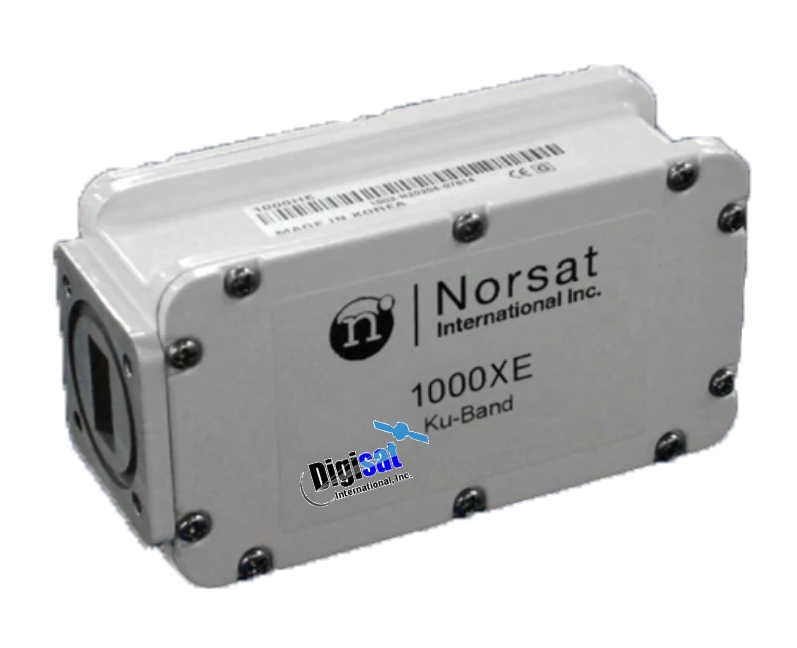

Norsat 1008XE Ku (10.95- 12.75 GHz) Wideband PLL Ext Reference LNB
$2,090.00
SKU
NST-1008XE
Norsat 1008XE Ku (10.95- 12.75 GHz) Wideband PLL Ext Reference LNB is available to buy in increments of 1
PLL, Externally Referenced, 10.95 TO 12.75 GHz, L.O. Frequency: 10.0, RF Output: F-connector or Type-N
The Norsat 1008XE Series Ku-Band LNB provides excellent performance for Ku Satellite reception in frequencies ranging from 10.95-12.75 GHz. The 1008XE LNB features either a 75 Ohm F-connector or Type-N RF output with a local oscillator frequency of 10.0 GHz and noise figure rating of .8 dBm. WR75 waveguide RF input, Phase Locked to External Reference.

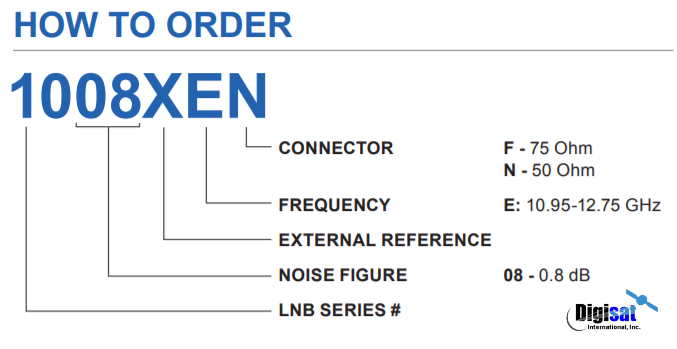

Ordering Information

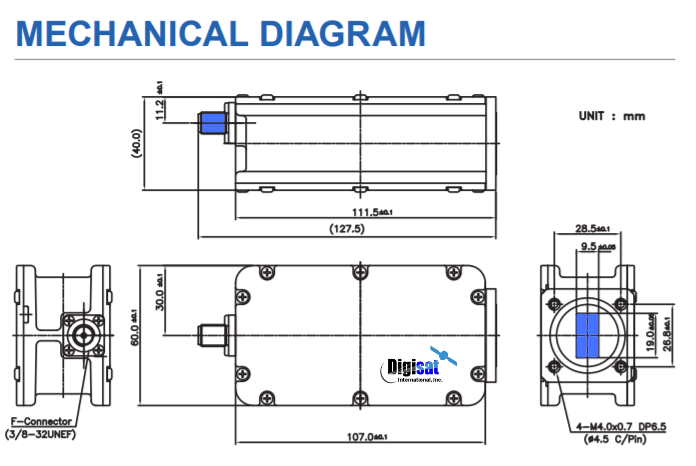

Outline Diagram
KEY SPECIFICATIONS | |
|---|---|
| Band | Ku-Band |
| Input Frequency Band 1 | Ku-Band: 10.95 - 12.75 GHz |
| Lo Stability | Phase Locked to External Reference at 10MHz |
| Lo Type | External |
| Noise Figure | 0.8 dB |
| Output Frequency 1 | L-Band: 950 - 2750 MHz |
| Product Family | 1008XEF |
RF | |
|---|---|
| Conversion Gain | 55 dB typ |
| Input VSWR | 2.5 : 1 |
| Lo Frequency 1 | 10.00 GHz |
| Output VSWR | 2.2 : 1 |
INTERFACE | |
|---|---|
| RF Input Connector | WR-75 waveguide grooved |
| RF Output Connector | F-75 Ohm |
ENVIRONMENTAL | |
|---|---|
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -40 to +80°C |
PHYSICAL | |
|---|---|
| Dimensions (LxWxH) | 130 x 60 x 42 mm |
Ku-Band Satellite Signal Reception, TVRO, Broadband Internet Systems
