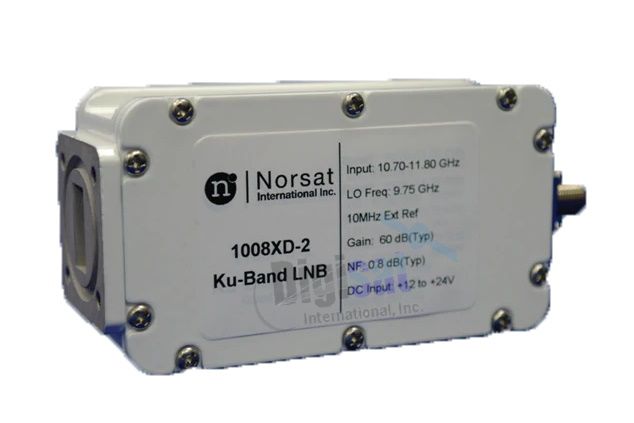

Norsat 1008XDN-2 Ku-Band (10.7- 11.80 GHz) PLL Ext Reference LNB Type-N
$660.00
SKU
NST-1008XDN-2
Norsat 1008XDN-2 Ku-Band (10.7- 11.80 GHz) PLL Ext Reference LNB Type-N is available to buy in increments of 1
PLL, Externally Referenced, 10.7 TO 11.80 GHz, L.O. Frequency: 9.75, RF Output: Type-N
The Norsat 1008XDN-2 Series Ku-Band LNB provides excellent performance for Ku Satellite reception in frequencies ranging from 10.7-11.8 GHz. The 10008XDN-2 LNB features a Type-N connector RF output with a local oscillator frequency of 9.75 GHz and noise figure rating of .8 dBm. WR75 waveguide RF input, Phase Locked to External Reference.
Ordering Information
Outline Diagram
KEY SPECIFICATIONS | |
|---|---|
| Band | Ku-Band |
| Input Frequency Band 1 | Ku-Band: 10.70 - 11.80 GHz |
| Lo Stability | Phase Locked to External Reference at 10MHz |
| Lo Type | External |
| Noise Figure | 0.8 dB |
| Output Frequency 1 | L-Band: 950 - 2050 MHz |
| Product Family | 1008XDN-2 |
RF | |
|---|---|
| Conversion Gain | 60 dB typ |
| Lo Frequency 1 | 9.75 GHz |
INTERFACE | |
|---|---|
| RF Input Connector | WR-75 waveguide grooved |
| RF Output Connector | N-50 Ohm |
ENVIRONMENTAL | |
|---|---|
| Humidity | 0 - 95% |
| Temperature Operational | -40 to +60°C |
PHYSICAL | |
|---|---|
| Dimensions (LxWxH) | 128 x 60 x 40 mm |
Ku-Band Satellite Signal Reception, TVRO, Broadband Internet Systems
