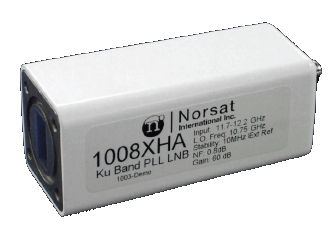

Norsat 1007XHAF Ku-Band (11.7- 12.2 GHz) Compact Ext Reference LNB F Connector
PLL, Externally Referenced, 11.7 TO 12.2 GHz, L.O. Frequency: 10.75, RF Output: F Connector
The Norsat 1007XHAF Series Ku-Band LNB provides excellent performance for Ku Satellite reception from 11.7- 12.2 GHz. The 10007XHAF LNB features a Type F connector RF output with a local oscillator frequency of 10.75 GHz and noise figure rating of .7 dBm. WR75 waveguide RF input, Phase Locked to External Reference.
Norsat 1000XH Series Ordering Information
Outline Diagram
TYPICAL SPECIFICATIONS
Noise Figure 0.7 to 0.9 dB depending on model
L.O. stability Phase Locked to External Reference
Gain Flatness (-40°C to +60°C) 1.5dBp-p @ over 27 MHz
4dBp-p @ over 500 MHz
Gain Variation @ Fixed Freq. 6 dBp-p max (-40°C to +60°C)
Phase noise -75 dBc / Hz at 1 kHz (SSB) -85 dBc / Hz at 10 kHz -95 dBc / Hz at 100 kHz
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Conversion gain 60 dB
Output P1dB 8 dBm
Power requirements +15 to +24 V supplied through center conductor of IF cable
Current drain 200 mA
Input Waveguide WR75
Dimensions 110 (L) x 42 (W) x 42 (H) mm (4.3 x 1.7 x 1.7 in)
Weight 300g / 10.6 oz
External Ref Frequency 10MHz (sine-wave), -10 to 0 dBm
Temperature Range -40C to +60C
Frequency Bands Available
|
Typical service |
1000XHA |
1000XHB |
1000XHC |
|
Input frequency (GHz) |
11.70 to 12.20 |
12.25 to 12.75 |
10.95 to 11.70 |
|
L.O. frequency (GHz) |
10.75 |
11.30 |
10.00 |
|
Output frequency (MHz) |
950 to 1450 |
950 to 1450 |
950 to 1700 |
Ku-Band Satellite Signal Reception, TVRO, Broadband Internet Systems
