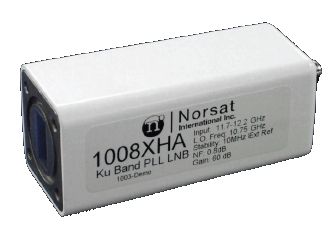

Norsat 1000XHA Ku-Band (11.7- 12.2 GHz) External Reference LNB
External Referenced, 11.7 TO 12.2 GHz, L.O. Frequency: 10.75, RF Output: Type-F or Type-N
The Norsat 1000XHA Series Ku-Band LNB provides excellent performance for Ku Satellite reception from 11.7- 12.2 GHz. This LNB also features two options for RF Output connectors- Type-N and F-connector. Local oscillator frequency is 10.75 GHz and three noise figure ratings of .7, .8, and .9 dBm are available. WR75 waveguide RF input, Phase Locked to External Reference.
Norsat 1000XH Series Ordering Information
Outline Diagram
TYPICAL SPECIFICATIONS
Noise Figure 0.7 to 0.9 dB depending on model
L.O. stability Phase Locked to External Reference
Gain Flatness (-40°C to +60°C) 1.5dBp-p @ over 27 MHz
4dBp-p @ over 500 MHz
Gain Variation @ Fixed Freq. 6 dBp-p max (-40°C to +60°C)
Phase noise -75 dBc / Hz at 1 kHz (SSB) -85 dBc / Hz at 10 kHz -95 dBc / Hz at 100 kHz
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Conversion gain 60 dB
Output P1dB 8 dBm
Power requirements +15 to +24 V supplied through center conductor of IF cable
Current drain 200 mA
Input Waveguide WR75
Dimensions 110 (L) x 42 (W) x 42 (H) mm (4.3 x 1.7 x 1.7 in)
Weight 300g / 10.6 oz
External Ref Frequency 10MHz (sine-wave), -10 to 0 dBm
Temperature Range -40C to +60C
Frequency Bands Available
|
Typical service |
1000XHA |
1000XHB |
1000XHC |
|
Input frequency (GHz) |
11.70 to 12.20 |
12.25 to 12.75 |
10.95 to 11.70 |
|
L.O. frequency (GHz) |
10.75 |
11.30 |
10.00 |
|
Output frequency (MHz) |
950 to 1450 |
950 to 1450 |
950 to 1700 |
Ku-Band Satellite Signal Reception, TVRO, Broadband Internet Systems
