New Japan Radio NJT8302UN 3 Watt Ku-Band (13.75 to 14.5 GHz) Block Upconverter (BUC)
Operates in Ku-band frequencies from 13.75 to 14.5 GHz, Type-N connector input

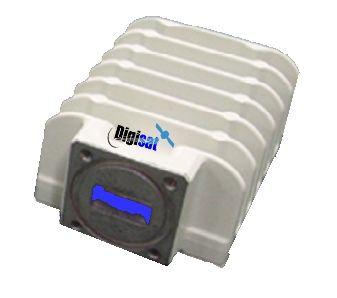

NJRC NJT8302UN 3W Ku-Band (13.75 to 14.5 GHz) Block Upconverter (BUC)
The NJRC NJT8302UN series BUC is an compact outdoor block upconverter that provides up to +34.0 dBM (3 Watts) of Linear RF output power for use on Ku-band satellite networks (13.75 to 14.5 GHz).. This compact 3 Watt Ku-Band BUC offers easy installation and setup as well as reliable long term operation in harsh environments.
RF Input
Type-N
IF Frequency
950 - 1700 MHz
Local Oscillator
12.8 GHz
Features
High Efficiency Output Power (P1dB):
+34.0 dBm min. over temperature
Lower Power Consumption
Small Size & Light Weight
LED Indicator Equipped
RoHS Compliance
NJT8302 vs. NJT5116 Comparison
Outline Dimensions
Configuration Chart
|
Model# |
RF Frequency |
Local Frequency |
IF Frequency |
Output Power @P1dB |
IF Connector |
|
NJT8302UN |
13.75 to 14.5 GHz (Universal Ku-band) |
12.8 GHz |
950 to 1,700 MHz |
3W Linear (+34 dBm min.) |
N-type |
|
NJT8302UF |
13.75 to 14.5 GHz (Universal Ku-band) |
12.8 GHz |
950 to 1,700 MHz |
3W Linear (+36 dBm min.) |
F-type |
|
NJT8302N |
14.0 to 14.5 GHz (Standard Ku-band) |
13.05 GHz |
950 to 1,450 MHz |
3W Linear (+36 dBm min.) |
N-type |
|
NJT8302F |
14.0 to 14.5 GHz (Standard Ku-band) |
13.05 GHz |
950 to 1,450 MHz |
3W Linear (+36 dBm min.) |
F-type |
|
Item |
Specifications |
|
Output Interface |
Waveguide, WR75 (with Groove) |
|
Input Interface |
N-type, female (50 ohm)[Model No.: NJT8302N & NJT8302UN] |
|
F-type, female (75 ohm)[Model No.: NJT8302F & NJT8302UF] |
|
|
Output Power @ 1dB G.C.P. |
+34 dBm min. over temperature |
|
Linear Gain |
58 dB typ., 51 dB min. |
|
Power Requirement |
+24 VDC (Range: +12 to +30 VDC) |
|
Power Consumption |
18 W typ., 23 W max |
|
Weight |
350 g [0.77 lbs] |
Ku-Band Satellite Networks, VSAT systems, Maritime Communications, Satellite Internet Access Services
