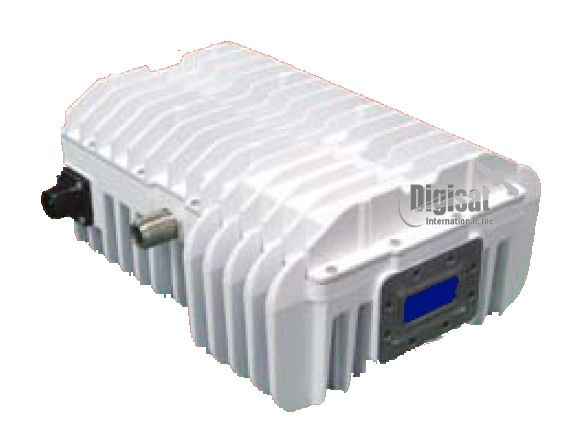

New Japan Radio NJRC NJT5762N 10W C-Band (5.85 to 6.425 GHz) Block Upconverter (BUC)
Standard C-Band Operation from 5.85 to 6.425 GHz, 40dBm RF Output Power, RF input: 950 to 1525 MHz, Typ-N connector RF input
NJT5762N 10W C-Band Block Upconverter
The NJT5762N series BUC provides +40 dBm of highly efficient RF output power over 5.85 to 6.425 (standard C-Band) frequency ranges. This NJRC 10W C-Band BUC offers easy installation and operation, as well as exceptional reliability and RF performance, all at a very cost effective price point.
Features
High Efficiency Output Power: P1dB: +40 dBm min. over temperature
Low Power Consumption: Power Consumption: 48 W
Small Size & Light Weight: Weight: 1.9 kg
LED Indicator
RoHS Compliance
FSK Communications for Monitor & Control
The NJT5762N series C-Band BUCs also feature built-in FSK communications for communicating with satellite modems, IDU's and iDirect satellite internet routers. The RF signal of the Monitor and Control is multiplexed onto the IF coaxial cable with the IF signal, 10 MHz reference, and DC power between the BUC and the IDU. The M&C implements commands to control BUC functions and to query the BUC for configuration or status information.
5762N Series Frequency Chart
Type N Dimensions
BUC Packaging
|
Output Interface |
Waveguide, CPR 137 with Groove |
|
Input Interface |
Coax. Connector, N-type female ( 50 ohm ) / F-type female ( 75 ohm ) |
|
Output Power @ 1 dB G.C.P. |
+40 dBm min. over temperature : ( 10W ) NJT5762 / NJT5763 series |
|
|
+39 dBm min. over temperature : ( 8W ) NJT5760 / NJT5761 series |
|
Conversion Gain |
64 dB nom., 58 dB min. : ( 10W ) NJT5762 / NJT5763 series |
|
|
63 dB nom., 57 dB min. : ( 8W ) NJT5760 / NJT5761 series |
|
Requirement External |
Input Port: IF Connector ( combine reference with IF signal ) |
|
Reference Signal |
Frequency: 10 MHz ( sine-wave ) Input Power: -5 to +5 dBm |
|
|
Phase Noise: -125 dBc/Hz @100Hz -135 dBc/Hz @1kHz -140 dBc/Hz @10kHz |
|
Phase Noise ( SSB ) |
-60 dBc/Hz @100Hz -70 dBc/Hz @1kHz -80 dBc/Hz @10kHz |
|
|
-90 dBc/Hz @100kHz -100 dBc/Hz @1MHz |
|
Input V.S.W.R. |
2.0 : 1 max. @ IF Frequency |
|
Output V.S.W.R. |
2.0 : 1 max. @ RF Frequency |
|
Power Requirement |
+18 to +60 VDC at BUC Input Port |
|
|
90 to 264 VAC at Indoor AC/DC PSU: ( AC Power Option ) NJT5760NA / 60FA / 61NA / 60FA / 62NA / 62FA / 63NA / 63FA |
|
Power Consumption |
69 W typ., 75 W max. : ( 10W / Standard C-band ) NJT5762 series |
|
|
75 W typ., 85 W max. : ( 10W / Full C-band ) NJT5763 series |
|
|
63 W typ., 70W max. : ( 8W / Standard C-band ) NJT5760 series |
|
|
64 W typ., 70 W max. : ( 8W / Full C-band ) NJT5761 series |
|
Port for Voltage Input |
Same as IF Connector : NJT5760N / 60F / 60KN / 60KF / 61N / 61F / 61KN / 61KF / 62N / 62F / 62KN / 62KF / 63N / 63F / 63KN / 63KF |
|
|
MS Connector : NJT5760NM / 60FM / 60KNM / 60KFM / 61NM / 61FM / 61KNM / 61KFM, |
|
|
NJT5762NM / 62FM / 62KNM / 62KFM / 63NM / 63FM / 63KNM / 63KFM |
|
|
IF Connector supplied by Indoor AC/DC PSU through IF Cable : NJT5760NA / 60FA / 61NA / 60FA / 62NA / 62FA / 63NA / 63FA |
|
Temperature Range ( ambient ) |
Operating : -40 to +55 °C Storage : -40 to +75 °C |
|
Dimension |
(L) 219.5 x (W) 175 x (H) 99 mm |
|
( without Interface Connector ) |
[ (L) 8.64" x (W) 6.89" x (H) 3.90" ] |
|
Weight |
3.2 kg [ 7.0 lbs ] |
C-Band applications, VOIP, Remote VSAT sites, SCADA, M2M, Maritime communications, VSAT Networks
