New Japan Radio NJRC NJT5127F 6 Watt Ku-Band (14.00 to 14.5 GHz) Block Upconverter (BUC)
Operates in Ku-band frequencies from 14.00 to 14.5 GHz, F-connector RF input

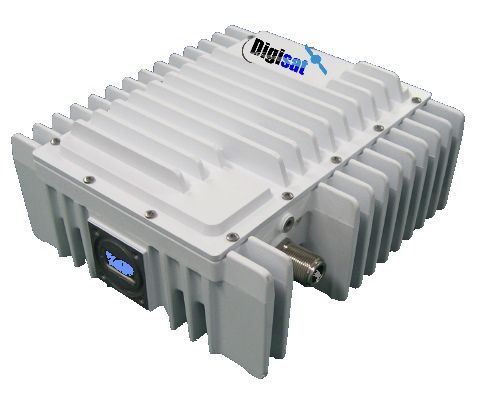

NJT5127F 6 Watt Ku-Band (14.00 to 14.5 GHz) Block Upconverter (BUC)
The New Japan Radio NJRC NJT5127F series BUC is an compact outdoor block upconverter that provides up to +37.8 dBM (6 Watts) of Linear RF output power for use on Ku-band satellite networks (14.00 to 14.5 GHz). This compact 6W Ku-Band BUC offers easy installation and setup on all VSAT antennas.
Features
High Efficiency Output Power (P1dB):
F-Connector RF Input
+37.8 dBm min. over temperature
Lower Power Consumption
Small Size & Light Weight
LED Indicator Equipped
RoHS Compliance
Outline Dimensions
Configuration Chart
|
Model# |
RF Frequency |
Local Frequency |
IF Frequency |
Output Power @P1dB |
IF Connector |
Power Supply |
LED Indicator |
|
NJT5127 |
14.0 to 14.5 GHz (Standard C-band) |
13.05 GHz |
950 to 1,450 MHz |
6W Linear (+37.8 dBm min.) |
N-type |
+24 VDC (+15 to +24 VDC) |
N/A |
|
NJT5127F |
14.0 to 14.5 GHz (Standard C-band) |
13.05 GHz |
950 to 1,450 MHz |
6W Linear (+37.8 dBm min.) |
F-type |
+24 VDC (+15 to +24 VDC) |
N/A |
|
NJT5127L |
14.0 to 14.5 GHz (Standard C-band) |
13.05 GHz |
950 to 1,450 MHz |
6W Linear (+37.8 dBm min.) |
N-type |
+24 VDC (+15 to +24 VDC) |
Equipped |
|
NJT5127FL |
14.0 to 14.5 GHz (Standard C-band) |
13.05 GHz |
950 to 1,450 MHz |
6W Linear (+37.8 dBm min.) |
F-type |
+24 VDC (+15 to +24 VDC) |
Equipped |
|
Item |
Specifications |
|
Output Interface |
Waveguide, WR75 (with Groove) |
|
Input Interface |
N-type, female (50 ohm)[Model No.: NJT5127/27L] |
|
F-type, female (75 ohm)[Model No.: NJT5127F/27FL] |
|
|
Output Power @ 1dB G.C.P. |
+37.8 dBm min. over temperature |
|
Linear Gain |
56 dB nom. |
|
Power Requirement |
+24 VDC (+15 to +24 VDC) |
|
Power Consumption |
63 W max. |
|
Weight |
2.4 kg [5.3 lbs] |
Ku-Band Satellite Networks, VSAT systems, Maritime Communications, Satellite Internet Access Services
