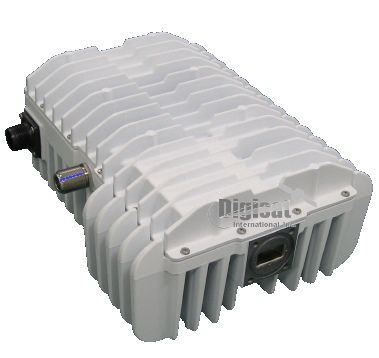

New Japan Radio NJRC NJT5118NA 8 Watt Ku-Band (14.0 to 14.5 GHz) Block Upconverter (BUC)
External AC/DC PSU, Type-N, covers Ku-band frequencies from 14.00 to 14.5 GHz in respective configurations
NJT5118NA 8 Watt Ku-Band (14.0 to 14.5 GHz) Block Upconverter (BUC)
The NJRC NJT5118NA series BUC is an compact outdoor block upconverter that provides up to +39 dBM (8 Watts) of Linear RF output power for use on Ku-band satellite networks (14.00 to 14.5 GHz).. This compact 8W Ku-Band BUC offers easy installation and setup. The NJT5118NA also includes provisions for a separate AC power supply that accepts input voltages from 90V to 240 VAC.
Features
Ku-band Coverage: RF Frequency: 13.75 to 14.50 GHz
DC Power supplied by AC/DC PSU
Type-N connector RF Input
High Efficiency & Low Distortion: P1dB: +39 dBm min. over temperature, IM3:-28 dBc @ Pout = +36 dBm, Power Consumption: 79W
Wider Input Voltage Range: Voltage Range: +18 to +60 VDC
AC Power Operating Option
Compact Size & Light Weight: Weight: 3.2 kg
LED Indicator Equipped
RoHS Compliance
Comparison Sheet
Outline Dimensions
Configuration Chart
|
Model# |
RF Frequency |
Local Frequency |
IF Frequency |
Output Power @P1dB |
IF Connector |
Power Supply |
|
NJT5118N |
14.0 to 14.5 GHz (Standard Ku-band) |
13.05 GHz |
950 to 1,450 MHz |
8W Linear (+39 dBm min.) |
N-type |
DC Power applied on IF Connector |
|
NJT5118F |
14.0 to 14.5 GHz (Standard Ku-band) |
13.05 GHz |
950 to 1,450 MHz |
8W Linear (+39 dBm min.) |
F-type |
DC Power applied on IF Connector |
|
NJT5118NM |
14.0 to 14.5 GHz (Standard Ku-band) |
13.05 GHz |
950 to 1,450 MHz |
8W Linear (+39 dBm min.) |
N-type |
DC Power applied on MS Connector |
|
NJT5118FM |
14.0 to 14.5 GHz (Standard Ku-band) |
13.05 GHz |
950 to 1,450 MHz |
8W Linear (+39 dBm min.) |
F-type |
DC Power applied on MS Connector |
|
NJT5118NA |
14.0 to 14.5 GHz (Standard Ku-band) |
13.05 GHz |
950 to 1,450 MHz |
8W Linear (+39 dBm min.) |
N-type |
DC Power supplied by AC/DC PSU |
|
NJT5118FA |
14.0 to 14.5 GHz (Standard Ku-band) |
13.05 GHz |
950 to 1,450 MHz |
8W Linear (+39 dBm min.) |
F-type |
DC Power supplied by AC/DC PSU |
|
NJT5218N |
13.75 to 14.5 GHz (Universal Ku-band) |
12.8 GHz |
950 to 1,700 MHz |
8W Linear (+39 dBm min.) |
N-type |
DC Power applied on IF Connector |
|
NJT5218F |
13.75 to 14.5 GHz (Universal Ku-band) |
12.8 GHz |
950 to 1,700 MHz |
8W Linear (+39 dBm min.) |
F-type |
DC Power applied on IF Connector |
|
NJT5218NM |
13.75 to 14.5 GHz (Universal Ku-band) |
12.8 GHz |
950 to 1,700 MHz |
8W Linear (+39 dBm min.) |
N-type |
DC Power applied on MS Connector |
|
NJT5218FM |
13.75 to 14.5 GHz (Universal Ku-band) |
12.8 GHz |
950 to 1,700 MHz |
8W Linear (+39 dBm min.) |
F-type |
DC Power applied on MS Connector |
|
NJT5218NA |
13.75 to 14.5 GHz (Universal Ku-band) |
12.8 GHz |
950 to 1,700 MHz |
8W Linear (+39 dBm min.) |
N-type |
DC Power supplied by AC/DC PSU |
|
NJT5218FA |
13.75 to 14.5 GHz (Universal Ku-band) |
12.8 GHz |
950 to 1,700 MHz |
8W Linear (+39 dBm min.) |
F-type |
DC Power supplied by AC/DC PSU |
|
Item |
Specifications |
|
Output Interface |
Waveguide, WR75 (with Groove) |
|
Input Interface |
N-type, female (50 ohm)[Model No.: NJT5118N/18NM/18NA - NJT5218N/18NM/18NA] |
|
F-type, female (75 ohm)[Model No.: NJT5118F/18FM/18FA - NJT5218F/18FM/18FA] |
|
|
Output Power @ 1dB G.C.P. |
+39 dBm min. over temperature |
|
Linear Gain |
59 dB min. |
|
Power Requirement |
+24 / +48 VDC (+18 to +60 VDC) [DC Power Oparating][Model No.: NJT5118N/18F/18NM/18FM - NJT5218N/18F/18NM/18FM] |
|
90 to 264 VAC [AC Power Oparating][Model No.: NJT5118NA/18FA - NJT5218NA/18FA] |
|
|
Power Consumption |
79 W typ., 93 W max. |
|
Port for Voltage Input |
Same as IF Connector[Model No.: NJT5118N/18F - NJT5218N/18F] |
|
MS Connector (Separate Port)[Model No.: NJT5118NM/18FM - NJT5218NM/18FM] |
|
|
IF Connector supplied by 150W AC/DC PSU throught IF Cable[Model No.: NJT5118NA/18FA - NJT5218NA/18FA] |
|
|
Weight |
3.2 kg [7.0 lbs] |
Ku-Band Satellite Networks, VSAT systems, Maritime Communications, Satellite Internet Access Services
