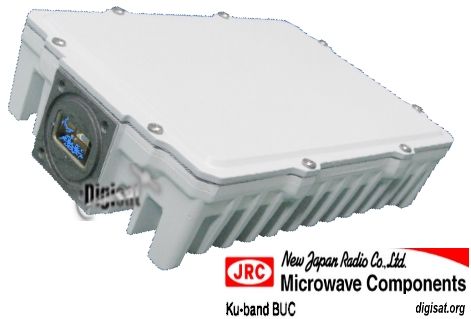

New Japan Radio NJRC NJT5116F 3 Watt Ku-Band (14.00 to 14.50 GHz) Block Upconverter (BUC)
Operates in Ku-band frequencies from 14.00 to 14.50 GHz, F-Type connector input, L.O. 13.05 GHz
NJRC NJT5116F 3 Watt Ku-Band (14.00 to 14.50 GHz) Block Upconverter (BUC)
The NJRC NJT5116F series BUC is a compact outdoor block upconverter that provides up to +34.0 dBM (3 Watts) of Linear RF output power for use on Ku-band satellite networks (14.0 to 14.5 GHz). This compact 3W Ku-Band BUC offers easy installation and setup.
Features
"F" connector RF input
Local Oscillator 13.05 GHz
High Efficiency Output Power (P1dB):
Type F-connector or Type-N RF Input
+34.0 dBm min. over temperature
Lower Power Consumption
Small Size & Light Weight
LED Indicator Equipped
RoHS Compliance
Outline Dimensions
Configuration Chart
|
Model No. |
RF |
Local |
IF |
Output Power |
IF |
|
NJT5116N |
14.00 to 14.50 GHz |
13.05 GHz |
950 to |
3W Linear |
N-type |
|
NJT5116F |
F-type |
||||
|
NJT5097 |
13.75 to 14.25 GHz |
12.80 GHz |
950 to |
3W Linear |
N-type |
|
NJT5097F |
F-type |
|
Output Interface |
Waveguide, WR75 (with Groove) |
|
|
Input Interface |
N-type, female (50 ohm) [Model No.: NJT5116N] |
|
|
F-type, female (75 ohm) [Model No.: NJT5116F] |
||
|
Output Power @ 1 dB G.C.P. |
+34.5 dBm min. @ +25 C +34.0 dBm min. over temperature |
|
|
Linear Gain |
55 dB typ., 51 dB min. |
|
|
ACPR Compliance with IESS308 / SSOG |
-26 dBc max. @ Pout = +33.5 dBm |
|
|
Requirement for External Reference |
[Frequency] |
10 MHz (sine-wave) |
|
[Input Power] |
-5 to +5 dBm @ Input port |
|
|
[Phase Noise] |
-125 dBc/Hz max. @ 100 Hz |
|
|
-135 dBc/Hz max. @ 1 kHz |
||
|
-140 dBc/Hz max. @ 10 kHz |
||
|
L.O. Phase Noise |
-60 dBc/Hz max. @ 100 Hz |
|
|
-70 dBc/Hz max. @ 1 kHz |
||
|
-80 dBc/Hz max. @ 10 kHz |
||
|
-90 dBc/Hz max. @ 100 kHz |
||
|
Receive Band Noise Density |
-110 dBm/50kHz max. @10.95 to 12.75 GHz |
|
|
Input V.S.W.R. |
2.0 : 1 max. |
|
|
Output V.S.W.R. |
2.0 : 1 max. |
|
|
Power Requirement |
+24 VDC (+15 to +30 VDC) |
|
|
Power Consumption |
31 W max. |
|
|
Mute |
Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal. |
|
|
Temperature Range (ambient) |
-40 to +55 C (operating), -40 to +75 C (storage) |
|
|
Dimension & Housing ( without Interface Connectors) |
172.9 mm (L) x 119 mm (W) x 44.5 mm (H) |
|
|
[6.81" (L) x 4.69" (W) x 1.75" (H)] |
||
|
Weight |
1.2 kg [2.6 lbs] |
|
Ku-Band Satellite Internet service access, VSAT satellite systems, Maritime Communications, Satellite IP, remote communications
