NJRC NJR2841LN Universal 2LO Switchable Ku-Band PLL LNB (10.7 -12.75 GHz) +/- 50 ppm Type-N
Login To See Price
SKU
NJR2841LN
NJRC NJR2841LN Universal 2LO Switchable Ku-Band PLL LNB (10.7 -12.75 GHz) +/- 50 ppm Type-N is available to buy in increments of 1
Switch by mechanical switch, Int Ref (LO Stab +/-50 ppm), Complete Ku-Band Coverage, Type-N Female RF connector

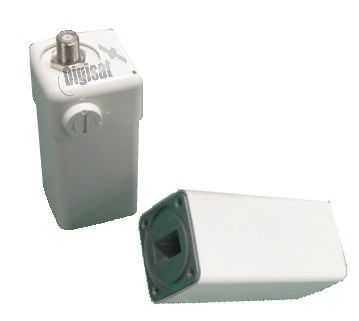

NJR2841LN Dual LO Switching PLL LNB
New Japan Radio NJRC NJR2841LN 2LO PLL LNB +/- 50 ppm (10.7 to 11.7 GHz / 11.7 to 12.75 GHz) Switchable Local Frequency: 9.75 / 10.6 GHz via mechanical switch, complete Ku frequency coverage, Internal Reference, Type-N Connector.
NJR2841LN Features
Switch by mechanical switch
Int Reference (LO Stability +/-50 ppm)
Complete Ku-Band Coverage
Type-N female connector
RF Frequency - Universal Ku-band: 10.70-12.75GHz
Mechanical LO Switch

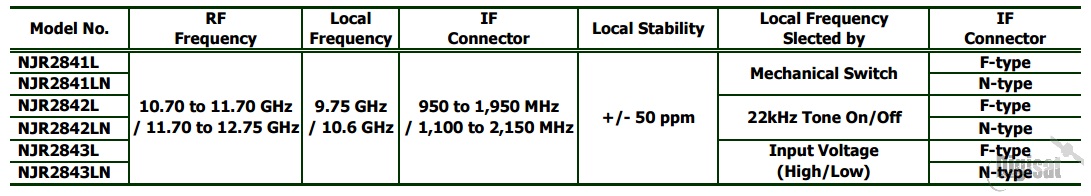

LNB Ordering Info
|
Input Interface |
WR-75 (with groove) |
| Output Interface | "N" Type, female (75 ohm) |
| Noise Figure | 0.8 dB typical, 1.0 dB max. |
| Linear Gain (at 25C) | 48 dB min, 62 dB max. |
| L.O. Phase Noise | -50 dBc/Hz @ 100 Hz -70 dBc/Hz @ 1 kHz -75 dBc/Hz typ. @ 10 kHz -85 dBc/Hz typ. @ 100 kHz |
| L.O. Leakage Level | -40 dBm max. at the IF output connector -60 dBm max. at the RF input flange |
| Spurious | a)-120 dBm max. At input, fixed frequency spurious, unrelated to test CW signal. (Measured at specified IF band) b)-40 dBc max. With test CW signal -10 dBm IF output (measured at specified IF band) |
| Input V.S.W.R. | 2.5:1 typ. |
| Output V.S.W.R. | 2.3:1 max. |
| Power Requirement | +24 VDC (+10 to +24 VDC) |
| Current Drain | 200 mA max |
| Temperature Range (ambient) Operating Storage |
-40 to +60° C -40 to +80° C |
| Dimensions | 83.4 mm (L) x 42 mm (W) x 42 mm (H) (3.24" (L) x 1.57" (W) x 1.57" (H)) |
| Weight | 210 g [0.46 lbs] |
VSAT systems that require a field switchable universal LNB to cover the entire Ku receive spectrum
