NJR2828 Ka-Band O3B PLL Low Noise Block Downconverter (LNB)
The New Japan Radio NJR2828 PLL Ka-band series Low Noise Block Downconverter (LNB) is specifically designed to be used in conjunction with O3B satellites. The NJR2828 series is available in two different configurations- High Frequency Ka-band NJR2828H and lower frequency operation NJR2828L. The NJR2828L is capable of Ka-Band frequency reception from 17.852 to 18.588 GHz with a local oscillator frequency of 16.80 GHz, while the NJR2828H operates from 18.372 to 19.271 GHz with a 17.40 L.O. frequency.
Features
Low Noise Temperature
Noise Temperature: 101 K typ., 120 K max.
High LO Stability:
LO Stability: +/- 1.5 ppm
Reliable All-weather Performance

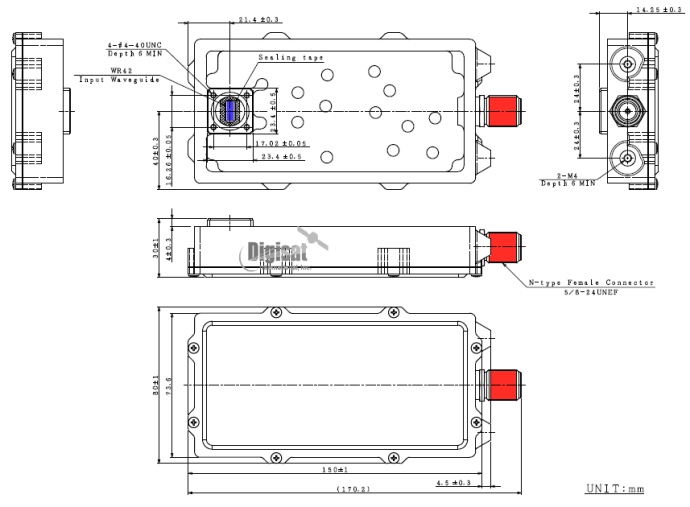

Dimensions
O3B Ka-Band LNB RF Specifications
|
Model# |
RF Frequency |
Local Frequency |
IF Frequency |
LO Stability |
Noise Temperature |
Power Supply |
|
NJR2828L |
17.852 to 18.588 GHz |
16.800 GHz |
1,052 to 1,788 MHz |
+/- 1.5 ppm |
101 K typ. 120 K max. |
+18 – +30 V DC Power |
|
NJR2828H |
18.372 to 19.271 GHz |
17.400 GHz |
972 to 1,871 MHz |
+/- 1.5 ppm |
101 K typ. 120 K max. |
+18 – +30 V DC Power |
|
Input Interface |
Waveguide, WR42 with Groove |
|
Output Interface |
N-type, female connector (50 ohm) |
|
Noise Temperature |
101 K typ., 120 K max. |
|
Conversion Linear Gain |
55 dB min. |
|
Power Output at 1dB G.C.P. |
+10 dBm min. |
|
The Third Order Intercept Point |
+20 dBm min. |
|
L.O. Phase Noise |
-63 dBc/Hz max. @ 100 Hz |
|
-73 dBc/Hz max. @ 1 kHz |
|
|
-83 dBc/Hz max. @ 10 kHz |
|
|
-93 dBc/Hz max. @ 100 kHz |
|
|
Internal Reference Stability |
10 dB |
|
Output Return Loss |
10 dB |
|
Power Requirement |
+18 to +30 V DC Power |
|
Power Consumption |
4 W max. |
|
Temperature Range (ambient) |
Operating: -20 to +50 C |
|
Dimension & Housing |
150 mm (L) x 80 mm (W) x 30 mm (H) without Interface Connectors |
|
Weight |
500 g [1.1 lbs] |
O3B Satellite Networks, Ka-band satellite reception
