Newtec Elevation Series EL810 Mobile PEP-Box Terminal

Newtec EL810 Mobile PEP-Box Terminal

This product has reached end of life and has been replaced by the M6100 R2.1.

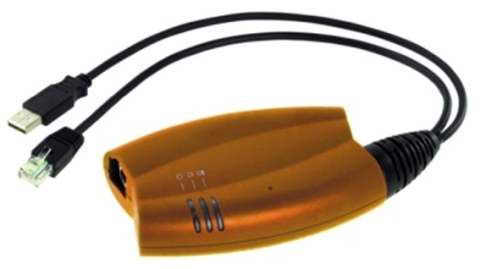

The Newtec EL810 Mobile PEP-Box Terminal is a Performance Enhancing Proxy (PEP) appliance that combines a number of advanced traffic enhancement and security functionalities. This palm-size appliance is a fully integrated USB-powered accelerator which is primarily targeted for optimizing mobile satellite services.

The Newtec Elevation Series EL810 is to be used in conjunction with the EL840 PEP-Box Server at the other end of the transmission link.  TCP and HTTP, the most widely used protocols in the Internet, show very poor performance when being used over high latency and lossy networks, such as satellite networks.  As a result users experience slow download speed and surfing performance.  Moreover valuable satellite capacity is not used in the most efficient way, because the available bandwidth resources are not utilized up to their physical limits.

IP Enhancement

The ideal solution to overcome such drawbacks is the EL810 terminal. This appliance integrates a traffic enhancement technology that accelerates any TCP based transmission over high latency networks. At the same time the EL810 Mobile PEP-Box Terminal greatly reduces the TCP data traffic on both forward and return link by means of data compression as well as TCP packet aggregation and session multiplexing. This is achieved by using ETCP (Enhanced TCP) instead of TCP over the satellite link.

In order to protect the user’s PC or laptop, the EL810 Mobile PEP-Box Terminal includes a firewall that can be configured to protect the user from any unauthorized access from the “outside”.  This stateful inspection firewall filters any data packets based on the originating and target address and blocks undesirable traffic – also from the “inside”.

The EL810 Mobile PEP-Box Terminal comes with an Advanced option package that provides, on top of TCP acceleration and data compression, also acceleration techniques for popular protocols such as HTTP, FTP, POP3 and SMB (CIFS). The HTTP prefetching technology enhances the web surfing experience to an extent that the download time for a web site can be reduced by more than 70 %, so the user has the impression of surfing via regular DSL or Cable based Internet connections. Additionally, the Advanced option package of the EL810 Mobile PEP-Box Terminal secures any data traffic exchanged via the network by building up an encrypted VPN between the hub and the remote sites.

The EL-810 Mobile PEP-Box Terminal appliance is based on TelliNet that is part of the Tellitec IP software product family.

Features

• Out-of-the-box solution − no additional hardware or software needed at the end user’s PC or laptop

• Transparent to other applications

• Integrated fi rewall

• Superior TCP acceleration by using ETCP

• Data compression

• Advanced cryptographic security

• HTTP, FTP, POP3 and SMB (CIFS) acceleration

• Traffic aggregation, multiplexing and compression

Advantages

• Reduces bandwidth costs and increases revenues

• Speeds up time-to-market

• Minimizes customer support efforts

• Boosts service performance

• Ensures high network security and end user privacy

• Seamless integration into existing infrastructure

• Ultra-lightweight palm-size form factor

• USB-powered – no extra power supply required

• High versatility and flexibility

• Easy to integrate and to use

Applications

• Mobile and Portable VSAT Acceleration

• Corporate Networking
