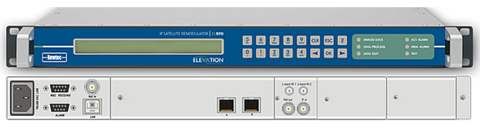

EL970 Satellite Broadcast Demodulator

This product has reached end of life and has been replaced by the MDM6000.

The Newtec EL970 is a state-of-the-art satellite demodulator designed for IP applications over satellite in full compliance with the DVB-S and DVB-S2 standards. The EL970 connects directly to terrestrial IP network infrastructures via a single auto-switching Gigabit Ethernet interface. The receiver demodulates, restores and filters the data received from the satellite at rates of up to 133 Mbit/s.

The EL970 comes with several hardware and software options and can be used in Point-to-Point links as well as in Point-to-Multi Point networks. It is compatible with a wide range of encapsulation protocols: data piping, MPE, ULE and Newtec’s XPE (Extended Performance Encapsulation). The EL970 is capable of receiving DVB-S2 Multistream and VCM streams, and is able to demodulate higher modulation schemes such as 16APSK and 32APSK.

Efficient Bandwidth

For maximum bandwidth efficiency, the optional FlexACM client allows the EL970 to provide feedback on the link condition to an FlexACM controller located at the uplink site, so that the modulation parameters can be adapted automatically and dynamically.

The EL970 has a dual L-band input. The active input is selected by the user and can provide DC power and frequency band selection signals compatible with most professional and commercial LNBs. Optionally, one L-band input can be replaced by an IF input.

The integrated Noise & Distortion Estimator tool provides an accurate reading of the satellite link margin even in presence of non-linear distortion and allows the user to find the optimum input back-off setting very easily for 16APSK or 32APSK operation, whether or not non-linear pre-distortion is applied .

Combining new innovative features and advanced data encapsulations protocols with DVB-S2 technology, the EL970 ensures the highest bandwidth efficiency available on the market.

Key features

• DVB-S2 and DVB-DSNG/S compliant

• QPSK, 8PSK, 16APSK and 32APSK

• XPE, ULE, MPE, data piping encapsulation

• Data rates up to 133 Mbit/s

• Adaptive equalizer

• Multi-stream and VCM support

• Noise & Distortion Estimator (NoDE) tool

• Optional FlexACM client (FlexACM)

• Optional 10 MHz reference input/output

• Featured-based pricing and software upgradability

Main advantages

• Lower operational costs thanks to highest bandwidth efficiency and lowest IP encapsulation overhead

• Integrated hardware and software offering for end-to-end solution

• Easy integration with terrestrial IP networks and routers

• High versatility and flexibility

Related products

EL170 IP satellite modulator

EL178 High speed IP satellite modulator

EL470 IP satellite modem

EL478 High speed IP satellite modem

EL940 IP satellite receiver

EL978 High speed IP satellite demodulator

El8xx Protocol Enhancement Proxy appliances

EL860 ACM Controller, Shaper and Encapsulator (CSE)

AZ7x0 Frequency converters

AZ290 1+1 Demodulator Redundancy Switch

AZ200 Universal Switching System

Technical Specifications

Input interface

Dual L-band input (default)

• Connector 2 x F-type (F), 75 ohms

• Return loss > 7 dB

• Level -65/-25dBm

• Frequency 950 - 2150 MHz

• Adjacent signal < (Co+7) dBm/Hz

where Co = signal level density

IF-band input (optional, replaces one L-band input)

• Connector BNC (F) - 75 ohms

• Return loss > 15 dB

• Level -55 to -15 dBm

• Frequency 50 - 180 MHz

• Adjacent signal < (Co+7) dBm/Hz where Co = signal level density

LNB power and control

• max. current 350 mA (on selected IFL input)

• voltage 11,5 -14 V (Vertical polarization) 16 -19 V (Horizontal polarization) & additional 22 kHz +/- 4KHz (band selection according to universal LNB for Astra satellites & DiSEqC command transmission)

• 10 MHz reference

Demodulation

Supported modulation schemes and FEC

• DVB-S/DSNG:

Outer/Inner FEC: Reed Solomon /Viterbi

MODCODs:

QPSK: 1/2, 2/3, 3/4, 5/6, 7/8

8PSK: 2/3, 5/6, 8/9

16QAM: 3/4, 7/8

• DVB-S2:

Outer/Inner FEC: BCH/ LDPC

MODCODS:

QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4,

4/5, 5/6, 8/9, 9/10

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

32APSK: 3/4, 4/5, 5/6, 8/9, 9/10

• CCM + VCM support

• ACM client (optional)

Baud rate range

DVB-S2

• QPSK/8PSK 0,256 – 45 Mbaud

• 16APSK 0,256 – 33 Mbaud

• 32APSK 1 - 33 Mbaud

DVB-S/DSNG

• QPSK/8PSK/16QAM 1-45 Mbaud

Frame length

• DVB-S/DSNG 188 bytes

• DVB-S2 Short Frames 16 200 bit

• DVB-S2 Normal Frames 64 800 bit

Roll-off factor

• 20 % - 25 % - 35 %

Output interface

• Auto switching 10/100/1000 Base-T Ethernet interface

• Maximum rate: 133 Mbit/s or 67,000 packets per second

• Layer 2 bridge mode: Ethernet frames over satellite

• Layer 3 bridge or router mode: IP packets over satellite

• Supported encapsulation modes:

- Data piping:

- Ultra Lightweight Encapsulation (ULE)

- Multi Protocol Encapsulation (MPE):

- Extended Performance Encapsulation (XPE), Newtec’s highly efficient encapsulation protocol for the encapsulation of Ethernet/IP frames in DVB-S2 Base-Band frames (optional)

• Data filtering:

- up to 32 streams in DVB-S2 Multi-stream

- up to 256 configurable PID filters

- one air MAC address filter per PID or stream
