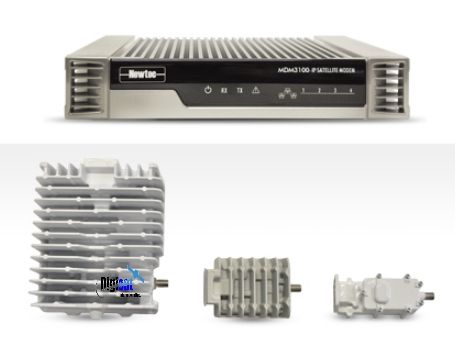

Newtec Dialog SAT3100 VSAT Terminal
Features an innovative self-installation system to easily position the antenna correctly by identifying the satellite.
SAT3100 VSAT Terminal
The Newtec SAT3100 satellite terminal offers cost-effective broadband connectivity for a wide variety of professional applications on the Dialog and Sat3Play Hub platforms.
The 3100 series modems can be combined with a performant ODU portfolio. The BUC’s and LNB’s have been selected to provide optimal performance. When selecting an outdoor unit, a tradeoff can be made based on two main criteria: peak rate and cost. Cost considerations involve the price of the full terminal, the cost of installation and ownership, and of course the price per Mbit. The Newtec modems support multiple waveforms that enable this tradeoff between cost and peak rate per application.
High Efficiency Output Power
Newtec modems always operate at the maximum output power supported by the waveform and the BUC. A waveform supporting saturation (e.g. 4CPM) can operate at the saturated output power of the BUC. Other waveforms operate at a power back off as close as possible to the saturated output power.
Low cost and reduced power Consumption
The efficient use of the BUC power enables the use of less powerful BUCs that are lower cost. Using a smaller, less powerful BUC also means using less electricity to power each terminal. With an average power efficiency of 5%, a difference of 1 Watt in the output power translates into a difference of 20 Watts of power consumption.
Ease Of Installation
Key Features
BUC SPECIFICATIONS
- 3W and 4W version Ku-Band
- 5W and 2W C-Band
- 3W Ka-Band
- Innovative design
- Power efficient
- Compact in size
- Low distortion
LNB SPECIFICATIONS
- Integrated LNB and TX Reject Filter
- Dual oscillator
- Superior phase noise performance
