AZ410 Series SNG Satellite Modem

This product has reached end of life and has been replaced by the Newtec M6100.

The AZ410 is a state-of-the-art satellite modem designed for broadcast contribution and DSNG applications over satellite. The AZ410 allows transmitting and receiving simultaneously transport stream(s) and/or IP services in full compliance with the DVB standards.

To simplify the migration towards IP, the AZ410 features DualFlow (combined ASI+Ethernet interface), providing broadcasters the following capabilities.:

- The ability to transmit up to two transport streams and receive up to two transport streams simultaneously in DVB-S2 Multistream mode via two ASI input and two ASI output interfaces.

- The ability to interface (via the GbE input/output) with equipment or networks that carry transport streams over IP with the UDP/RTP protocol (the IP layer is removed by the modulator before transmission).

- The ability to transmit and receive IP services (fi le transfers, VoIP, TCP services…) and transport stream(s) simultaneously. In this case the modulator performs the encapsulation of the IP data in XPE mode.

- The ability to transmit and receive IP services or transport stream(s) alternatively. In this case the modulator performs the encapsulation of the IP data in XPE or MPE mode.

- The ability to configure Quality of Service (QoS) of the IP traffic, while keeping absolute priority to the ASI streams

VCM Streaming

When several transport streams and/or IP services are transmitted simultaneously, the Variable Coding and Modulation (VCM) option allows each service or stream to be modulated with its own parameters.

At the output of the modulator, the signal is available on an L-band interface. Extended L-Band, IF band as well as HPA power supply and reference frequency are available as configuration options. When activated, the unique linear and non- linear pre-distortion option Equalink provides an additional link margin improvement of up to 2,5dB.

On the receive side, the AZ410 has a dual L-band input( 950-2150 MHz). The active input is selected by the user and can provide DC power and frequency band selection signals compatible with most professional and commercial LNBs. Optionally, one L-band input can be replaced by an IF (50-180MHz) input. An adaptive equalizer compensates linear distortion of the transmission channel.

The integrated Noise and Distortion Estimator (NoDE) tool provides an accurate reading of the satellite link margin even in presence of non-linear distortion and allows the user to find the optimum input back-off setting very easily for 16APSK or 32APSK operation, whether or not non-linear pre-distortion is applied .

Key features

• DVB-S2 and DVB-DSNG/S compliant

• QPSK, 8PSK, 16APSK and 32APSK

• Data rates up to 216 Mbit/s

• DualFlow: Combined ASI+GbE interfaces

• Integrated IP encaspulator

• Configurable Quality of Service (QoS)

• L-band monitoring output

• Programmable amplitude slope equalizer

• Adaptive Equalizer (demodulator input)

• Noise and Distortion Estimator tool (NoDE)

• Optional Extended L-Band (950 - 2150 MHz)

• Optional Multistream and optional VCM operation

• Optional 10 MHz reference input/output

• Optional Linear and non-linear pre-distortion (EqualinkTM)

• Featured-based pricing and software upgradability

Main advantages

• Lower operational costs thanks to highest bandwidth efficiency

• Future-proof design combining video and IP technologies

• High versatility and flexibility

• High compactness

Related products

AZ110 Broadcast Satellite Modulator

Technical Specifications

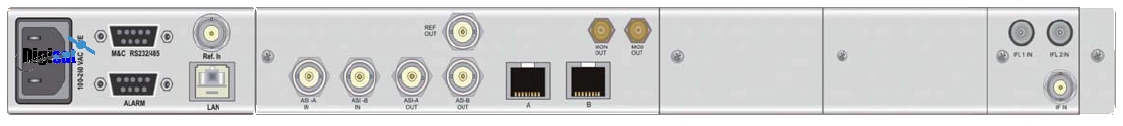

Input/output interface

DualFlow: Combined ASI + Ethernet

• 2 x ASI input on BNC (F) - 75 ohms (coax)

• 2 x ASI output on BNC (F) - 75 ohms (coax)

• 188 byte mode

• Auto switching 10/100/1000 Base-T Ethernet interface:

- transport stream on IP interface (UDP/RTP)

- Ethernet/IP QoS:

- 4 queue priorities

- 8 traffi c classifi cation rules

- Configurable queue size

- Layer 2 bridge mode: Ethernet frames over satellite (data piping)

- Layer 3 bridge or router mode: IP packets over satellite using Multi Protocol (MPE) or Extended Performance (XPE) Encapsulation

- Maximum 16 routes/destinations addresses

- Processing of up to 40 000 IP packets per second – maximum 50 Mbit/s

• DVB-S2 Multistream support

• VCM support (optional)

Modulation and demodulation

Supported modulation schemes and FEC

• DVB-S/DSNG: Outer/Inner FEC: Reed Solomon /Viterbi

MODCODs:

QPSK:1/2, 2/3, 3/4, 5/6, 7/8

8PSK: 2/3, 5/6, 8/9

16QAM: 3/4, 7/8

• DVB-S2:

Outer/Inner FEC: BCH/ LDPC

MODCODS:

QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

32APSK: 3/4, 4/5, 5/6, 8/9, 9/10

Baud rate range

mod demod

• DVB-S2 0,05 - 45 0,256 - 45/33

• DVB-S/DSNG 0,05 - 45 1 - 45

Frame length

• DVB-S/DSNG 188 bytes

• DVB-S2 Short Frames 16200 bits

• DVB-S2 Normal Frames 64800 bits

Roll-off factor

• 20 % - 25% -35%

Modulator interface

L-band output (default)

• Connector SMA (F), 50 ohms

• Return loss > 14 dB

• Level -35/+5 dBm (+/- 2 dB)

• Frequency 950 - 1750 MHz (50 Hz steps)

• spurious: better than -65 dBc/4 kHz @

+5 dBm level and > 256 kbaud

Extended L-band output (optional)

• Connector SMA (F), 50 ohms

• Return loss > 14 dB

• Level -35/+5 dBm (+/- 2dB)

• Frequency 950 - 2150 MHz (50 Hz steps)

• spurious: better than -65 dBc/4 kHz @

+5 dBm level and > 256 kbaud

IF-band (optional)

• Connector BNC (F) - 75 ohms

(intermateable with 50 ohms)

• Return loss 50 ohms : > 14 dB

75 ohms : > 20 dB

• Frequency 50 - 180 MHz (50 Hz steps)

• Level -30/+5 dBm (± 3 dB)

• spurious: better than -65 dBc/4 kHz @

-10 dBm level and > 256 kbaud

L-band monitoring output (default)

• Connector SMA (F), 50 ohms

• Return loss > 7 dB

• Frequency default: identical to L-band output.

with option AA-02: 1080 MHz

• Level -45 dBm

BUC power and reference frequency (optional)

• Max. current 1,5 A

• Voltage 24V

• Frequency 10MHz

• Stability ±5x10-8 over 0°C to 65°C

10 MHz reference input / output (optional)

• Connector BNC (F) – 50 ohms

• Input level -3dbm up to 7dBm

• Output level +7dBm

Demodulator interface

Dual L-band input (default)

• Connector 2 x F-type (F), 75 ohms

• Return loss > 7 dB

• Frequency 950 - 2150 MHz

• Level -65/-25dBm

• Adjacent signal < (Co+7) dBm/Hz with Co = signal level density

IF-band input (optional, replaces one L-band input)

• Connector BNC (F) - 75 ohms

• Return loss > 15 dB

• Frequency 50 - 180 MHz

• Level -55 to -15 dBm

• Adjacent signal < (Co+7) dBm/Hz with Co = signal level density

LNB power and control

• Max. current 350 mA (on selected IFL input)

• Voltage 11,5 -14 V (Vertical polarization) 16 -19 V (Horizontal polarization) & additional 22 kHz +/- 4KHz (band selection according to universal LNB for Astra satellites )

• 10 MHz reference
