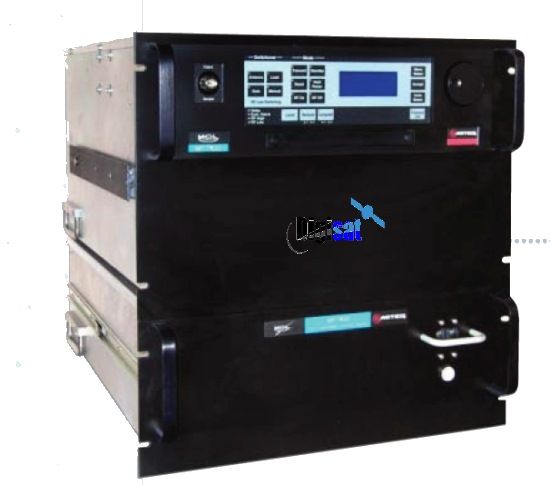

MCL MT7100 X-Band 2250 Watt High Power Rack Mounted Travelling Wave Tube Amplifier

MCL MT7100 X-Band 2250 Watt High Power Rack Mounted Travelling Wave Tube Amplifier System provides power amplification of X-Band frequencies from 7.90 to 8.40 GHz. The rugged MT7100 features a modular design that's RoHS - 5 compliant, and has an integrated software communications configuration for both remote and computer ethernet interfaces.

System options include 1:1 & 1:2 redundancy, and phased combined configurations. The 7100's built-in state-of-the-art high efficiency resonant power supply ensures optimum reliability.

Features: RF Connectors: Input: Type N, Female Output: (Waveguide Flange) C-Band: CPR137F, Operating Temperature: -10°C to +50°C, Vibration: MIL-STD-810E, Method 514.4, Cooling: Conductive Forced Air

The MCL X-Band MT7100 TWT Amplifier has reached its end of life and is no longer being manufactured.  Please contact Digisat for a direct replacement TWT from CPI Satcom.
