MCL MT2500 200 Watt X-Band TWTA Outdoor Amplifier

MCL MT2400 400 Watt Ku-Band Satcom on the Move Outdoor Amplifier

MCL MT3200A 270 Watt DBS-Band Rack Mount Indoor TWTA

Be the first to review this product

SKU

MCL MT2500 X-Band

MCL MT2500 200 Watt X-Band TWTA Outdoor Amplifier is available to buy in increments of 1

Available with an integrated BUC, Designed to Meet MIL-188-164A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

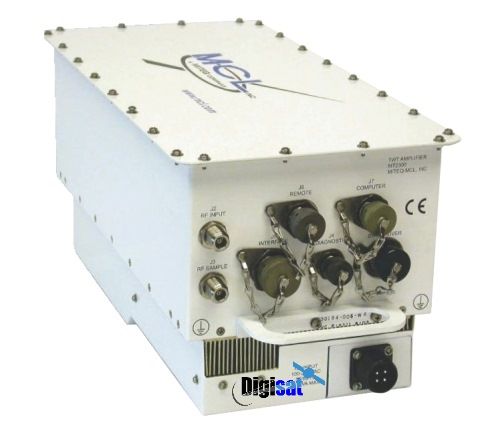

MCL MT2500 200 Watt X-Band Outdoor amplifier provides transmit operation from 7.90-8.40 Ghz and is specifically designed for Military Satcom and Government applications. The MT2500 series amplifier is a highly reliable and cost effective TWTA solution for mission critical satellite uplink applications that require extremely high power. The efficient 2500 consumes low power and is designed to Meet MIL-188-164A. It's continuous attenuator allows adjustment in 0.1dB steps and the onboard M&C protects the amplifier with an automatic filament shutdown. Ethernet Interface also comes standard.

The MCL MT2500 TWT Amplifier has reached its end of life and is no longer being manufactured. Please contact Digisat for a direct replacement TWT from CPI Satcom.
