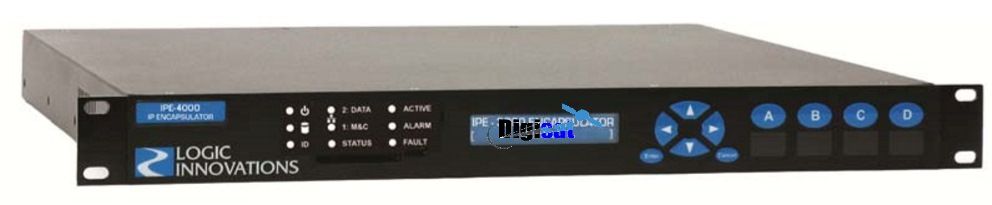

International Datacasting IPE-4000 200 Mbps MPEG-2 DVB IP Encapsulator
200 Mbps IP Encapsulation appliance
200 Mbps IPE-4000 IP Encapsulation Device
International Datacasting Logic Innovations IPE-4000 200 Mbps MPEG-2 DVB IP Encapsulator provides the necessary link between IP networks and broadband DVB or ATSC networks. The IP Encapsulator IPE-4000 enables cost effective point-to-multipoint content delivery. The IDC IPE4000 series 200 Mbps is a solid state, fully embedded, Linux-based IP Encapsulator. The 4000 series receives IP packets from an Ethernet connection and encapsulates selected packets into an MPEG-2 transport stream per DVB or ATSC specifications. Once the IPE has encapsulated the data, it forwards the data packets based on the user configurations. The output transport stream can then be forwarded to a multiplexer or directly to a modulator for the high performance and cost saving transmission of IP data over cable, satellite or terrestrial networks.
Feature Packed
Field upgradable performance via software license
Flexible Management & Config
Web-based GUI for ease of use, SNMP remote configuration and management support, Front panel LCD with navigation keys, Guaranteed Interoperability Internet standard
High Quality Service Performance
Type of Service (TOS) bits located in IP packet headers Conforms to DVB and ATSC data broadcast standards Compatible with IDC’s Datacast XD Server for guaranteed file delivery and the SuperFlex Pro Series Receivers (Audio, Data, Video).
SMPTE 325M
Provides a feedback path to support opportunistic data insertion, Allows data to be output at varied bit rates filling available space in an existing Transport stream, Interfaces directly to IDC’s Transport Stream Multiplexer (TSM) 2800
DVB‐S2 Compatible
High performance, scalable and future proof, enhances bandwidth efficiency
Complete Redundancy
Support for 1:1 redundancy with minimal switching strategy, redundant pair shares a virtual IP address, Standby unit automatically assumes active role in the event of a failure, Support for chain redundancy schemes, Contact closure on fault for external switch (component redundancy)
Model | |
|---|---|
| 200 Mb/s Maximum Output Rate, DVB/ATSC Encapsulator | |
DATA THROUGHPUT CONFIGURATIONS | |
| IP Packet Throughput | 40,000 PPS |
| Number of PIDs | 8192 |
| Output Data Format | MPE DSM-CC Datagram sections and data piping (EN 301 192 and ATSC 1/90 compliant) |
| Section Packing | Yes, selectable per PID |
| Firmware Carousel | Selectable bit rate; MP2TS file |
| Input Interface | 10/100/1000 Base‐TX |
| SNMP | MIB-II |
| IGMP | Version 2 |
| PSI Tables | PAT, PMT, NIT, TDT |
NETWORK SPECIFICATIONS | |
| Interfaces | Dual 10/100/1000 Base‐TX Ethernet ports (RJ‐45) |
OUTPUT INTERFACE | |
| DVB-ASI | Max Data Rates: 213 Mb/s Connectors: BNC (2) |
| SMPTE 325M (bi-directional) | Max Data Rates: 200 Mb/s Connectors: BNC (2) |
POWER REQUIREMENTS | |
| Supply Voltage | 85 to 250 VAC, 50 or 60 Hz autosensing |
| Power Consumption | <100 Watts |
PHYSICAL PARAMETERS | |
| Chassis | 1RU rackmount |
| Dimensions (H, W, D) | 4.5 cm x 43.2 cm x 40.6 cm (1.75” x 17” x 16”) |
| Weight | 9.53 kg (21 lbs.) |
ENVIRONMENTAL CONDITIONS | |
| Operating Temperature | 0° to 45° C (32° to 113° F) |
| Humidity | 5% ‐ 95% non-condensing |
| Shock | 3.5 g @ 10 ms duration |
| Vibration | 0.5 g @ 22‐10 Hz |
| Air flow | Front to back |
COMPLIANCE | |
| CB, CE, FCC, RoHS, UL/cUL |
|
IP content delivery over satellite, packet compression for efficient utilization of space segment
