Intellian DirecTV HD s80HD WorldView (Dual Axis) Maritime Satellite TV Antenna
High Gain DirecTV Dish, Ideal for yachts, ships and freighters
s80HD Ka-Band / Ku-Band Marine TV Antenna
The Intellian s80HD is an industry leading and highly popular boat satellite TV antenna that delivers outstanding signal reception for DirecTV and Dish Network in the roughest sea and weather conditions. Enjoy a crystal clear HD picture while cruising on the water.
The s80HD WorldView is the most feature-rich marine satellite TV antenna system on the market today. The dual-band antenna system receives all maritime satellite TV frequency bands including two Ka-band and one Ku-band satellite signals for DIRECTV. By using the Ku-band WorldView LNB the system provides complete coverage wherever you are. No matter your geographic location or the satellite signals used in the area, you'll always receive the strongest satellite TV signals for an uninterrupted WorldView. Download the brochure for even more reasons why you'll love this feature-packed Intellian s80HD antenna system.
Key Features
3-Axis stabilized platform
Ka-Band and Ku-Band all in one system
Built-in worldwide satellite data
Supports all receivers
Compact and lightweight
Easy installation and setup
High gain Cassegrain optics
Simultaneous Reception of DIRECTV Ka- and Ku-Band
The s80HD antenna system with its triple feed horn provides you with simultaneous reception of two DIRECTV Ka-Band satellites and one DIRECTV Ku-Band satellite. This allows viewers to watch all DIRECTV channels without manually changing the satellites, for an uninterrupted viewing experience.
Global Coverage
Long gone are the days of reconfiguring complex antenna/receiver systems, and manually changing out the LNB with each crossover into a new satellite service area. Intellian's WorldView Trio LNB technology enables reception of all Ku-Band satellites around the globe. The WorldView Trio LNB module is programmed to select each satellite's L.O. automatically, which allows mariners to enjoy any satellite TV services by simply selecting a target satellite and connecting a satellite receiver. The WorldView Trio LNB module automatically switches to the corresponding polarization and local frequency regardless of the regional satellite service provider.
Multi-Switch Module
Intellian s80HD comes standard with a Multi-Switch module that allows you to connect various types of satellite receivers. The Multi-Switch includes a built-in SWM capability, supporting both Single Wire and standard installations, reducing the need for additional hardware, and simplifying onboard installation.
3-Axis Stabilized System
The 80cm WorldView antenna is stabilized in three axes, azimuth, elevation and cross-level, providing faster, more reliable satellite tracking. The 3-axis stabilization is especially beneficial in regions near the equator and for vessels that may find themselves out in heavy seas.
Compatible with iPhone, iPad and Android
Now you can download an Intellian app onto your smartphone, tablet, or other preferred device for even more convenience. Simply download the app onto your favorite device and operate your antenna, access the Satellite Library, download the latest antenna software and more, with simple touch controls. It's just one more way Intellian gives you complete control of your Uninterrupted WorldView.
DVB-S2 Signal Identification
Intellian WorldView is fully compatible with the DVB-S2 standard. It detects, identifies, and tracks satellites transmitting the DVB-S2 signal format. A capable satellite TV receiver and subscription is required.
Global Satellite Library
The s80HD WorldView antenna system contains a built-in global satellite library that provides satellite data wherever you are. The library contains information on satellites from around the globe, giving you access to the most relevant, location-based programming. Best of all, the Intellian Support team continuously upgrades the satellite library as programming changes, so you'll always have the most current satellite information available.

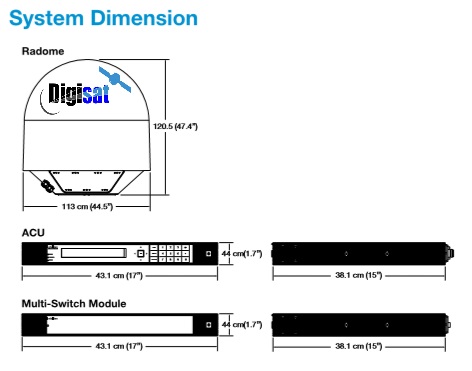

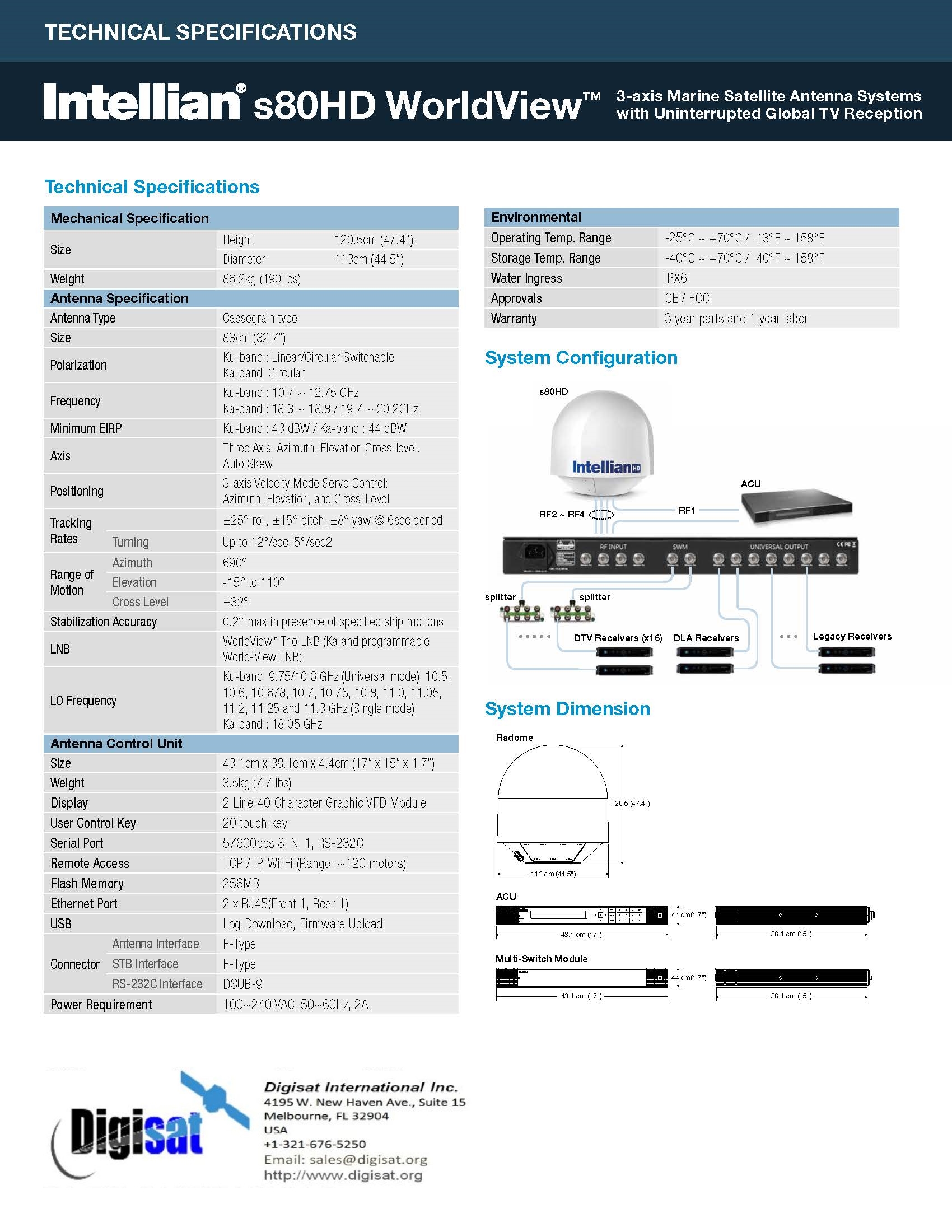

Mechanical Specifications
Size Height 120.5cm (47.4”)
Diameter 113cm (44.5”)
Weight 86.2kg (190 Ibs)
Antenna Specifications
Antenna Type Cassegrain type
Size 83cm (32.7”)
Polarization Ku-band : Linear/Circular Switchable
Ka-band: Circular
Frequency Ku-band : 10.7 ~ 12.75 GHz
Ka-band : 18.3 ~ 18.8 / 19.7 ~ 20.2GHz
Minimum EIRP Ku-band : 43 dBW / Ka-band : 44 dBW
Axis Three Axis: Azimuth, Elevation,Cross-level.
Auto Skew
Positioning 3-axis Velocity Mode Servo Control:
Azimuth, Elevation, and Cross-Level
Tracking Rates
±25° roll, ±15° pitch, ±8° yaw @ 6sec period
Turning Up to 12°/sec, 5°/sec2
Range of Motion
Azimuth 690°
Elevation -15° to 110°
Cross Level ±32°
Stabilization Accuracy 0.2° max in presence of specified ship motions
LNB WorldView™ Trio LNB (Ka and programmable
World-View LNB)
LO Frequency
Ku-band: 9.75/10.6 GHz (Universal mode), 10.5,
10.6, 10.678, 10.7, 10.75, 10.8, 11.0, 11.05,
11.2, 11.25 and 11.3 GHz (Single mode)
Ka-band : 18.05 GHz
Antenna Control Unit
Size 43.1cm x 38.1cm x 4.4cm (17” x 15” x 1.7”)
Weight 3.5kg (7.7 lbs)
Display 2 Line 40 Character Graphic VFD Module
User Control Key 20 touch key
Serial Port 57600bps 8, N, 1, RS-232C
Remote Access TCP / IP, Wi-Fi (Range: ~120 meters)
Flash Memory 256MB
Ethernet Port 2 x RJ45(Front 1, Rear 1)
USB Log Download, Firmware Upload
Connector
Antenna Interface F-Type
STB Interface F-Type
RS-232C Interface DSUB-9
Power Requirement 100~240 VAC, 50~60Hz, 2A
Environmental
Operating Temp. Range -25°C ~ +70°C / -13°F ~ 158°F
Storage Temp. Range -40°C ~ +70°C / -40°F ~ 158°F
Water Ingress IPX6
Approvals CE / FCC
Warranty 3 year parts and 1 year labor
All vessels over 50 feet in length, simultaneous reception of two DIRECTV Ka-Band satellites and one DIRECTV Ku-Band satellite.
