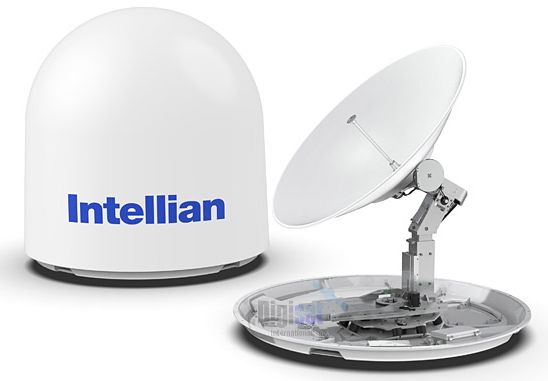

Intellian V150NX Ku-Ka GEO MEO LEO VSAT
All-New Platform:
1.5M reflector, RF subsystem, Control System, AptusNX. Features common parts which reduces spare parts by 40% and enhances reliability
V150NX Ka-Ku GEO MEO LEO Tracking Antenna
The Intellian V150NX VSAT Terminal delivers access to new satellite constellations and future services with GEO, MEO and LEO tracking capability while being 2.5GHz Wideband Ka ready which provides access to higher bandwidth and provides increased flexibility with a Ku-Ka-band tuned radome and reflector for easy conversion.
The 150NX series terminals are future-proof and investing now will provide you with an innovative product to support all your communication needs today, as well as access to future networks as your needs evolve.
Higher Performance and Greater Reliability
-
New RF Design delivering improved Receive Gain
-
Enhanced remote management and troubleshooting via AptusNX platform
-
Access higher bandwidth packages with available high power BUC options
Lowest Total Cost of Ownership with an All New Common Platform
-
Installation wizard for faster and more accurate commissioning
-
Single Cable installation reduces cost and Industry leading warranty
-
Common platform with 40% less spares
Market Sectors
The V130NX VSAT Series has been developed to offer a product to suit all customer needs and demands across the Maritime industry. Vessel sizes and communication needs are varied and the NX product line has products to meet these unique demands.
2.5GHz Wideband Ka Tuned Components
-
Radome & Reflector
-
RF Feed & Components
-
Wideband BUC & LNB
Higher Power BUC Options
Highly efficient design delivers the best RF performance, enabling higher data rates and global operation. Combined with BUC power options up to 200W for maximum throughput. The v150NX is the most powerful antenna system available in a single crate for the oil & gas industry, and cruise markets.
LEO, MEO and GEO Ready
Dual Antenna Configuration
|
Above Deck Unit |
|
|
Radome Height |
197.0 cm / 77.6" |
|
Radome Height with A/C Frame |
262.2 cm / 103.2" |
|
Radome Diameter |
190.0 cm / 74.8" |
|
Reflector Diameter |
150.0 cm / 59.0" |
|
Weight |
270 kg |
|
Weight with A/C Frame |
520 kg |
|
Platform |
3-axis / Azimuth, Elevation, Cross-level |
|
Azimuth Range |
Unlimited |
|
Elevation Range |
-15°to +110° |
|
Cross-level Range |
Up to ± 35° |
|
Stabilization Accuracy |
0.2° peak mis-pointing @ max ship motion condition |
|
Motor Brake System |
Dynamic Motor Break |
|
Tx Frequency |
13.75 ~ 14.5 GHz Ku-band |
|
Tx Gain |
45.0 dBi @ 14.25GHz |
|
Rx Frequency |
10.7 ~ 12.75 GHz Ku-band |
|
Rx Gain |
43.5 dBi @ 11.7GHz |
|
G/T |
22.5 dB/K @ 12.75GHz (Clear Sky, 30° Elevation) |
|
BUC Power |
16W, 40W, 100W, 200W |
|
LNB |
Intellian PLL LNB |
|
Polarization |
Linear, Cross & Co-pol |
|
Antenna Cable |
Single 50 ohm coax cable for Rx, Tx, FSK and Power from ACU to ADU |
|
Power Requirement for BUC |
100 ~ 240 VAC, 50~60Hz |
|
Antenna Control Unit |
|
|
Dimension (WxDxH) |
43.1 cm x 35.0 cm x 4.4 cm / 17” x 13.8” x 1.7” |
|
Weight |
5.2 kg / 11.5 lbs |
|
Display |
256 x 64 Graphic OLED |
|
Gyrocompass Interface |
NMEA2000 / NMEA0183 |
|
Mediator Interface |
Yes (Emebeded in ACU, Primary / Secondary control on AptusNX) |
|
Modem Interface |
Ethernet port / RS-232C,-422C / I/O Console |
|
Modem Protocol |
iDirect, Comtech, SatLink, Hughes, GILAT, Newtec |
|
Remote Management |
Yes |
|
Wi-Fi Operation |
Yes (w/ Wi-Fi Dongle) |
|
Management Port |
Yes |
|
Intellian LAN Port |
Yes |
|
Power Requirement |
100~240 V AC, 50~60 Hz, 4A |
1.5M reflector, Ku- to Ka-band compatibility, GEO, LEO and MEO operation
