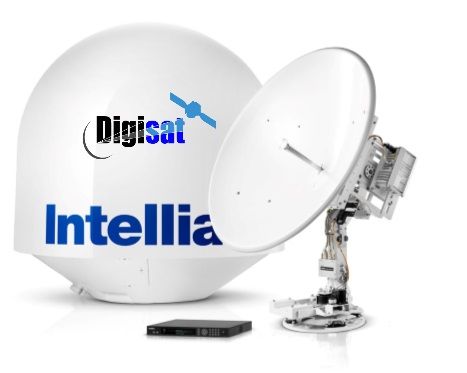

Intellian V130 1.25M 3-Axis Stabilized Antenna
High RF gain, ideal for ships and large yachts, includes above deck and below deck antenna controller

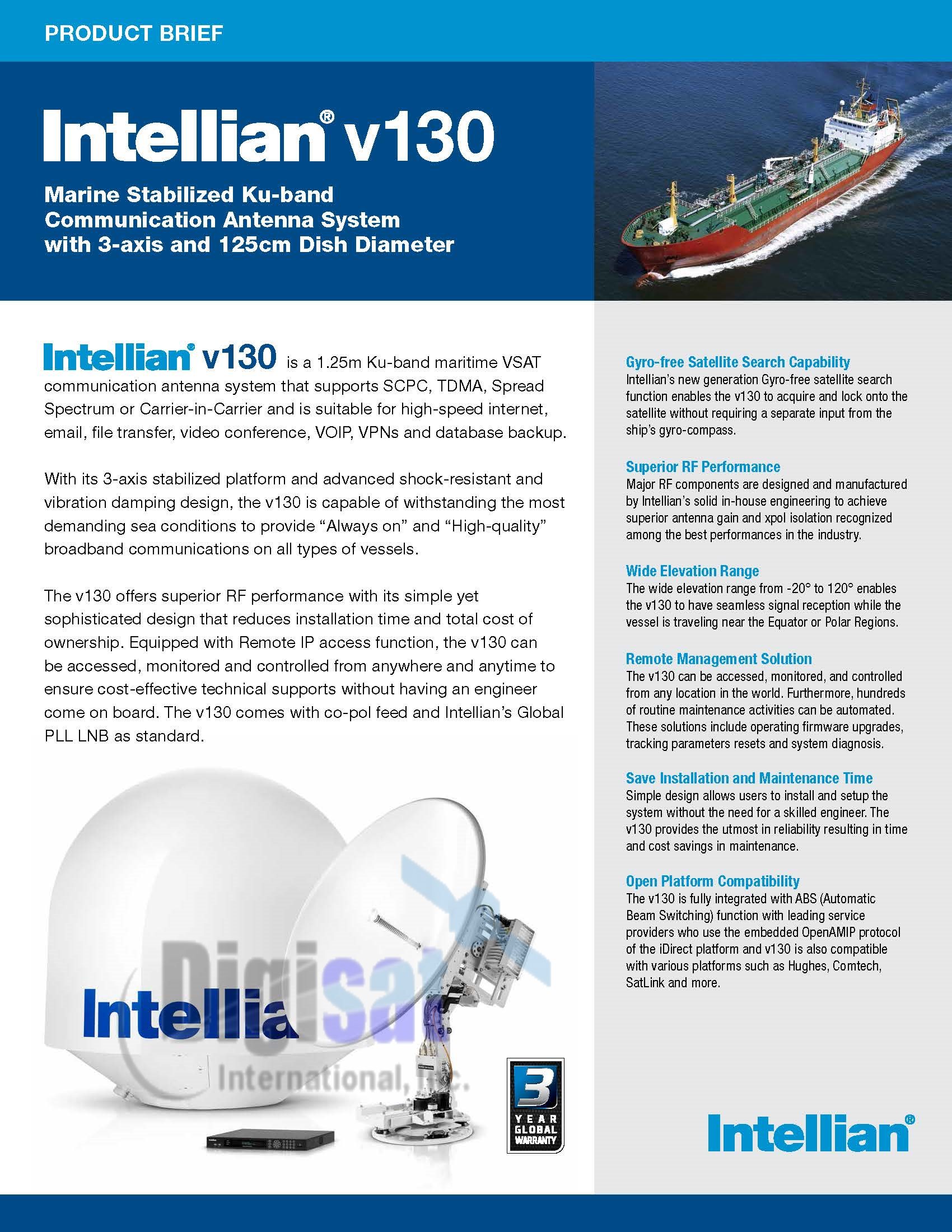

v130 Maritime IP Access System
The Intellian v130 maritime VSAT antenna is a precision 3-axis stabilized system that delivers broadband satellite IP access and maritime phone service to ships, yachts and commercial vessels while underway at sea or moored. The V130 features a built in GPS system, auto skew LNB assembly and meets all FCC requirements. The Intellian v130 comes standard with unlimited azimuth range for precise satellite tracking accuracy even in the roughest sea conditions.
Intellian V130 Special Features
Wide Azimuth range Auto Polarization skew control FCC 2 degree compliant Integrated control system Simple installation and setup

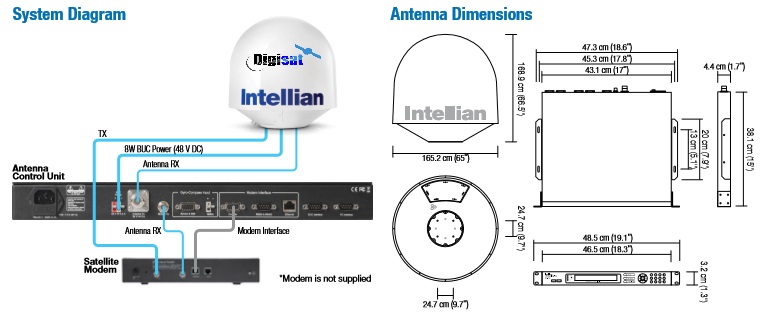

Outline Dimensions
Internet Service
Global maritime satellite IP connectivity for this terminal is available from Digisat. Our cost effective high speeed iDirect platform services feature always on connectivity for web browsing, using business apps, sending email, large file transfers and watching videos. Our technical maritime broadband sales team is ready to assist you with your specific IP access requirements. Regardless of what ocean or region your vessel transits, Digisat is ready to deliver a custom tailored, completely turnkey WiFi solution for your ship, yacht or cruiser today.

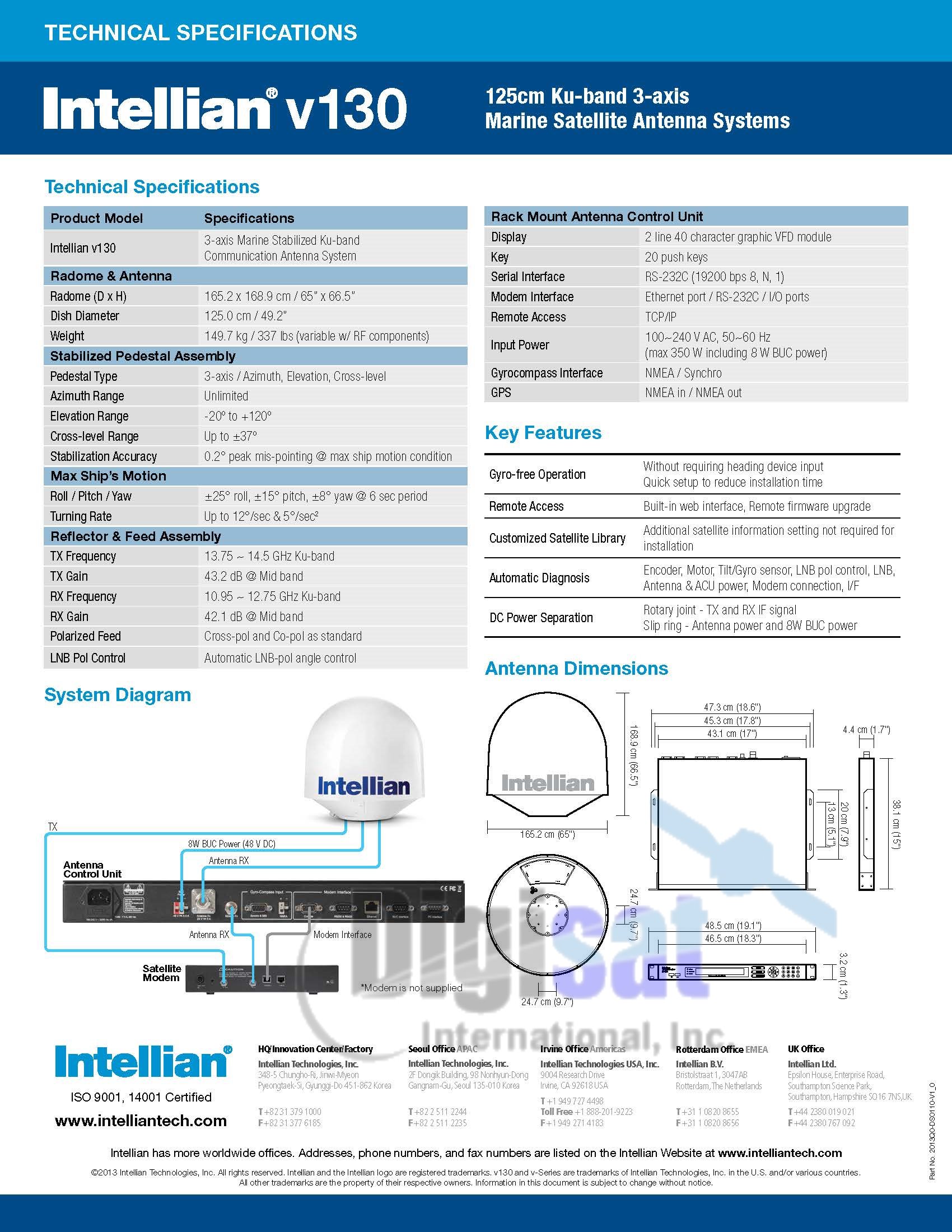

Product Model Specifications
Intellian v130 3-axis Marine Stabilized Ku-band Communication Antenna System
Radome & Antenna
Radome (D x H) 165.2 x 168.9 cm / 65” x 66.5”
Dish Diameter 125.0 cm / 49.2”
Weight 149.7 kg / 337 lbs (variable w/ RF components)
Stabilized Pedestal Assembly
Pedestal Type 3-axis / Azimuth, Elevation, Cross-level
Azimuth Range Unlimited
Elevation Range -20º to +120º
Cross-level Range Up to ±37º
Stabilization Accuracy 0.2° peak mis-pointing @ max ship motion condition
Max Ship’s Motion
Roll / Pitch / Yaw ±25° roll, ±15° pitch, ±8° yaw @ 6 sec period
Turning Rate Up to 12°/sec & 5°/sec2
Reflector & Feed Assembly
TX Frequency 13.75 ~ 14.5 GHz Ku-band
TX Gain 43.2 dB @ Mid band
RX Frequency 10.95 ~ 12.75 GHz Ku-band
RX Gain 42.1 dB @ Mid band
Polarized Feed Cross-pol and Co-pol as standard
LNB Pol Control Automatic LNB-pol angle control
Rack Mount Antenna Control Unit
Display 2 line 40 character graphic VFD module
Key 20 push keys
Serial Interface RS-232C (19200 bps 8, N, 1)
Modem Interface Ethernet port / RS-232C / I/O ports
Remote Access TCP/IP
Input Power 100~240 V AC, 50~60 Hz
(max 350 W including 8 W BUC power)
Gyrocompass Interface NMEA / Synchro
GPS NMEA in / NMEA out
