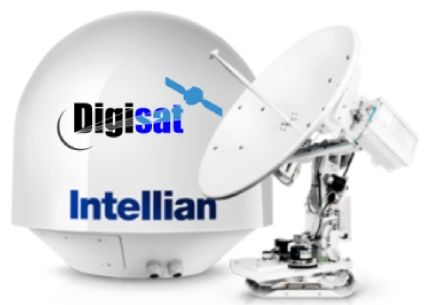

Intellian v110 1.05M Ku-Band Tx/Rx Antenna
Perfect for Yachts, Global coverage area, supports iDirect open AMIP

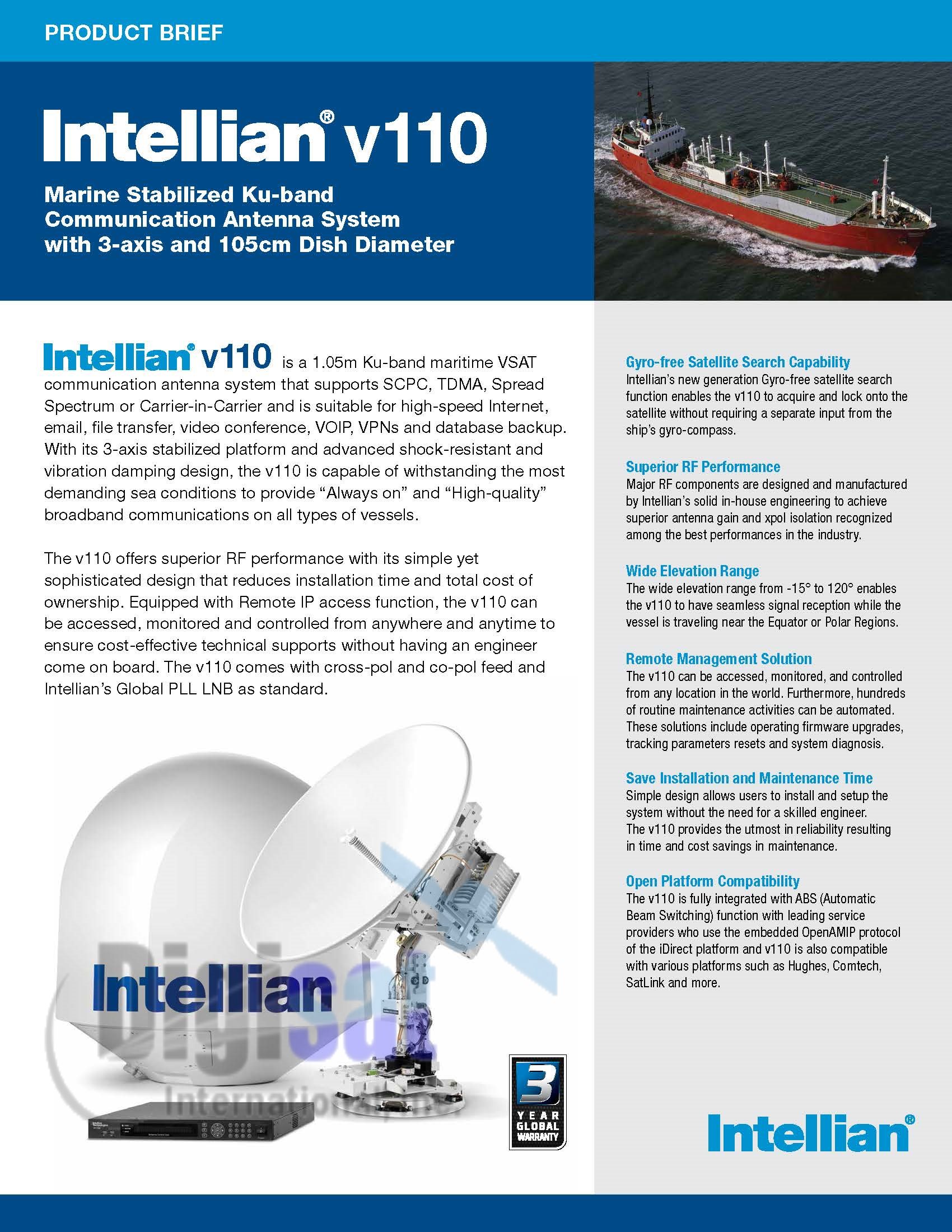

V110 Broadband Vessel Internet System
The Intellian v110 1m Ku-Band Maritime Satellite Internet Antenna System is an ideal satellite internet antenna solution for all types of vessels including yachts, ships, tug boats and fishing boats. The v110 system delivers an "always on" broadband connection that can be used to browse the internet, upload large files, stream video from on-board cameras, remotely check on the vessels system and download weather maps. The extremely robust Intellian v110 antenna also accommodates easy installation on a wide range of vessels.
Key Features
Remote IP Access Capability
Cross Pol and Co pol feeds
Wide Elevation Range from -20 degrees to +120
OpenAMIP Protocol for Automatic Beam Switching
Lightweight Rugged Construction
Cost Effective
A special winter price is available on the v110. Save over 20% for a limited time, plus receive a free 8 watt BUC and (2) Global LNB's. Please contact Digisat today for more info.
** The V110 has been superceded by the 1.05 Meter V100GX **

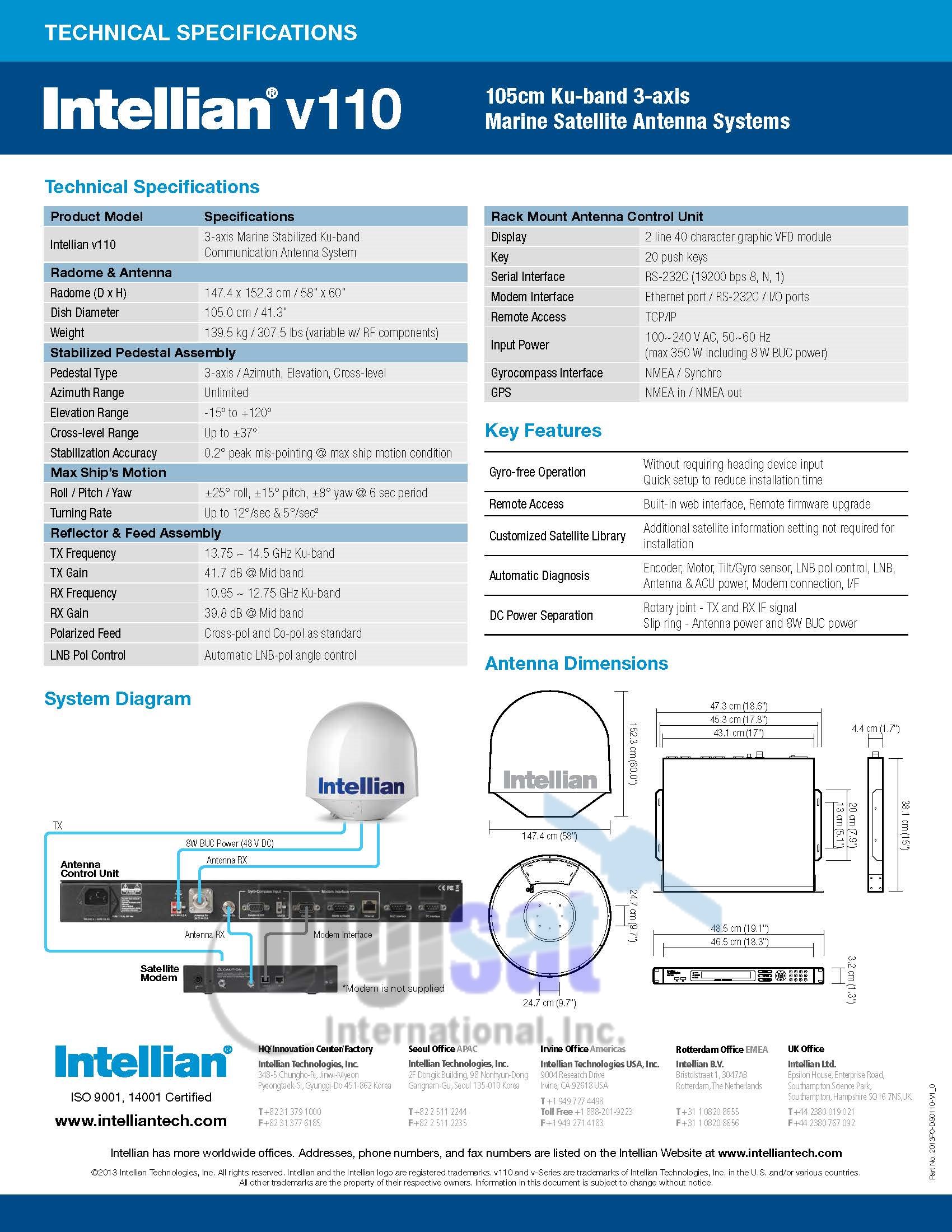

Product Model Specifications
Intellian v110 3-axis Marine Stabilized Ku-band Communication Antenna System
Radome & Antenna
Radome (D x H) 147.4 x 152.3 cm / 58” x 60”
Dish Diameter 105.0 cm / 41.3”
Weight 139.5 kg / 307.5 lbs (variable w/ RF components)
Stabilized Pedestal Assembly
Pedestal Type 3-axis / Azimuth, Elevation, Cross-level
Azimuth Range Unlimited
Elevation Range -15º to +120º
Cross-level Range Up to ±37º
Stabilization Accuracy 0.2° peak mis-pointing @ max ship motion condition
Max Ship’s Motion
Roll / Pitch / Yaw ±25° roll, ±15° pitch, ±8° yaw @ 6 sec period
Turning Rate Up to 12°/sec & 5°/sec2
Reflector & Feed Assembly
TX Frequency 13.75 ~ 14.5 GHz Ku-band
TX Gain 41.7 dB @ Mid band
RX Frequency 10.95 ~ 12.75 GHz Ku-band
RX Gain 39.8 dB @ Mid band
Polarized Feed Cross-pol and Co-pol as standard
LNB Pol Control Automatic LNB-pol angle control
Rack Mount Antenna Control Unit
Display 2 line 40 character graphic VFD module
Key 20 push keys
Serial Interface RS-232C (19200 bps 8, N, 1)
Modem Interface Ethernet port / RS-232C / I/O ports
Remote Access TCP/IP
Input Power 100~240 V AC, 50~60 Hz
(max 350 W including 8 W BUC power)
Gyrocompass Interface NMEA / Synchro
GPS NMEA in / NMEA out
High Speed Broadband Service access while underway at sea or dockside. Excellent for crew welfare and vessel management services
