Intellian i2 14" Compact Marine Satellite TV Dish is available to buy in increments of 1

Ideal marine satellite system for DirecTV service, ultra compact for easy vessel mounting

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

i2 Features

Travel further north or south with extended elevation range 10° to 80°
Stay locked on in rough seas, 60° per second turning rate
Compatible with leading satellite TV service providers in US and Canada
Smaller size with bigger performance
Simplicity of design, no fragile compass and no rate sensors
Auto satellite-switching function for three satellites
Switch channels as fast as you do at home
Built-in HD module for Ku-band

i2 Overview

The Intellian i2 is the world's first high-performance, compact satellite TV system with a breakthrough integrated HD and Automatic Satellite Switching TriSat™ module. This state-of-the-art functionality provides boaters premium high-definition (HD) and standard (SD) programming broadcast from leading satellite TV service providers without any extra conversion tools, cable wiring and costs.

The Intellian i2 is the preferred choice for smaller vessels from 25 feet with its lightweight antenna (9.8 lbs), small mounting footprint (13") and powerful design features. With its innovative, patent-pending Wide Range Search (WRS®) and Dynamic Beam Tilting (DBT®) technologies, the i2 can always maintain the highest signal strength available and ensure crystal-clear TV reception. Intellian's super-efficient 13" diameter antenna provides constant, seamless reception while the vessel is in the slip, at anchor, motoring along the coast or cruising offshore. The i2 TVRO 2-axis antenna features a built-in GPS interface which can accelerate the satellite signal acquisition time when other boats are left with the message "SEARCHING FOR SATELLITE" on their TV screen!

Bundled with Intellian's new intelligent Antenna Control Unit (ACU), boaters get a complete turnkey solution designed for simplicity and ease. The i2 ACU features a built-in, pre-programmed global satellite library for DirecTV. Intellian's exclusive Multi-satellite Interface Module (MIM), allows as many as three different satellites to be viewed at once, from different locations onboard, the ACU supports automatic satellite switching right from your remote control just like home.

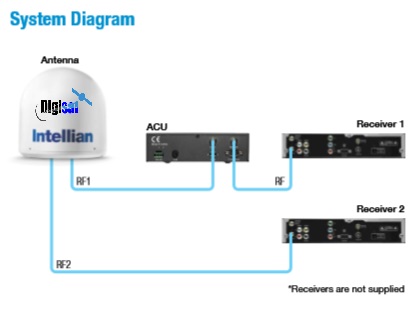

i2 System Diagram Outline

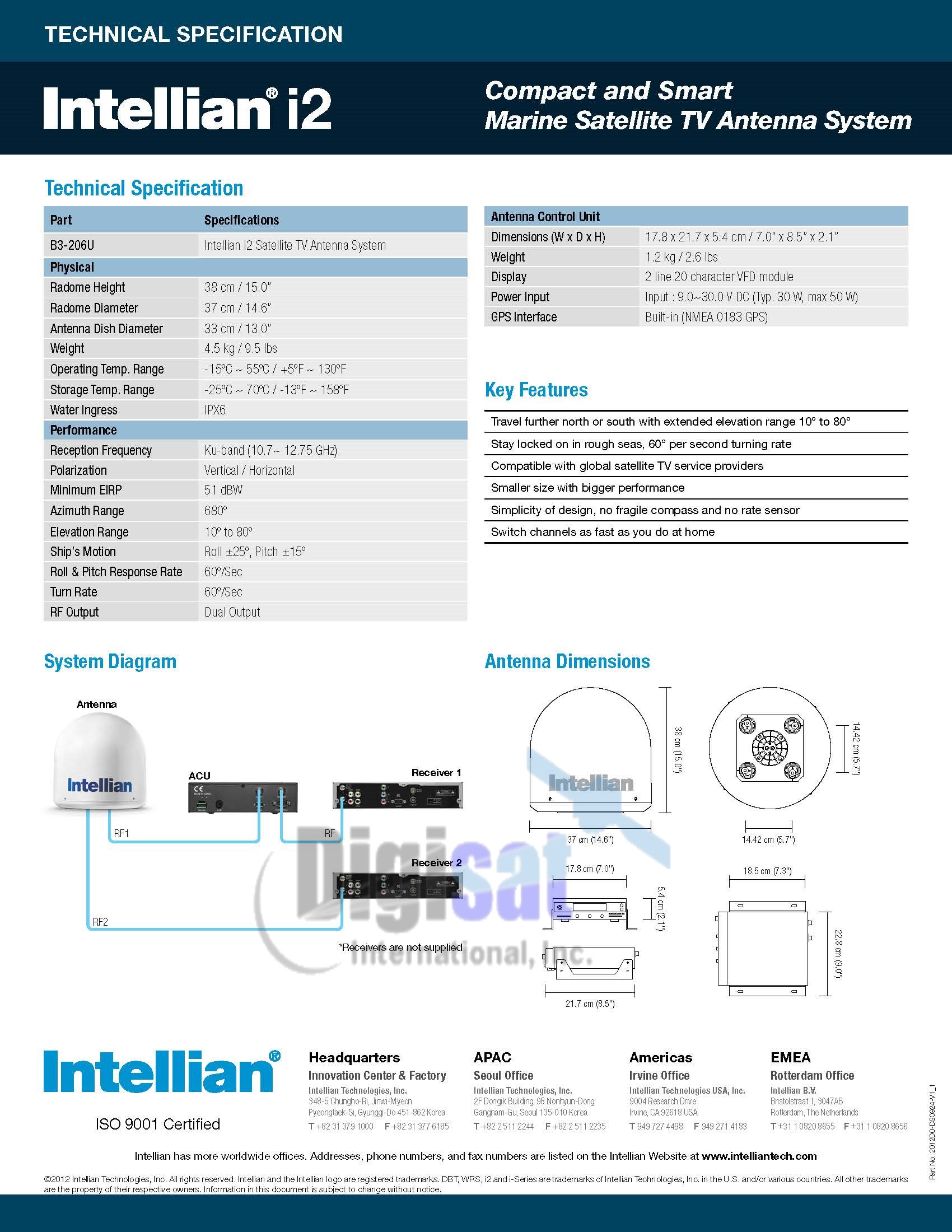

Technical Specifications

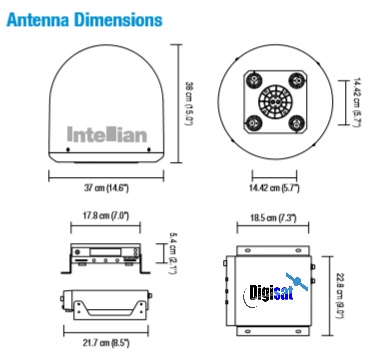

Physical

Dimensions	37 x 38cm (14.7" x 15")
Weight	4.5 kg ( 9.5 lbs)
Antenna Dish	33 cm (13.0")

Environmental

Operating Temp. Range	-15˚C to +55˚C (-5˚F to +130˚F)
Storage Temp. Range	-25˚C to +70˚C (-13˚F to +158˚F)
Water Ingress	IPX6
Approvals	CE / FCC

Performance

Frequency	Ku-Band(10.7 ~ 12.75) GHz
Minimum EIRP	51 dBW
Azimuth Range	680°
Elevation Range	10˚ to +80˚
Ship's Motion	Roll ±25˚ , Pitch ±15˚
Roll & Pitch Response Rate	60° / second
Turn Rate	60° / second
LNB	Dual Output

ACU

Dimensions	17.8 x 21.7 x 5.4 cm (7" x 8.5" x 2.1")
Weight	1.2 kg (2.6 lbs)
Display	2 Line 20 character VFD module
Control Key	5 Integrated Push Buttons
Receiver Interface	6 USB Ports (USB A Type)
Power	Input : DC 9.0~30.0V (Typ. 30W, Max 50W)
GPS Interface	Built-In (NMEA 0183 GPS)
Remote Control Interface	Available
