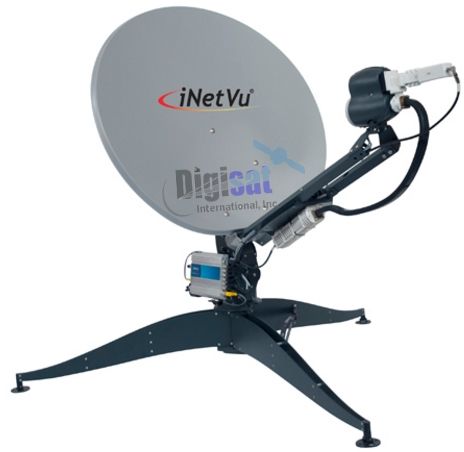

iNetVu FLY-981 .98M Ku-Band Portable Flyaway Auto-Acquire Antenna
Field up-gradable to FLY-98V, 98G or 98H
FLY-981 .98M Portable Flyaway Auto-Acquire Antenna
The iNetVu FLY-981 Flyaway Antenna is a 98 cm satellite antenna system which is a highly portable, self-pointing, auto-acquire unit that is configurable with the iNetVu 7710 Controller providing fast satellite acquisition within minutes, anytime anywhere. It can be assembled in 10 minutes by one person
Auto Satellite Acquisition
The FLY-981 series antenna automatically locates the satellite without any manual intervention, which makes this system an ideal choice for users without any satellite experience.
Key Features
One-Piece, high surface accuracy, off set feed, steel reflector
Heavy duty feed arm capable of supporting up to 5kg (10lbs) RF Electronics (LNB & BUC)
Designed to work with the iNetVu 7710 Controller
Works seamlessly with the world’s most popular commercially available Ku modems
Axis motorization
Supports manual control when required
One button, auto-pointing controller acquires Ku-band satellite within 2 minutes
Captive hardware / Fasteners
10 minute assembly by one person, no tools required
Compact packaging; 3 ruggedized cases
Standard 2 year warranty
Application Versatility
Operating in Ku-Band frequencies, the iNetVu FLY-981 system is easily configured to provide instant access to satellite communications for any application that requires reliable and/or remote connectivity in a rugged environment. This next generation Flyaway Ku terminal delivers affordable broadband Internet services (High-speed access, Video & Voice over IP, file transfer, e-mail or web browsing). Ideally suited for industries such as Oil & Gas Exploration, Military Communications, Disaster Management, SNG, Emergency Communications Backup, Cellular Backhaul and many others.

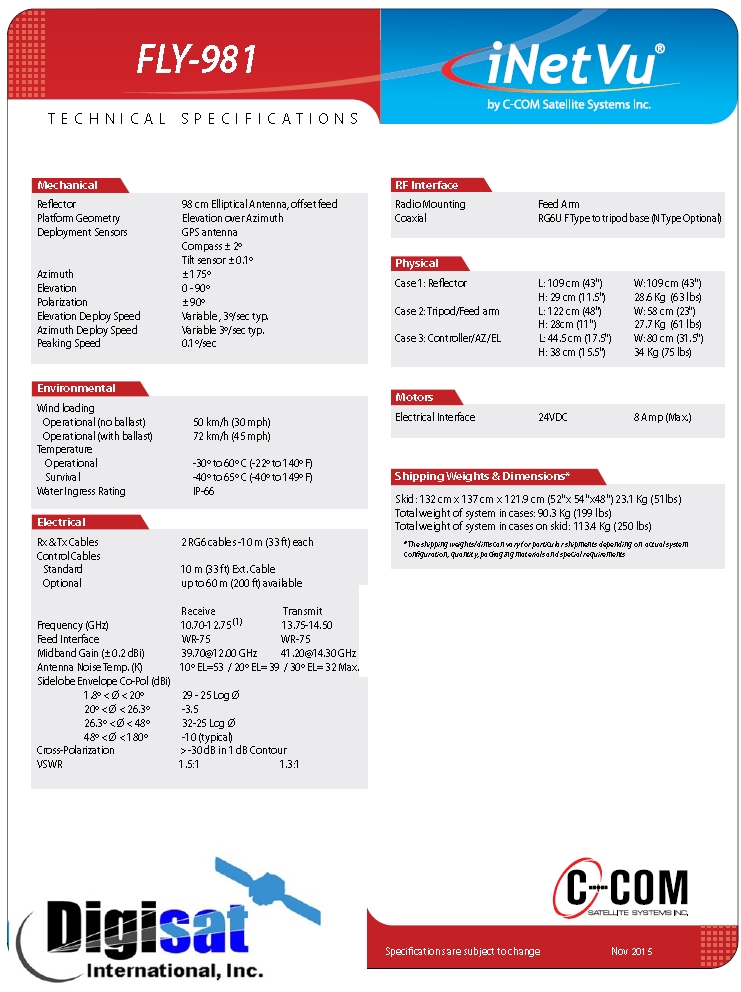

Specifications
Reflector 98 cm Elliptical Antenna, off set feed
Platform Geometry Elevation over Azimuth
Deployment Sensors GPS antenna
Compass ± 2º
Tilt sensor ± 0.1º
Azimuth ± 175º
Elevation 0 - 90º
Polarization ± 90º
Elevation Deploy Speed Variable , 3º/sec typ.
Azimuth Deploy Speed Variable 3º/sec typ.
Peaking Speed 0.1º/sec
Environmental
Wind loading: Operational (no ballast) 50 km/h (30 mph), Operational (with ballast) 72 km/h (45 mph)
Temperature Operational -30º to 60º C (-22º to 140º F)
Survival -40º to 65º C (-40º to 149º F)
Water Ingress Rating IP-66
Electrical
Rx & Tx Cables 2 RG6 cables -10 m (33 ft) each
Control Cables: Standard 10 m (33 ft) Ext. Cable, Optional up to 60 m (200 ft) available
Receive Transmit Frequency (GHz) 10.70-12.75 (1) 13.75-14.50
Feed Interface WR-75 WR-75
Midband Gain (± 0.2 dBi) 39.70@12.00 GHz 41.20@14.30 GHz
Antenna Noise Temp. (K) 10º EL=53 / 20º EL= 39 / 30º EL= 32 Max.
Sidelobe Envelope Co-Pol (dBi)
1.8º < Ø < 20º 29 - 25 Log Ø
20º < Ø < 26.3º -3.5
26.3º < Ø < 48º 32-25 Log Ø
48º < Ø < 180º -10 (typical)
Cross-Polarization > -30 dB in 1 dB Contour
VSWR 1.5:1 1.3:1
RF Interface
Radio Mounting Feed Arm
Coaxial RG6U F Type to tripod base (N Type Optional)
Ku-Band iDirect Satellite Internet service access
