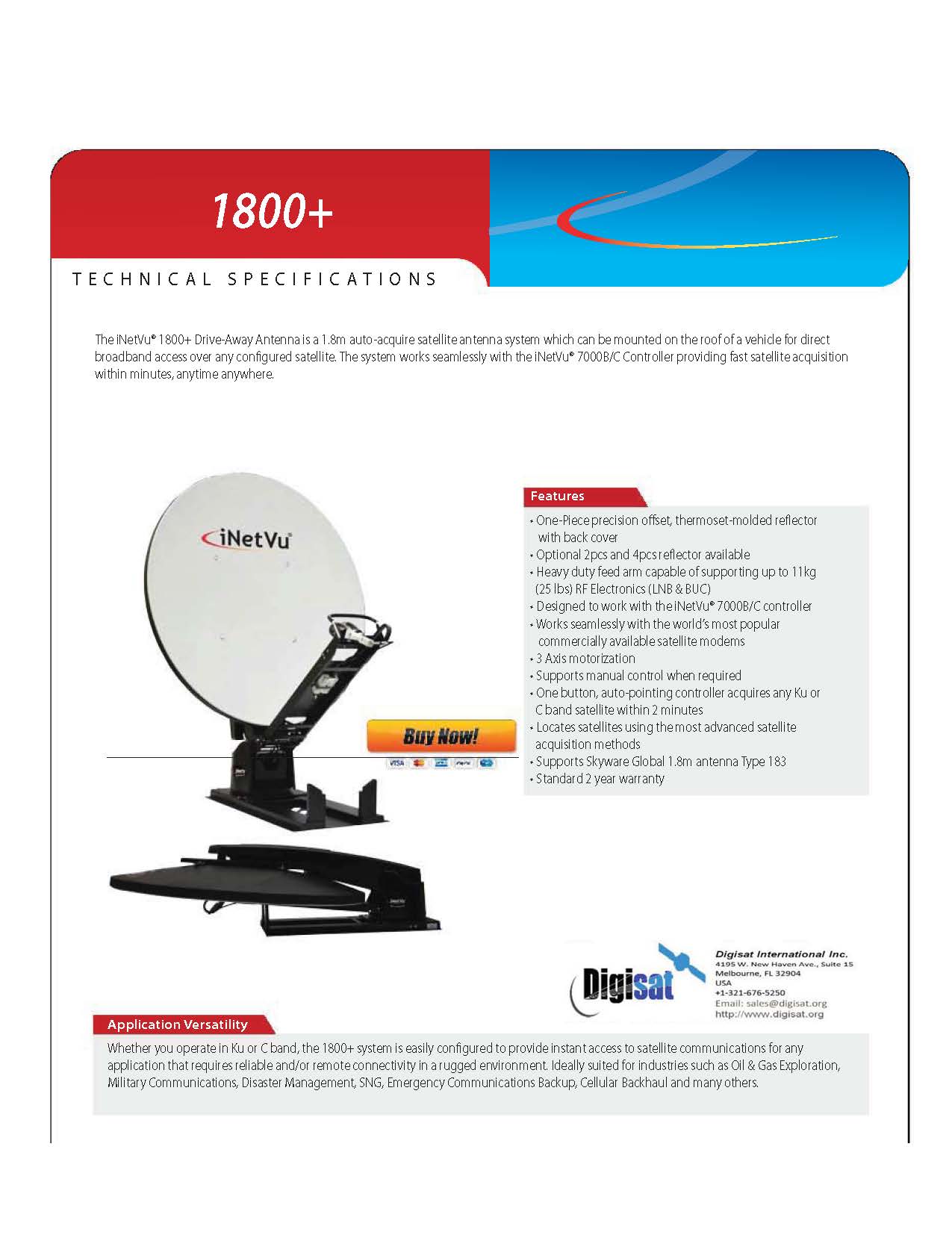

C-Com iNetVu 1800 C or Ku-Band Mobile VSAT Antenna System
1.8m antenna, C-, X- or Ku-Band, Mounts on all larger vehicles
1800 Series Vehicular Mobile VSAT
The iNetVu 1800 1.8 meter SNG Vehicle Mounted VSAT Antenna can be easily mounted on a wide range of vehicles from small compact cars to large trucks and SUVs. The 1800 is also a terrific antenna for VSAT and command trailers due to it's rugged construction. The iNetVu 1800 can be configured as an SNG video uplink system with it's standard amplifier power handling capability of over 195 watts.
Remote Broadband
The 1800 antenna can also provide remote internet connectivity for applications such as oil and gas, tele-medecine, mineral exploration and emergency communications. Whether you're looking to use the 1800 as an SNG antenna or a remote satellite internet access antenna, this 1.8 meter vehicle VSAT antenna is an excellent choice that will meet the most stringent requirements while delivering optimum RF performance.
iNetVu 1800 Features
Full 360 degrees Azimuth travel
Stowed wind loading of up to 140 Mph
Heavy duty & light weight mounting plate
39.3 dBi of transmit gain
Automatic satellite acquisition
Multiple Transmit and Receive Frequencies
Supporting all modems, the iNetVu 1800 is used for applications such as Mobile Medical, Disaster management, and Emergency Response. The iNetVu 1800 Mobile VSAT antenna operates in C, X or Ku Band.

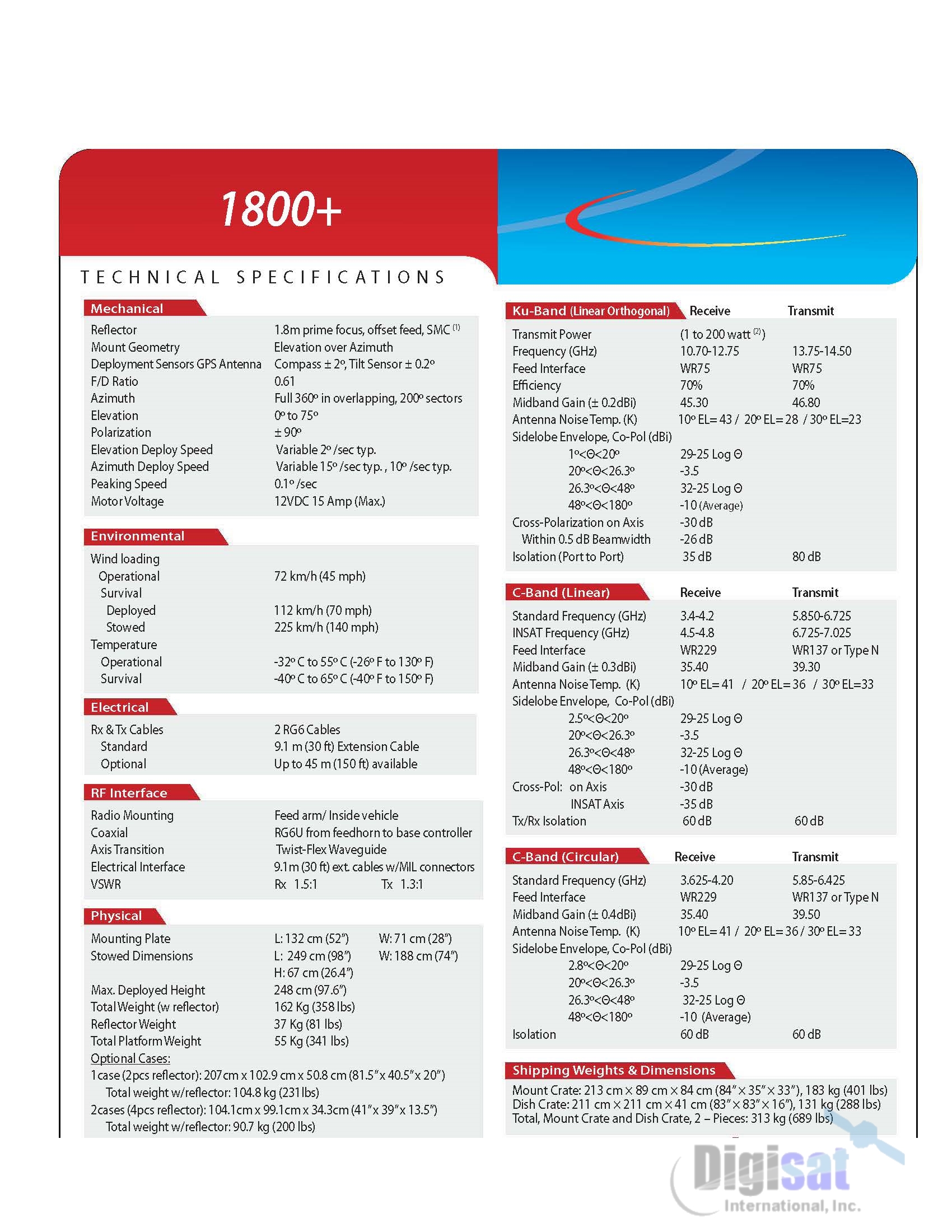

Mechanical
Reflector 1.8m prime focus, offset feed, SMC (1)
Platform Geometry Elevation over Azimuth
Deployment Sensors GPS Antenna Compass ± 2º, Tilt Sensor ± 0.2º
F/D Ratio 0.61
Azimuth Full 360º in overlapping, 200º sectors
Elevation 0º to 75º (Optional - up to 80º)
Polarization ± 90º
Elevation Deploy Speed Variable 2º /sec typ.
Azimuth Deploy Speed Variable 15º /sec typ. , 10º /sec typ.
Peaking Speed 0.1º /sec
Motor Voltage 12VDC 15 Amp (Max.)
Environmental
Wind loading
Operational 72 km/h (45 mph)
Survival - Deployed 112 km/h (70 mph), Stowed 225 km/h (140 mph)
Temperature - Operational -32º to 55º C (-26º to 130º F), Survival -40º to 65º C (-40º to 149º F)
Electrical
Rx & Tx Cables 2 RG6 Cables
Control Cables
Standard 9.1 m (30 ft) Extension Cable
Optional Up to 45 m (150 ft) available
RF Input Interface
Radio Mounting Feed arm/ Inside vehicle
Coaxial RG6U from feedhorn to base plate
Axis Transition Twist-Flex Waveguide
Electrical Interface 9.1m (30 ft) ext. cables w/MIL connectors
VSWR Rx 1.5:1 Tx 1.3:1
Physical
Mounting Plate L: 132 cm (52”) W: 71 cm (28”)
Stowed Dimensions L: 249 cm (98”) W: 188 cm (74”), H: 67 cm (26.4”)
Deployed Height 248 cm (97.6”)
Total Weight (w refl ector) 162 kg (358 lbs)
Reflector Weight 37 kg (81 lbs)
Total Platform Weight 125 kg (275 lbs)
Transport Cases
1case (2pcs reflector): 207cm x 102.9 cm x 50.8 cm (81.5” x 40.5” x 20” )
Total weight w/reflector: 104.8 kg (231lbs)
2cases (4pcs reflector): 104.1cm x 99.1cm x 34.3cm (41” x 39” x 13.5”)
Total weight w/reflector: 90.7 kg (200 lbs)
Ku-Band Feed
Transmit Power (1 to 200 watt (2))
Frequency (GHz) 10.70-12.75 13.75-14.50
Feed Interface WR75 WR75
Efficiency 70% 70%
Midband Gain (± 0.2dBi) 45.30 46.80
Antenna Noise Temp. (K) 10º EL= 43 / 20º EL= 28 / 30º EL=23
Sidelobe Envelope, 1º<Θ<20º 29-25 Log Θ
Co-Pol (dBi) 20º<Θ<26.3º -3.5
26.3º<Θ<48º 32-25 Log Θ
48º<Θ<180º -10 (Average)
Cross-Polarization on Axis -30 dB
Within 0.5 dB Beamwidth -26 dB
Isolation (Port to Port) 35 dB
C-Band Linear Feed
Standard Frequency (GHz) 3.4-4.2 5.850-6.725
INSAT Frequency (GHz) 4.5-4.8 6.725-7.025
Feed Interface WR229 WR137 or Type N
Midband Gain (± 0.3dBi) 35.40 39.30
Antenna Noise Temp. (K) 10º EL= 41 / 20º EL= 36 / 30º EL=33
Sidelobe Envelope, 2.5º<Θ<20 29-25 Log Θ
Co-Pol (dBi) 20º<Θ<26.3º -3.5
26.3º<Θ<48º 32-25 Log Θ
48º<Θ<180º 10 (Average)
Cross-Pol: on Axis -30 dB
INSAT Axis -35 dB
Tx/Rx Isolation 60 dB
C-Band (Circular) Receive Transmit
Standard Frequency (GHz) 3.625-4.20 5.85-6.425
Feed Interface WR229 WR137 or Type N
Midband Gain (± 0.4dBi) 35.40 39.50
Antenna Noise Temp. (K) 10º EL= 41 / 20º EL= 36 / 30º EL= 33
Sidelobe Envelope, 2.8º<Θ<20º 29-25 Log Θ
Co-Pol (dBi) 20º<Θ<26.3º -3.5
26.3º<Θ<48º 32-25 Log Θ
48º<Θ<180º -10 (Average)
Isolation 60 dB 60 dB
Shipping Weights & Dimensions
Crate: 213cm x 89cm x 84cm (84” x 35” x 33”), 55 kg (121 lbs)
Platform: 123 kg (272 lbs); 7024C Controller: 6 kg (13 lbs); Cables: 5 kg (11 lbs)
Refl ector Box (Refl ector, Back Cover included) on Pallet, wood:
208cm x 206cm x 38cm (82” x 81” x 15”), 102 kg (225 lbs)
Total weight on Pallet, 2 – Pieces: 292 kg (642 lbs)
