Intellian v60 60cm (Ku-Band) Marine VSAT Antenna System
Compact design, easy setup and operation, worldwide ocean coverage
V60 Marine Satellite Internet System
The Intellian v60 Marine VSAT Antenna is a 60cm, highly sophisticated 3-axis stabilized satellite communications antenna that delivers high speed satellite internet at sea. The advanced V60 is the ideal satellite antenna solution for super yachts, ships as well as commercial work boats. Like all of the Intellian Marine VSAT antennas, the Intellian v60 comes standard with a high performance tracking system that will maintain signal lock in rough seas, under the most extreme pitch and roll circumstances. The v60 accomplishes this task by receiving input from the ship’s electronic stabilization system.

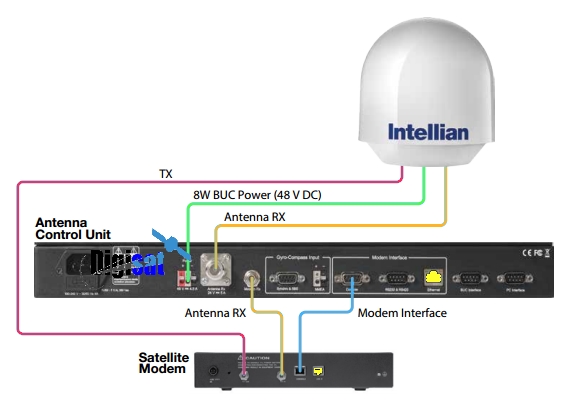

Configuration
Installation
The Intellian v60 antenna can be easily installed on all vessels, whether you're upgrading your existing marine satellite internet equipment or starting out with an entirely new antenna.
The Intellian v60 is available for expedited delivery and can be shipped anywhere, worldwide. Digisat can also provide complete installation and setup services for the v60 at your location around the globe.
System Dimensions
Intellian v60 X-pol only w/o BUC
PN：V1-60
Intellian v60G X-pol and Co-pol w/o BUC：Part Number
VG-61
BUC OPTIONS
NJRC 4W Standard
Part Number：V1-2101
NJRC 8W Standard (NJT5118NM)：Part Number
V1-2102
NJRC 8W Extended (NJT5118NM)：Part Number
V1-2103
CODAN Mini 8W Standard (4908-W/S-DC/EX-CE-NI)
Part Number：V1-2103
CODAN Mini 16W Standard (4916-W/S-48/EX-CE-NI)
Part Number：V1-2103
CODAN Mini 8W Extended (4908-W/E-DC/EX-CE-NI)
Part Number：V1-2103
CODAN Mini 16W Extended (4916-W/E-48/EX-CE-NI)
Part Number：V1-2103
RADOME & ANTENNA
Radome Height
84.5 cm (33.3 inch)
Radome Diameter
78.0 cm (30.7 inch)
Reflector Diameter
60.0 cm (23.6 inch)
Weight
59.5 kg (131.2 lbs) Variable w/ RF components
STABILIZED PEDESTAL ASSEMBLY
Pedestal Type
3-axis (Azimuth, Elevation, Cross-level)
Azimuth Range
Unlimited
Elevation Range
-10° ~ 100°
Cross Level Range
±30°
RF PERFORMANCE
TX Frequency
13.75 ~ 14.5 GHz Ku-band
TX Gain
37 dBi @ Mid band
RX Frequency
10.95 ~ 12.75 GHz Ku-band
RX Gain
35.6 dBi @ Mid band
G/T
15.0 dB/K (Clear Sky, 30° Elevation)
BUC Power
4W, 8W, 16W (Optional)
LNB
Intellian Global PLL LNB's
Polarization
Cross-pol and Co-pol as standard
ANTENNA CONTROL UNIT
Dimensions (W × D × H)
43.1 cm × 38.1 cm × 4.4 cm (17 inch × 15 inch × 1.7 inch)
Weight
5.2 kg (11.5 lbs)
Display
2 line 40 character graphic VFD module
Ship’s Gyrocompass Interface
NMEA / Synchro
Modem Interface
Ethernet port / RS-232C / I / O ports
Modem Protocol
iDirect, Comtech, SatLink, Hughes, GILAT
Remote Management
Yes
Wi-Fi Operation
N/A
Power Requirement
100~240V AC, 50~60Hz, 4A
Satellite Internet access services white underway at sea. Ships and Yachts where existing gyro compass system is already installed.
