iDirect Evolution Mesh Receiver TDMA Multi-Carrier
Ideal for applications requiring low latency or high site-to-site traffic

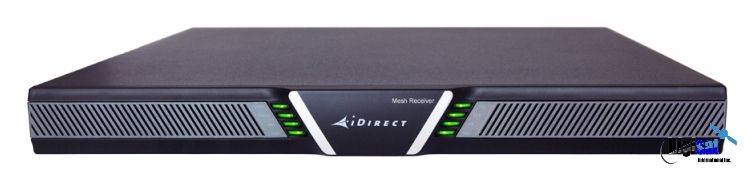

Evolution Multi-Carrier Mesh Receiver
The iDirect Mesh Receiver is part of the Evolution series Multi-Carrier Mesh solution which features a high performance, industry-leading 16 channel demodulator with an aggregate receive capacity of up to 29 Msps and individual carrier rates up to 7.5 Msps.
Highlights
- Based on the proven Evolution platform
- 2RU solution with the X7 remote
- Receive throughput up to 7.5 Msps per channel and 29 Msps aggregate
- Receives up to 16 TDMA channels simultaneously, enabling high data throughput without oversized antenna and BUC
- Frequency hopping on transmit using the X7
- Star/mesh bandwidth sharing
- Receives 1-hop transmission from non-mesh terminal using Mesh Tx-only mode
- TCP acceleration for mesh links
- Evolution platform scalability
- Ideal for regional gateway and star-in-star topology
Router Overview
The Evolution Multi-Carrier Mesh solution is iDirect’s high performance product with an industry-leading aggregate receive throughput of up to 29 Msps and individual carrier rates up to 7.5 Msps. Based on the Mesh Receiver and the popular X7 satellite router, the DVB-S2 mesh offering is implemented as a mesh overlay on an Evolution star topology network. The mesh overlay provides direct connectivity between remote terminals with a single trip over the satellite, thereby halving the latency and reducing satellite bandwidth requirements.
Demodulates up to 16 TDMA carriers simultaneously
