7801FR 1RU Multiframe Chassis
The Evertz 7801FR is a 1RU multiframe that houses up to 4 single or 2 dual slot modules in any combination. With simultaneous processing capability of RF, Fiber, ASI, IP, 3G, HD/SD and more, this frame is designed to grow with the rapid changing needs of the facility and is available in a wide variety of configurations defined below.
Standard features of all 7800 series multiframes include dual frame genlock providing stable reference signal across the internal bus to all installed modules which minimizes the cost spent on genlock distribution, global frame status alarming to provide quick alert to operations in the event of a failure, and interchangeable modules between all frames (both processing module and companion rear plate).
Features
- 7800FR(-QT) houses up to 15 processing modules in 3RU
- 7801FR houses up to 4 processing modules in 1RU
- Dual frame genlock for internal reference distribution
- Front extractable modules, power supplies and fans
- AC, DC and Hybrid AC/DC power supply configurations available
- Auto-ranging power supplies operating between 100V-240V AC and 36V-60V DC
- Backwards compatible with Evertz 7800/7700 series modules
- Frame status contact contact closure alarm in event of failure

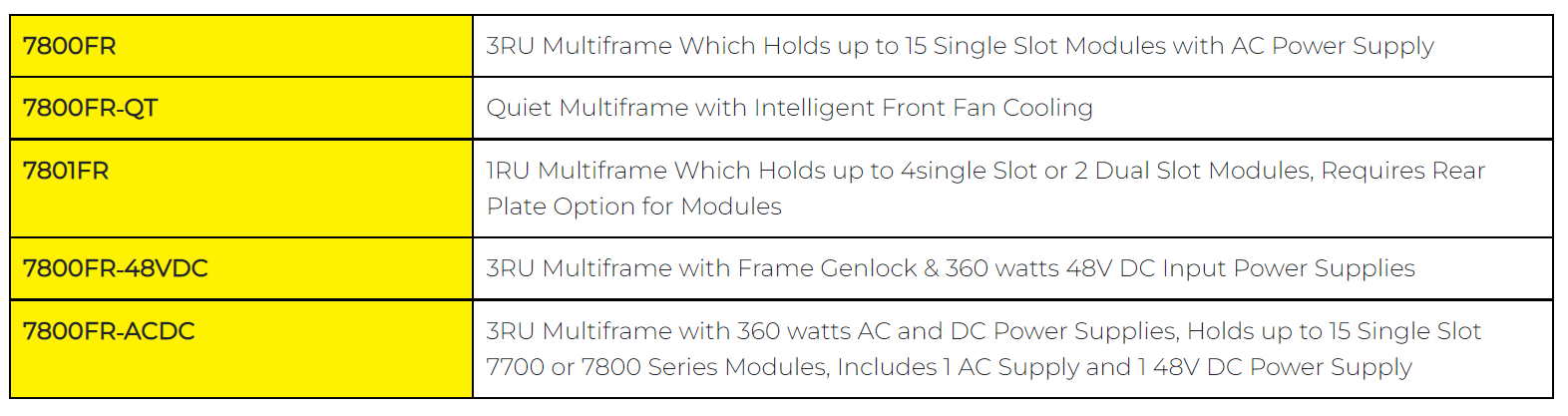

Ordering Information
Ordering Options
|
+78P |
Additional Power Supply for 7800FR Frame |
|
+78PQT |
Additional Power Supply for 7800FR-QT Frame |
|
+781PS |
Redundant Power Supply for 7801FR |
|
+78PDC |
Redundant Power Supply for 7800FR-48V DC Frame |
Accessories |
|
|
7800PS |
Additional Power Supply for 7800FR Frame |
|
7800PS-QT |
Power Supply for 7800FR-QT |
|
7801PS |
Additional power supply for 7801FR |
|
7800PS-48V |
DC Additional Power Supply for 7800FR-48V DC Frame |
|
7800RS-15 |
Rear support kit 15" for 7800 Frame |
|
7700FC |
Frame controller for 7700FR-C |
|
7800FC |
7700FR and 7800FR Frame Controller (Includes VLPRO-C S/W Configuration Tool) |
|
7801FC |
Frame Controller for 7801FR |
|
7800FR-QT-KIT2 |
Quiet Front Fan Retrofit Kit |
Power Supply Configuration:
Single PS: Standard with all frames Dual/Redundant PS: Optional
Inlets: Separate inlets per PS
Electrical:
Voltage: Auto-ranging
7800FR (-QT): 100V to 240V AC, 50/60Hz
7801FR: 100V to 240V AC, 50/60Hz
7800FR-48VDC: 36V to 60V DC
Max Operating Current:
7800FR (-QT): 4.6A @ 100V/60Hz
1.85A @ 240V/50Hz
7801FR: 1.3A @ 100V/60Hz
0.55A @ 240Hz/50Hz
7800FR-48VDC: 11A @ 48VDC
Max Power Consumption / Max Module Load: 7800FR (-QT): 450 Watts / 360 Watts 7801FR: 125 Watts / 110 Watts
7800FR-48VDC: 450 Watts / 360 Watts
Fuses:
7800FR (-QT): 6.3A, 250V ceramic time delay
5x20mm 2 per power supply
7801FR: 2.0A, 250V time delay 5x20mm 1 per power supply
7800FR-48VDC: 12.0A, 250V ceramic time delay
5x20mm 1 per power supply
Physical Dimensions:
7800FR: 19” W x 5.25” H x 14.5” D
(483mm W x 133mm H x 368mm D) 7800FR-QT: 19” W x 5.25” H x 15.75” D
(483mm W x 133mm H x 400mm D)
7801FR: 19” W x 1.75” H x 16” D
(483mm W x 45mm H x 406mm D) 7800FR-48VDC: 19” W x 5.25” H x 14.5” D
(483mm W x 133mm H x 368mm D)
Module Capacity:
7800FR (-QT): Up to 15 single slot modules 7801FR: Up to 4 single slot modules 7800FR-48VDC: Up to 15 single slot modules
Weight:
7800FR: 17.4lbs (7.9kg) empty
7800FR-QT: 18.5lbs (8.4kg) empty
7801FR: 10.0lbs (4.5kg) empty 7800FR-48VDC: 17.5lbs (7.9kg) empty
Common Specifications:
Status Indicators: Power supply status LED
Local error failure LED Tally Output Connector: 4-pin terminal, relay N/O
N/C for status/fault 1A, 30V DC maximum
Safety: CSA Listed
C22.2 No. 60065-03 incl. Am 1
UL 60065-2007
IEC 60065-(2001-12) 7th Ed.
Inc Am 1
Complies with CE low voltage Directive 2006/95/EC
EMC: Complies with FCC part 15 class A Complies with EU EMC
Directive 2004/108/EC Operating Temperature: 0 - 40°C
Humidity: 10-90% non-condensing
Ventilation: Fan assisted
Genlock:
Number of Inputs: 2 BNC
Termination: 75 internal
With simultaneous processing capability of RF, Fiber, ASI, IP, 3G, HD/SD and more, these frames are designed to grow with the rapid changing needs of the facility and are available in a wide variety to defined below.
