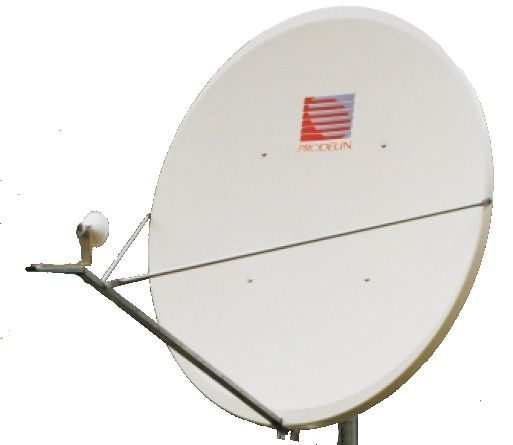

CPI SAT Series 1241 Ku-Band Tx/Rx 2.4 Meter VSAT Antenna
AsiaSat & Eutelsat approved, ETSI Certification
The CPI SAT (formerly GD Satcom and Prodelin) Series 1241 2.4 Meter VSAT Antenna offers Ku-Band transmit and receive operation from 10.7 to 12.75 GHz on the receive side and 13.75 to 14.50 GHz transmit.
Technical Specifications
|
|
|
|
|
Electrical |
Ku-Band Linear |
|
|
Antenna Size |
2.4M (96 in.) |
|
|
Operating Frequency (GHz) Receive Tran |
10.70 - 12.75 GHz 13.75 - 14.50 GHz |
|
|
Antenna Gain at Midband, dBi (± .2dB) Receive Transmit |
47.40 dBi 49.20 dBi |
|
|
VSWR |
Rx: 1.5:1 max Tx: 1.3:1 max |
|
|
Pattern Beamwidth (in degrees at midband) -3 dB -15 dB |
Rx: 0.70° Tx: 0.60° Rx: 1.60° Tx: 1.40° |
|
|
Sidelobe Envelope, Co-Pol (dBi) 100λ/D ≤ θ ≤ 20° 20° < θ ≤ 26.3° 26.3° <θ ≤ 48° θ > 48° |
29 - 25 Log θ dBi -3.5 dBi 32 - 25 Log θ dBi -10 dBi (averaged) |
|
|
Antenna Noise Temperature 10° Elevation 20° Elevation 30° Elevation 40° Elevation |
56 K 51 K 48 K 41 K |
|
|
Cross Polarization Isolation (Line a r ) Receive On Axis T ransmit |
>30 dB >30 dB |
|
|
Axial Ratio (Circular) Receive Transmit |
N/A N/A |
|
|
Feed Interface Receive Transmit |
1WR 75 or Direct Radio Mounting |
|
|
Maximum Radio Weight (Optional Feed Stabilizer available for higher radio weight) |
12 Lbs. (5.5 Kg.) |
|
|
Mechanical |
|
|
|
Reflector Material |
Glass Fiber Reinforced Polyester SMC |
|
|
Antenna Optics |
Prime Focus, Offset Feed, Four-piece |
|
|
Mast Pipe Size |
6” SCH 40 Pipe (6.63” OD) 16.83 cm. |
|
|
Elevation Adjustment Range |
5°to 90°Continuous Fine Adjustment |
|
|
Azimuth Adjustment Range |
360°Continuous, +/- 10°Fine Adjustment |
|
|
Mount Type |
Elevation over Azimuth |
|
|
Shipping Specifications Shipping Weight (Total): Install (Net) Weight: |
545 lbs. (248 kg.) 365 lbs. (166 kg.) |
|
|
Environmental Performance |
|
|
|
Wind Loading Operational Survival |
50 mph (80 km/h) 125 mph (201 km/h) |
|
|
Temperatureo (perational) |
- 40°to 140°F (- 40°to 60°C) |
|
|
Rain (operational) |
½” (13mm) / hr |
|
|
Atmospheric Conditions |
Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas |
|
|
Relative Humidity |
0 to 100% with Condensation |
|
|
Solar Radiation |
360 BTU/h/ft² |
|
All Ku-Band VSAT transmit and receive system network applications
