CPI SAT Series 1194 Ku-Band Tx/Rx 1.8 Meter VSAT Antenna
AsiaSat & Eutelsat approved, ETSI Certification

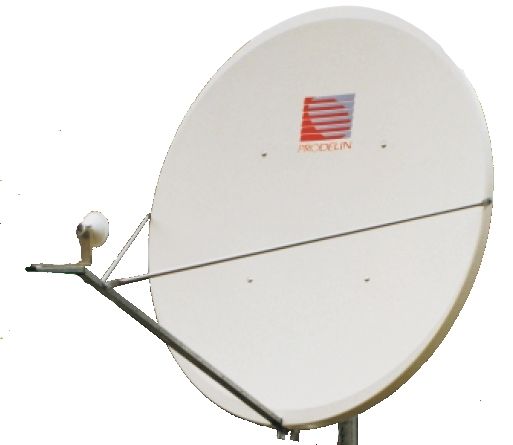

The CPI SAT (formerly GD Satcom and Prodelin) Series 1194 1.8 Meter VSAT Antenna offers Ku-Band transmit and receive operation from 10.95 to 12.75 GHz on the receive side and 13.75 to 14.5 GHz transmit.
|
|
Series 1194C-Band |
Ku-Band |
|
|
Antenna Size |
|
1.8 M (71 in.) |
1.8 M (71 in.) |
|
Operating Frequency (GHz) |
Receive |
3.625 - 4.2 |
10.95 - 12.75 |
|
|
Transmit |
5.850 - 6.425 |
13.75 - 14.5 |
|
Midband Gain ( + .2dB) |
Receive |
35.5 dBi |
45.2 dBi |
|
|
Transmit |
39.5 dBi |
46.7 dBi |
|
AntennaNoiseTemperature |
|
Linear Circular |
|
|
20° elevation 30° elevation |
|
49 K 23 K 47 K 21K |
38K 35 K |
|
Sidelobe Envelope, Co-Pol (dBi) |
|||
|
1° < q < 20° |
|
29-25 Log q dBi |
29-25 Log q dBi |
|
20° < q < 26.3° |
|
- 3.5 dBi |
- 3.5 dBi |
|
26.3° < q < 48° |
|
32 -25 Log q dBi |
32 -25 Log q dBi |
|
48° < q |
|
-10 dBi (averaged) |
-10 dBi (averaged) |
|
FeedInterface Rx |
|
CPR 229 F |
Available in a variety of designs |
|
Tx |
|
CPR 137 or Type N |
Available in a variety of designs |
|
Cross-Pol Isolation within B.P.E. |
|
-26 dB Max. |
-30 dB Max. |
|
|
Any Angle off Axis |
-23 dB Max. |
-25 dB Max. |
|
Axial Ratio (circular) |
Receive |
2.28 dB |
|
|
|
Transmit |
1.60 dB |
|
|
VSWR |
|
1.3:1 Max. |
1.3:1 Max. |
Mechanical |
|
|
|
|
ReflectorMaterial |
|
Glass Fiber Reinforced Polyester SMC |
|
|
Antenna Optics |
|
Prime Focus, Offset Feed |
|
|
Mast Pipe Size |
|
5" SCH 40 Pipe (5.56" OD) 141 mm. |
|
|
Elevation Adjustment Range |
|
5° to 90° Continuous Fine Adjustment |
|
|
Azimuth Adjustment Range |
|
+ 45° Fine, 360° Continuous |
|
|
ShippingSpecifications |
Weight |
245 lbs. (111 kg.) 235 lbs. (106.5 kg.) |
|
|
Wind Loading |
Operational Survival |
50 mph (80 km/h) 125 mph (201 km/h) |
|
Temperature |
Operational Survival |
-40° to 140° F (-40° to 60° C) -50° to 160° F (-46° to 71° C) |
|
Rain |
Operational Survival |
1/2" /hr 2" /hr |
|
Ice |
Operational Survival |
-------- 1/2" radial |
|
Atmospheric Conditions |
|
Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas |
|
SolarRadiation |
|
360 BTU/h/ft2 |
All Ku-Band VSAT transmit and receive system network applications
