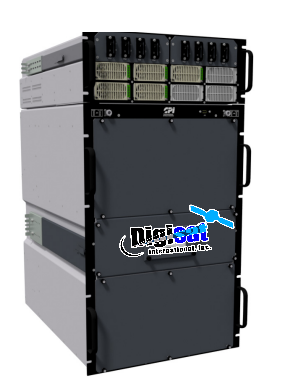

CPI Satcom Indoor GaN ModuMax Ku-Band SSPA Systems (Single HPA 1100W)
CPI Satcom Modumax Single HPA Indoor Ku-Band SSPA Systems are high power solid-state amplifiers that offer saturated power of 1100 watts across the standard 13.75 to 14.5 GHz
GaN ModuMax Indoor Ku-Band SSPA System (Single HPA)
CPI Satcom GaN ModuMax Series Indoor Ku-Band SSPA Systems are high power solid-state amplifiers that offer output power of 1100 watts across the standard 13.75 to 14.5 GHz satellite uplink bands. Housed in a compact weatherproof enclosure, the amplifiers can be mounted in an antenna hub or outdoors in applications where it is desirable to reduce cable losses by mounting the SSPA close to the antenna.
Easy to Operate and Maintain
- Front panel color touch screen offers quick and easy access for onsite operational control
- Full remote control of all features via the standard network and RS-232/-422/-485 interfaces
- Fast and easy servicing via modular, hot-swappable components
- No downtime during module replacement
Parallel Architecture
- Hot-swappable major system components (power supplies RF modules, fans, logic board, parallel I/O board, front panel touch screen) enable continuous uptime
- RF and power supply modules readily accessible from the front of the chassis for easy maintenance
- Power supply modules configured in parallel to share load making the ModuMAX SSPAs extremely reliable and fault-tolerant
- Passive RF combining architecture provides robust design with no single point of failure
- allowing the system to stay online during a module replacement
- RF modules are combined in an efficient, waveguide power combining network, enabling multi-power level, self redundant configurations
- Front accessible modules eliminate cumbersome back-of-chassis cabling problems
Features
- 1100 W saturated output power
- Real-time virtual factory support
- Multiple redundancy features available
- 3 year all-inclusive warranty
- Embedded web interface, with remote monitoring
- Remote software upgrade and factory monitoring and assistance capabilities
|
CPI ModuMAX GaN SSPA Systems Stand-Alone SSPA Specifications |
||
|
Parameter |
Notes |
Specification |
|
Frequency Range |
Ku-band, Extended |
13.75 to 14.50 GHz |
|
Gain, at Maximum Setting |
|
60 dB min. |
|
Gain vs. Temperature |
0 to 50° C |
±0.75 max., ±0.5 typical |
|
Gain Adjustment Range |
Digital |
20 dB min. in 0.1 dB steps |
|
Gain Flatness |
|
±1.0 dB over the full band; ±0.3 dB over any 40 MHz |
|
Saturated Power Output |
|
+60.3 dBm typ. (1080 W) |
|
Linear Output Power |
|
+57.3 dBm min. (540 W) |
|
Two Tone Intermodulation |
|
-25 dBc max.,-30 dBc typical at rated linear power |
|
Residual Noise, Ku-Band |
14.0 – 14.5 GHz |
-70 dBW/4 kHz max. |
|
Group Delay |
Linear Parabolic Ripple |
0.03 ns/MHz 0.003 ns/MHz2 1.0 ns peak to peak |
|
AM/PM Conversion |
|
1.0°/dB typical at rated linear power |
|
Second Harmonic |
|
-50 dBc max. at rated linear power |
|
Spurious |
|
-70 dBc max. at rated linear power |
|
VSWR |
|
1.3:1 max, input and output, 1.2:1 typical |
|
Sample Ports |
Input Output |
-10 dBc typical -50 dBc typical |
|
Power Requirements |
Voltage Frequency Power factor |
180 to 264 VAC 63 Hz max., 47 Hz min. .98 typical |
|
Power Requirement |
At rated linear power |
11 kVA max., 7.4 kVA typical |
|
Cooling System |
Forced Air |
RF Unit: requires airflow of 950 CFM [26.9 m³/min.] max. PS Unit: requires airflow of 160 CFM [4.53 m³/min.] max. |
|
Operating Temperature |
Ambient/Inlet air |
0°C to +50°C |
|
Storage Temperature |
Non-operating |
-45°C to +85°C |
|
Relative Humidity |
|
95% non-condensing |
|
Altitude Derating |
10,000 ft (3000 m) max. |
Derate 2°C per 1000 ft (300 m) |
|
Dimensions |
RF Unit (16 RU panel height) Pwr Supply (4 RU Panel ht.) |
19.0” W x 27.97”H x 29.37” D; 483 mm W x 711 mm H x 746 mm D (1) 19.0” W x 6.97” H x 27.46” D; 483 mm W x 177 mm H x 697 mm D (1) |
|
Weight (2) |
RF Unit Power Supply |
388 lbs (175 kg) 103 lbs (46 kg) |
|
(1) From front cabinet rail to output waveguide (RF unit) or to AC (PS unit). See outline drawing for additional details. (2) Size and weight are given for a single ModuMAX SSPA |
||
Ku-Band
