CPI Satcom Outdoor GaAs 50W C-Band SSPA
CPI Satcom Outdoor GaAs 50W C-Band SSPA offer saturated power of 50 watts across the standard 5.850 to 6.425 GHz
GaAs Outdoor 50W C-Band SSPA
CPI Satcom Outdoor GaAs 50W C-Band SSPA offers output power of 50 watts across the standard 5.850 to 6.425 GHz satellite uplink bands. Housed in a compact weatherproof enclosure, the amplifiers can be mounted in an antenna hub or outdoors in applications where it is desirable to reduce cable losses by mounting the SSPA close to the antenna.
Features
- 50, 100, 125, 200 or 250 W saturated output power
- 75 dB gain • Built-in monitor and control
- Temperature-compensated gain from -40 to +50°C
- Serial interface (RS-232/-422/-485) standard
- Output isolator for high load VSWR protection
- 20 dB range digital gain adjustment
- RF output sample port (-40 dBc)
- Output power monitor
- Extremely light weight, nominally 36 lb (16 kg)
- Mounts on small antennas
|
PCD, PCM6SxxxLA |
Specifications |
|
|
Parameter |
Notes |
Specification |
|
Frequency Range |
Band “D” Band “M” |
5.850 to 6.425 GHz 5.850 to 6.725 GHz |
|
Input Frequency Range with Option 7, Block Upconverter |
Band “D” Band “M” |
950 MHz min., 1525 MHz max. 950 MHz min., 1825 MHz max. |
|
Gain, at Maximum Setting |
|
75 dB min. |
|
Gain Adjustment Range |
|
20 dB min. |
|
Gain Flatness |
|
±1.0 dB over the full band, standard; ±1.5 dB full band, with Option 7 ±0.3 dB per 40 MHz, standard, ±0.5 dB per 40 MHz, with Option 7 |
|
Gain Stability vs. Temperature |
-40 to +50°C, standard -40 to +50°C, with Option 7 |
±1.0 dB typical, ±1.5 dB max. ±2.0 dB typical, ±2.5 dB max. |
|
Saturated Power Output |
50 W 100 W 125 W 200 W 250 W |
+47 dBm typ. (50 W) +50 dBm typ. (100 W) +51 dBm typ. (125 W) +53 dBm typ. (200 W) +54 dBm typ. (250 W) |
|
Power Output at 1dB compression (P1 dB) |
50 W 100 W 125 W 200 W 250 W |
+46.5 dBm min. (45 W) +49.5 dBm min. (89 W) +50.5 dBm min. (112 W) +52.0 dBm min. (158 W) +53.0 dBm min. (200 W) |
|
Two Tone Intermodulation |
|
-25 dBc max.,-30 dBc typical at 3 dB total backoff from 1dB compression point |
|
Group Delay |
Linear Parabolic Ripple |
0.03 ns/MHz 0.003 ns/MHz2 1.0 ns peak to peak |
|
AM/PM Conversion |
|
2.5°/dB typical, 3.5°/dB max. at (P1 dB) |
|
Noise Figure |
|
8 dB typical at maximum gain, standard 20 dB typical at maximum gain, with Option 7 |
|
VSWR |
Input Input, with Option 7 Output |
1.20:1 typical, 1.30:1 max. 1.35:1 typical, 1.50:1 max. 1.20:1 typical, 1.30:1 max. |
|
Output Sample Port |
|
-40 dBc typical |
|
Connectors |
Input Output Sample Port I/O Power |
Type N Female CPR137G Waveguide Type N Female 10-pin MS, mate supplied 3-pin MS, mate supplied |
|
Power Requirements |
Voltage, 50/100/125 W Voltage, 200/250 W Frequency Power, 50 W Power, 100 W Power, 125 W Power 200 W Power 250 W Power factor corrected |
100 to 242 VAC 180 to 242 VAC 63 Hz max., 47 Hz min. 450 W typical, 500 W max. 650 W typical, 900 W max. 750 W typical, 1000 W max. 950 W typical, 1400 W max. (1) 1000 W typical, 1500 W max .97 typical |
|
Cooling System |
|
Forced Air |
|
Operating Temperature Range |
Ambient air temperature |
-40°C to +50°C |
|
Dimensions |

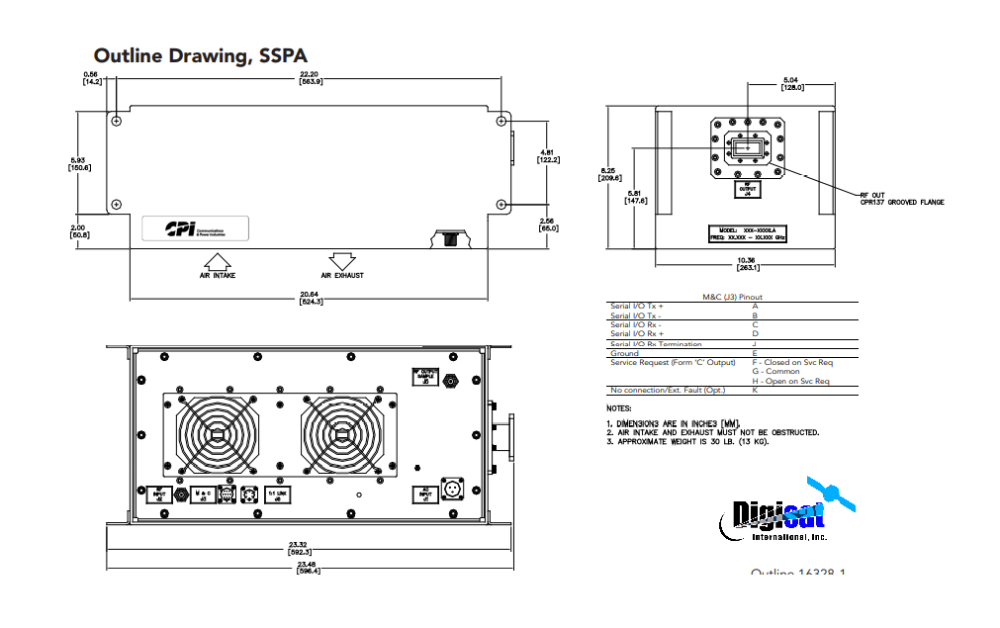

See outline drawing |
8.25” H x 23.48” W x 10.36” D; 210 mm H x 596 mm W x 263 mm D |
|
Weight |
|
36 lb, 16 kg) |
|
(1) Cold start, at -40 °C and POUT in saturation. |
|
|
C-Band
Housed in a compact weatherproof enclosure, the amplifiers can be mounted in an antenna hub or outdoors in applications where it is desirable to reduce cable losses by mounting the SSPA close to the antenna.
