CPI SAT .96m QD-LT Ultra Lightweight Flyaway VSAT System
Ku-Band, X-Band and Ka-Band, Composite reflector, heavy duty aluminum tripod mount system

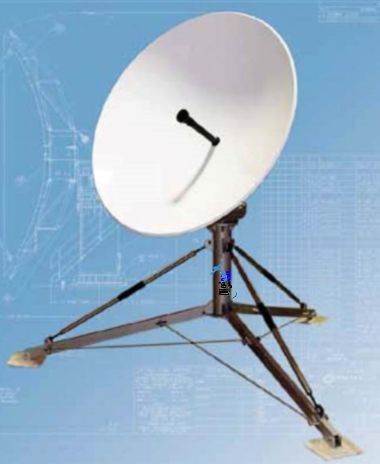

.96 Meter QD-LT Transportable Antenna
This product has reached end of life and is no longer available. Please contact Digisat for a comparable replacement for your application.
The ultra-lightweight CPI SAT (formerly GD Satcom Technologies & Prodelin) 0.96-meter QD-LT is designed for worldwide transmit and receive operation in Ku, X and Ka-band. This portable antenna consists of a segmented composite reflector and compact aluminum tripod mount. This configuration results in an extremely low-weight and packable antenna product with superior stiffness and high performance under wind loading conditions.
High Gain
The unique optical shape and accurate reflector surface provide good sidelobe and excellent cross-polarization performance. Repeatability is maintained with precision registration of the nine-piece reflector segments and RF components. The antenna is easily transportable and can be quickly assembled by one person in less than ten minutes.
Compact
The 0.96m QD-LT antenna system, including a Stepped Ring Focus (SRF) feed, is packaged in one or two transit cases (depending on configuration ordered). The transit case(s), designed to be shipped via commercial air cargo, feature wheels and suitcase handles to ease relocation by one person.
045221‐04 F011132 0800‐4502‐01
- 9‐Piece Axis‐symmetric Composite Reflector 1/2" Core
- Lightweight Compact Aluminum Tripod Base Mount
- Antenna Packs Into Single Transit Case
- Case Hardigg AL 3620‐1705
- Hard Case Included F011132
- Feeds Sold Separately 045528‐01 043790‐01
- Typical antenna test report included ‐ unit range test sold separately
- Color Star Silver Antenna with White Reflector
Worldwide transmit and receive operation in Ku, X and Ka-band
