CPI SAT 9.2M Ka-Band Broadband Gateway Satellite Earth Station Antenna
Ka-Band Transmit & Receive, Increased reflector surface tolerances
9.2 Meter Ka-Band Gateways

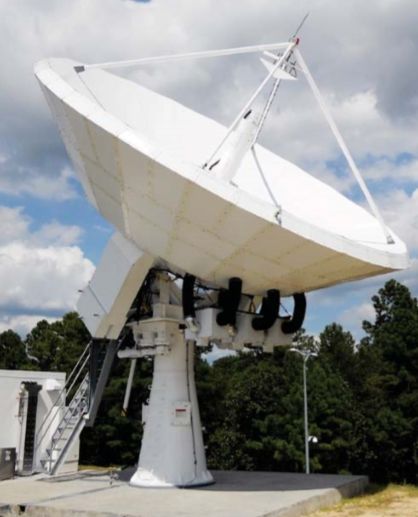

The CPI SAT (formerly GD Satcom Technologies & Prodelin) 9.2M Ka-Band antenna delivers extraordinary performance for broadband hub & Ka-Band Satcom applications. Large diameter Ka-band antennas require unique design criteria which CPI has successfully demonstrated with both the 9.2 and 13.2 meter products.
Reflector Tolerance
Items such as reflector surface accuracy, antenna/ feed design, structural antenna stiffness and integrity, thermal effects, anti-icing, HPA phase combining, monopulse tracking, installation and alignments and hub integration all require special engineering expertise at Ka-band.
Innovative Design
SATCOM Technologies has proven our expertise in the above areas and has earned the position as a preferred antenna system provider and integrator to a number of major satellite broadcasting companies by providing in excess of fifty systems of this type over the past five years alone.
|
Reflector |
9.2 meter, counterweight |
|
|
Optics Configuration |
Cassegrain |
|
|
Frequency Transmit Receive |
Standard Band 28.35-30.00 GHz 18.30-20.20 GHz |
Custom Band 27.50-31.00 GHz 17.70-21.20 GHz |
|
Antenna Gain (Standard Band) Transmit @ Feed Tx Port Input Receive @ LNA Input |
66.1+20Log(F/30.0) dBi63.2+20Log(F/20.2) dBi |
|
|
G/T (min) @ 30° Elevation and 120K LNA (Standard Band) |
39.2 + 20 Log (F/20.2) dBi/K (includes Feed to LNA losses for 1:2 LNA Redundancy) |
|
|
Polarization (Transmit and Receive) |
Dual Circular (RHCP/LHCP) |
|
|
3 dB Beamwidth Transmit Receive |
0.08° 0.12° |
|
|
Axial Ratio @ 1dB BW (X-POL Isolation in dB) |
0.5 dB (30.7 dB) |
|
|
Port to Port Isolation Transmit to Receive Receive to Transmit Transmit to Transmit Receive to Recieve |
85 dB 85 dB 20 dB 20 dB |
|
|
VSWR |
1.35:1 Max |
|
|
Sidelobe Performance (Tx/Rx) |
ITU-RS.580-5 FCC CFR-47 & 25.209 |
|
|
Power Handling |
1 kW CW Per Port, 2 kW Total |
|
|
Feed Waveguide Flange |
Rx (WR-42), Tx (WR-34) |
|
|
Pressurization Operational Maximum |
0.5 psi2.0 psi |
|
|
Elevation Travel |
0 to 90° Continuous |
|
|
Azimuth Travel |
±90° Continuous |
|
|
Axis Velocity |
0.5°/s |
|
|
Axis Acceleration |
0.2°/s2 |
|
|
Azimuth Drive Configuration |
Gear and Pinion, Single Motor Drive |
|
|
Elevation Drive Configuration |
Jackscrew, Single Motor Drive |
|
|
Motor Type for Azimuth and Elevation |
Servo Motor |
|
|
Antenna Two-Axis Pointing Performance (over 10 degree of axis travel) |
0.0066° RMS, No Wind0.0140° RMS Winds 30 mph gusting to 45 mph |
|
|
Tracking Performance for Optrack (C/No: 45 dB-Hz) |
0.0041° RMS, No Wind0.0084° RMS Winds 45 mph gusting to 60 mph |
|
|
Tracking Performance for Monopulse (C/No: 45 dB-Hz) |
0.0041° RMS, No Wind0.0047° RMS Winds 45 mph gusting to 60 mph |
|
|
Tracking Modes |
Program TrackOptrack /Step Track Monopulse |
|
|
Anti-Icing |
Feed Blower Heated Subreflector Optional Primary Reflector – Gas or Electric (as required) |
|
Ka-Band Broadband Gateway Service
