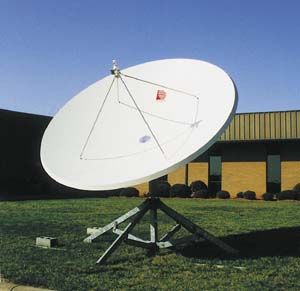

CPI SAT 1374 3.7M RX Only Prime-Focus C-Band Antenna

Technical Specifications

3.0M (10 ft.)

3.4M (11 ft.)

3.7M (12 ft.)

3.7 - 4.2

10.95 - 12.75

3.625 - 4.2

10.95 - 12.75

3.625 - 4.2

10.95 - 12.75

40 dBi

49 dBi

40.2 dBi

49.8 dBi

40.9 dBi

50.7 dBi

1.7°

0.6°

1.6°

0.53°

1.45°

0.5°

30 K 28 K

29 K 26 K

29 K 27 K

28 K 25 K

25 K 23 K

23 K 22 K

CPR 229F

WR 75

CPR 229F

WR 75

CPR 229F

WR 75

-20 dB

-20 dB

-20 dB

>30 dB (on axis)

>30 dB (on axis)

>30 dB (on axis))

1.3:1 Max.

1.3:1 Max.

1.3:1 Max.

- 30 dB

0.2 dB Max

0.2 dB Max.

Reflector Material

Eight Segment Glass Fiber Reinforced Polyester SMC

Antenna Optics

Prime Focus, Axisymmetric

Mast Pipe Size

6” SCH 80 Pipe (6.62” OD) 16.83 cm.

Elevation Adjustment Range

10° to 70° Continuous Fine Adjustment (90° optional)

Azimuth Adjustment Range

360° Continuous / Polar mount covers any 90° segment of arc

Declination Corrected Polar Range (1305/1345/1375)

90° arc coverage with 36” actuator

.30/Quad Feed Support

.36/Quad Feed Support

.37/Quad Feed Support

380 lbs. (173 kg.)

520 lbs. ( 234 kg.)

575 lbs. (259 kg.)

 Operational Survival

45 mph (72 km/h) 125 mph (201 km/h)

 Operational Survival

-40° to 140° F (-40° to 60° C) -50° to 160° F (-46° to 71° C)

 Operational

1/2” per hour

----------

Atmospheric Conditions

Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas
