CPI SAT PCD & PCM Series Outdoor Antenna Mount C-Band SSPA Systems

PCM & PCD Antenna Mounted SSPA

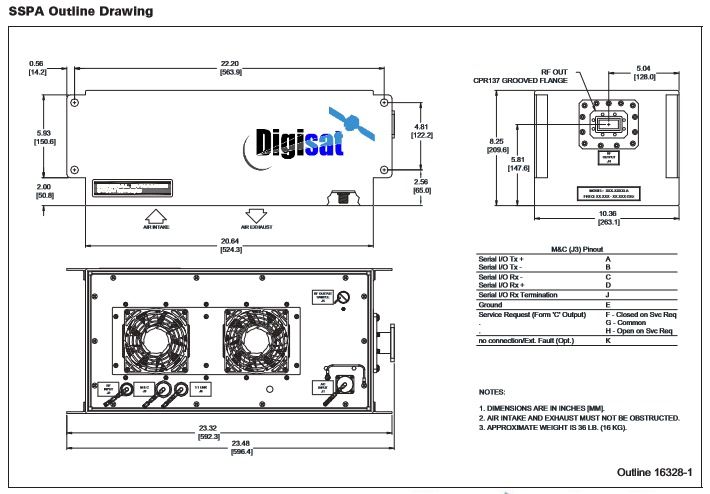

The CPI SAT (formerly GD Satcom Technologies & Prodelin) PCD & PCM Series Outdoor Antenna Mount C-Band SSPA Systems are high power solid-state amplifiers that offer output powers of 50, 100, 125, 200 or 250 watts across the standard 5.850 to 6.425 GHz (“D”) or extended 5.850 to 6.725 GHz (“M”) satellite uplink bands. Housed in a compact weatherproof enclosure, the amplifiers can be mounted in an antenna hub or outdoors in applications where it is desirable to reduce cable losses by mounting the SSPA close to the antenna.

Integrated M&C

The amplifiers feature a microprocessor-based M&C system that facilitates easy setup and control. The PCD & PCM

Configurations

Standard C-Band

• 50 Watt- PCD6S050LA
• 100 Watt- PCD6S100LA
• 125 Watt- PCD6S125LA
• 200 Watt- PCD6S200LA
• 250 Watt- PCD6S250LA

Extended C-Band

• 50 Watt- PCM6S050LA
• 100 Watt- PCM6S100LA
• 125 Watt- PCM6S125LA
• 200 Watt- PCM6S200LA
• 250 Watt- PCM6S250LA

Features

• 50/100/125/200/250 W saturated output power
• 75 dB gain
• Built-in monitor and control
• Temperature-compensated gain from -40 to +50 °C
• Serial interface (RS-232/-422/-485)
• Output isolator for high load VSWR protection
• 20 dB range digital gain adjustment
• RF output sample port (-40 dBc)
• Output power monitor
• Extremely light weight
• nominally 36 lb (16 kg)
• Mounts on small antennas

Applications

• Stand-alone SSPA, 1:1 and 1:2 redundant systems

Accessories

• RCP-2001 remote panel
