CPI SAT HD-65 4.5M Tracking Antenna Pedestal Positioner

HD-65 3.0 to 4.5 Meter Tracking Antenna Pedestal

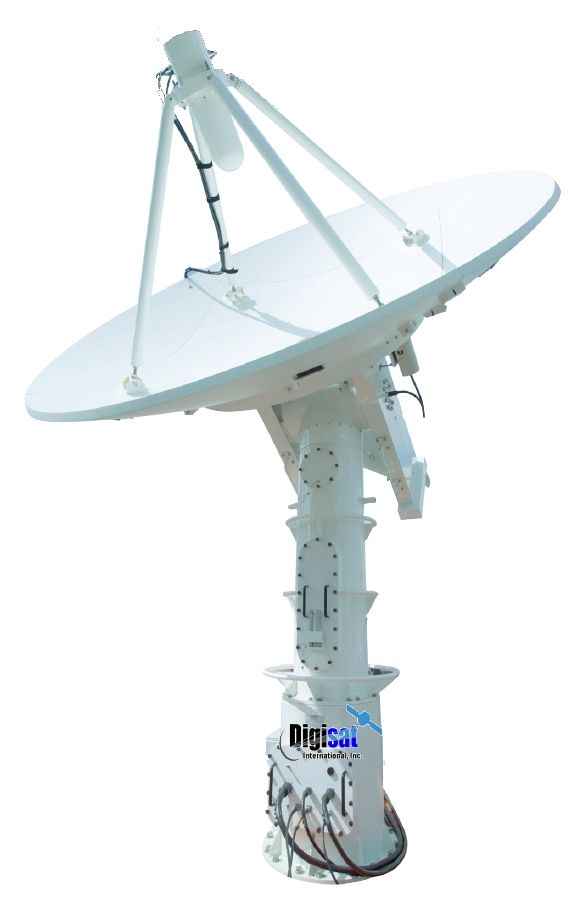

The CPI HD-65 series harmonic drive pedestal is designed to support frequencies from L-Band to Ka-Band and solid reflectors ranging from 3.0 to 4.5 meters in winds of 65 MPH. High output torque with low backlash is accomplished with the use of two stage reduction gearboxes and brushless DC motors. The rugged gearboxes use built-in angular ball bearing construction, which improves the ability to support external loads, increases moment rigidity, and increase maximum allowable moment, resulting in increased reliability and a reduction in maintenance. The use of roller bearings throughout the gearbox yields low backlash (less than 1 arcmin).

For added reliability, the pedestal is designed with servo amplifiers that have protection for over-current, voltage, and temperature. O-ring seals on all panels allow for positive air pressurization of the pedestal.

The HD-65 provides both electronic and mechanical stops and all components are modular. Strategically placed and sized access hatches ensure that all pedestal components are easily accessible. Safety switches are implemented to protect the operator.

Features

• EL/AZ or X-Y Positioner Configurations
• Auto Tracking Feed
• Supports Solid Reflectors up to 4.5 meters (15 ft.)
• High Reliability and Accuracy
• High Torque and Low Backlash
• Rotary Joint and Slipring for Continuous Azimuth Rotation
• Fast Slew Rates
• Brushless DC Motors
• Supports L-Band through Ka-Band
• PC-based Automated Computer Control with P-Series ACU
• Acquisition-Aid Antenna
• Compass and Inclinometer
• Fiber-Optic Control
• Transit Case

Whether you're tracking a Low Earth Orbit (LEO) satellite or providing remote sensing services, Digisat is ready to deliver a total turn-key high speed X/Y antenna system solution.
