CPI SAT C180M 1.8M Vehicular Mount SNG Terminal
C180M Quad-Band SNG VSAT Antenna

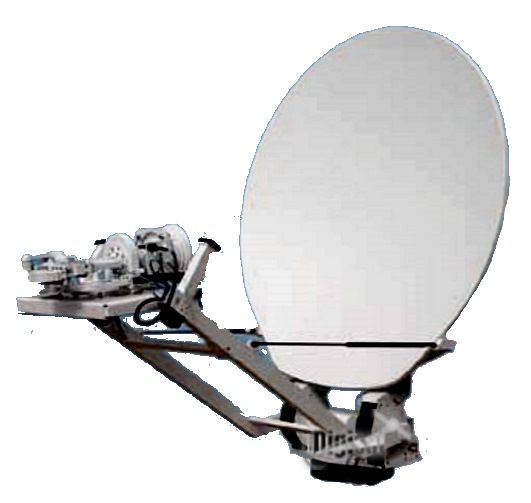

The CPI SAT (formerly GD Satcom Technologies & Prodelin) lightweight C180M 1.8-meter mobile antenna is designed for quad-band transmit and receive operation worldwide. This transportable antenna consists of a single-piece carbon fiber composite reflector mounted on a cable drive elevation-over-azimuth positioner. This results in a low-weight antenna with superior stiffness and high performance under wind loading conditions. The state-of-the-art design provides exceptionally low sidelobe and cross-polarization performance, well within INTELSAT and EUTELSAT requirements. The complete antenna system can be interfaced with most lightweight vehicle structures for the purpose of mobile SNG applications.
044403-02
C180M 1.8 METER SINGLE OFFSET MOBILE ANTENNA -Encoders - Static Pallet. For use with single feed Ku band only.
- Elevation-Over Azimuth, low profile cable drive pedestal designed to be vehicle mounted
- +/- 180º Azimuth travel / 0-90º Elevation travel
- Motorized drive for El, Az, & Polarization
- 30' (9m) control cable with connectors designed for RCI RC3K series or RF Mogul SDC-1 controller
- Main reflector of carbon fiber
- Controller sold separately
- Typical antenna test report available - Unit range test sold separately
- Includes Shipping Crate. Dims 115"L x 90"W x 39"H. Weight 1400 lbs typical including antenna, feed, and controller. Weight does not include any boom mount RF components or optional equipment.
- Color = Commercial White. 33303 Sand and 34094 Green available.
Mechanical
Antenna Diameter: 1.8 meters (5.9 ft); Type: single offset
Reflector Construction Carbon fiber with white paint on surface
Mount Type Elevation over azimuth
Travel Elevation: 5° to 90° of reflector boresight; Azimuth: ±180° continuous
Stow Height 19 in (48.3 cm)
Antenna Weight Ku-band = 260 lbs. (118 kg); C-band = 275 lbs. (125 kg); X-band = 275 lbs. (125 kg)
Feed Multiband interchangeable
Environmental
Wind Performance (depending on vehicle capabilities)
Operational 30 mph (48 km/h) gusting to 45 mph (72 km/h)
Drive 45 mph (72 km/h) gusting to 60 mph (97 km/h)
Survival 80 mph (128 km/h) any position, 120 mph (192 km/h) at stow
Pointing Loss (Operational Winds) 1.0 dB peak (Ku-Band Rx), performance dependent on controller capability
Temperature Range Operational: -22° to +122° F (-30° to +50° C); Survival: -40° to +158° F (-40° to +70° C)
Rain Operational 4 in/h (10 cm/h); Survival 6 in/h (15 cm/h)
Relative Humidity 0% to 100% with condensation
Solar Radiation 360 BTU/h/ft2 (1000 Kcal/h/m2)
Radial Ice (survival) 1 in (2.5 cm) on all surfaces, half inch (1.2 cm) on all surfaces with 80 mph (129 km/h) wind gusts
Shock and vibration tolerant to conditions encountered during shipment by airplane, ship or truck. Atmospheric tolerant to conditions encountered in coastal regions and/
or heavily industrialized areas
Electrical
|
Frequency (GHz) |
10.950-12.750 13.750-14.500 10.950-12.750 13.750-14.500 |
3.625-4.200 |
5.850-6.425 |
3.400-4.200 |
5.725-6.725 |
7.250-7.750 |
7.900-8.400 |
||||||||||||||
|
Antenna Gain at Midband, dBi |
44.90 |
46.50 |
44.70 |
45.90 |
35.20 |
|
39.00 |
35.50 |
|
39.10 |
41.00 |
|
41.70 |
||||||||
|
Beamwidth (in degrees at midband) |
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
-3 dB |
0.95 |
0.80 |
0.95 |
0.80 |
2.91 |
|
1.90 |
2.86 |
|
1.89 |
1.49 |
|
1.37 |
||||||||
|
Sidelobe Performance |
Eutelsat, FCC ITU |
Eutelsat, FCC ITU |
|
ITU |
|
|
ITU |
|
|
DISA |
|
||||||||||
|
Antenna Noise Temperature |
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
5° Elevation |
69 K |
85 K |
69 K |
|
|
59 K |
|
|
67 K |
|
|
||||||||||
|
10° Elevation |
57 K |
73 K |
55 K |
|
|
45 K |
|
|
56 K |
|
|
||||||||||
|
20° Elevation |
50 K |
66 K |
50 K |
|
|
40 K |
|
|
52 K |
|
|
||||||||||
|
40° Elevation |
49 K |
65 K |
51 K |
|
|
41 K |
|
|
53 K |
|
|
||||||||||
|
Power Handling (total) |
2 kW CW |
2 kW CW |
1 kW CW |
|
5 kW CW |
2 kW CW |
|||||||||||||||
|
Cross Polarization Isolation (minimum) |
|
|
|
|
|
|
|||||||||||||||
|
On Axis (LP mode) |
35.0 dB |
35.0 dB |
35.0 dB |
35.0 dB |
30.0 dB |
30.0 dB |
30.0 dB |
30.0 dB |
|
|
|||||||||||
|
Within 1.0 dB BW (LP mode) |
27.0 dB |
35.0 dB |
27.0 dB |
35.0 dB |
26.0 dB |
26.0 dB |
26.0 dB |
26.0 dB |
|
|
|||||||||||
|
On Axis (CP mode) |
|
|
|
|
15.3 dB* |
17.5 dB* |
|
|
21.3 dB |
21.3 dB |
|||||||||||
|
Within 1.0 dB BW (CP mode) |
|
|
|
|
15.3 dB* |
17.5 dB* |
|
|
21.3 dB |
21.3 dB |
|||||||||||
|
Port to Port Isolation (minimum) |
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
Rx/Tx (Rx frequency) |
0 dB |
-30 dB |
0 dB |
-50 dB |
0 dB |
-30 dB |
0 dB |
-30 dB |
0 dB |
-110 dB |
|||||||||||
