CPI SAT BU14SB-D BU Series Ku-Band Block Upconverter (14.0 - 14.5 GHz)

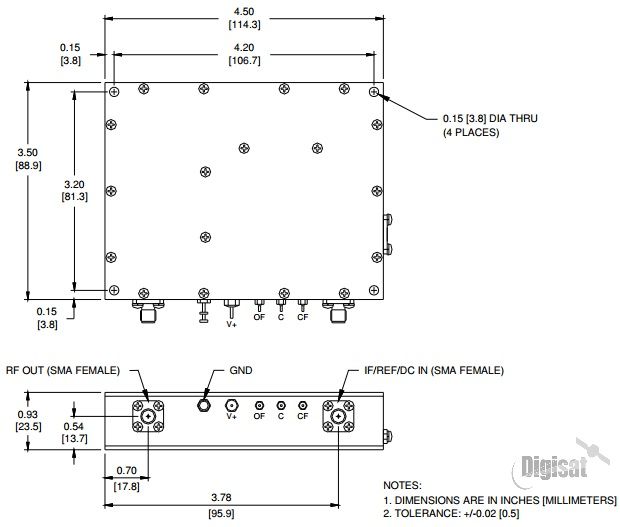

BU14SB-D Ku-Band Block Upconverter

The CPI SAT (formerly GD Satcom Technologies & Prodelin) BU14SB-D BU-Series Ku-Band Block Upconverters are designed to translate a block of L-Band IF input frequencies to Ku-Band (14.0 - 14.5 GHz). These block upconverters have the quality, stability and performance required for demanding transmitting applications in INTELSAT, EUTELSAT, and other satellite communications systems. When used with Solid-State Power Amplifiers (SSPAs) the BU-Series converters will shift the SSPA input frequency to L-Band for use with coaxial or fiberoptic IFLs.

Application Notes BU-Series converters may be powered by one of two methods: Either supply +Vdc between the center conductor and ground of the L-Band input cable (cable powered) or apply +Vdc to the DC power RFI and the ground lug. The alarm RFIs provide a Form ‘C’ contact set which indicates a fault if phase lock is lost. The alarm circuit is rated at 100 V at 50 mA.

BU14SB-D Features

• L-Band input
• Ku-Band = 500 or 750 MHz BW
• Phase-locked oscillator locks to external 10 MHz reference
• INTELSAT/EUTELSAT-compliant phase noise Options
• External reference may be diplexed with IF input or supplied via separate coaxial connector.
