CPI SAT BRKU1 Ku-Band Redundant Block Upconverter System

BRKU1 C-Band Redundant Upconverter System

The CPI SAT (formerly GD Satcom Technologies & Prodelin) BRKU1 Series Ku-Band Redundant Block Upconverter (BUC) systems contain either three converters in a 1:2 redundant configuration or two converters in a 1:1 redundant configuration. The systems include automatic switchover logic, redundant power supplies, and redundant ac line inputs. The systems are designed for installation at satellite earth stations in standard 19-inch EIA equipment racks. The systems are designed to house BU-Series Ku-Band Block Upconverters.

BRKU1 Features

• Standard 19” rack panel, 3.5” high
• Dual redundant power supplies
• Worldwide AC input capability
• Monitors converter bias currents and phase lock to external reference
• Manual or automatic operation
• Manual override switch control knobs on rear panel
• Serial I/O
• Offline I/O
• Frequency reference that is stable to ±20 ppb in stand-alone operation
• 10.0 MHz external reference

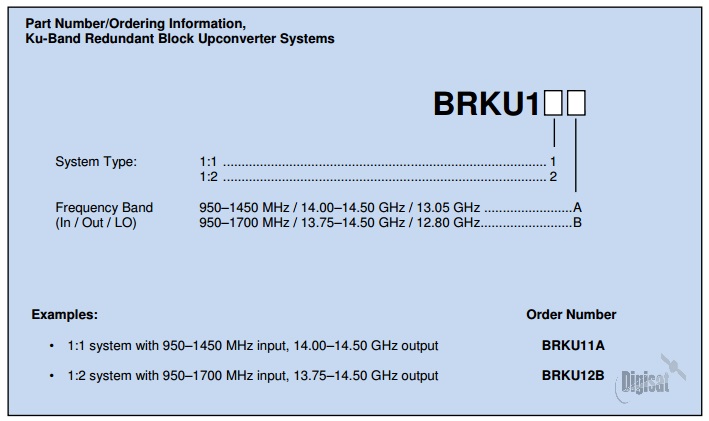

BRKU1 Ordering Configuration
