CPI SAT Model 830A Antenna Control System
Economical satellite tracking, Internal Tracking Receiver (Analog, Digital) with Spectrum Analyzer, Ideal for flyaway and mobile VSAT antennas

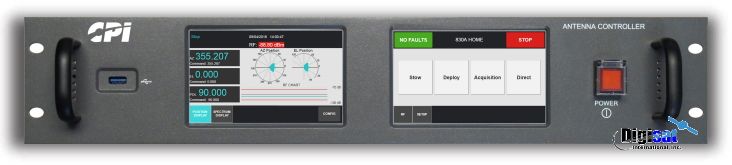

830A Series Antenna Controller
The CPI SAT (formerly GD Satcom Technologies & Prodelin) 830A Antenna Control System provides precision satellite acquisition and tracking with most mobile, transportable, fixed and flyaway antennas. The ACU is the operator interface point for the system and features operator-friendly function menus.
The 2RU ACU contains all control components including the processor, M&C interface, motor controllers and tracking receiver.
Features
- Designed for Transportable and Fixed Antennas
- Steptrack and Pointing Modes
- Dual Touch Screen Color
- Easy to Operate
- GPS, Flux Gate Compass, Inclinometer Interface
- Configurable to Multiple Antennas
- One Touch Acquisition
Tracking Receiver Option (with Spectrum Display)
The 830A has an optional internal L-Band receiver. L-Band operational frequency range is 950 - 2150 MHz and the minimum tracking C/No is 45 dB-Hz.
Antenna Pointing Accuracy
Better than 0.07° RMS in winds of 30 mph gusting to 45 mph. This includes normal drive train errors, but excludes structural errors between the transducers and RF beam.
Enhanced Memory Track
Typically better than 10% of the receive beamwidth with satellite inclinations up to 5°. A variety of operational modes are available for quick target acquisition, pointing and tracking.

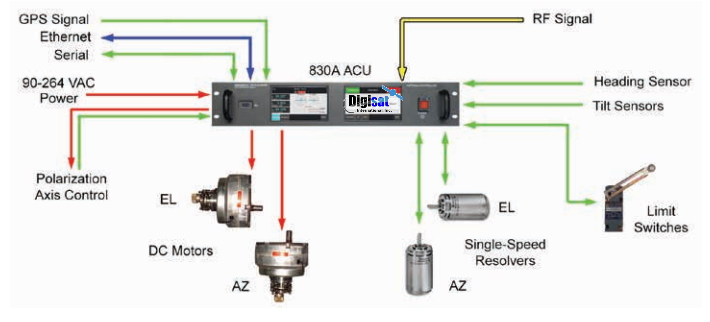

System Diagram
Provides precision satellite acquisition and tracking for mobile, transportable, fixed and flyaway antennas.
