Comtech Radyne DMD1050 Advanced Universal Satellite Modem Board
BPSK/QPSK/OQPSK/8PSK/16-QAM, 2.4 Kbps to 52 Mbps
DMD1050 Advanced Universal Satellite Modem Board

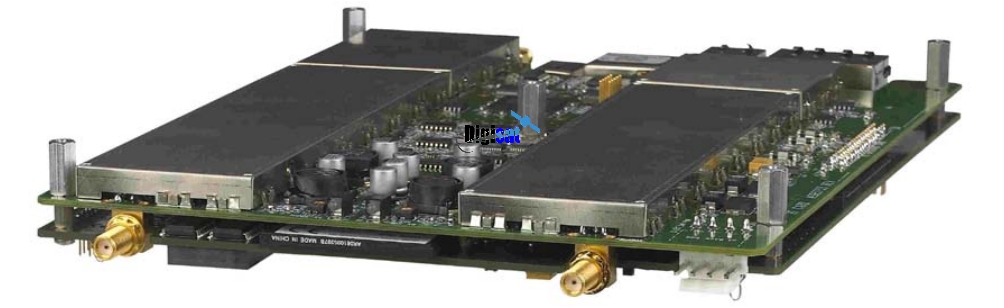

The Comtech Radyne DMD1050 L-Band Satellite Modem board offers a complete modem on a compact PCB daughter board. The compact size saves space and offers system engineers greater flexibility integrating the modem board into the host system. With standards including MIL-STD-188-165A, IESS-308, -309, -310, -314/315 and DVB, and covering data rates up to 20 Mbps, the DMD1050 covers virtually all your satellite IP, telecom, video and Internet applications.
The extensive list of integrated hardware and software options give you the ability to integrate the modem on many platforms and provide an upgrade path for future networks. Options may be purchased with the product or easily upgraded in the field through the web browser or terminal port.
The DMD1050 has an impressive remote accessibility line-up. Remote control via serial RS-232, 10-BaseT SNMP Ethernet or web browser interfaces allow for monitor and control of all the modem's features.
Compatibility with current modems, such as the DMD20, DMD50, DMD2050, and SLM-5650A are maintained for seamless substitution and addition to your existing systems. The DMD1050 modem board integrates supporting hardware for BUC and LNB. Interconnects allow the user to supply external voltages and 10 MHz Reference for BUC and LNB.
Features |
|
• MIL-STD-188-165A compliant |
|
• Compact size 1.1” x 7” x 9.125” |
|
• 950 to 2050 MHz L-Band TX/RX |
|
• Built in MIL-188-114A and Ethernet data interfaces |
|
• BPSK/QPSK/OQPSK/8PSK/16-QAM modulation |
|
• 2.4 kbps to 20 Mbps, 1 bps steps |
|
• FEC – Viterbi, Reed-Solomon, Sequential, Trellis, Turbo Product Code |
|
• Optional 10 MHz high-stability reference |
|
Software Options |
|
• Data Rate upgrade |
|
• Turbo FEC |
|
• IDR, IBS framing |
|
Modulation/FEC |
Code Rate |
1 x 10-5 |
1 x 10-6 |
1 x 10-7 |
1 x 10-8 |
Data Rate Range |
|
BPSK VIT |
1/2 |
5.5 (5.1) |
6.1 (5.7) |
6.7 (6.2) |
7.4 (6.8) |
2.4 kbps – 5.0 Mbps |
|
QPSK VIT |
1/2 |
5.5 (5.1) |
6.1 (5.7) |
6.7 (6.2) |
7.4 (6.8) |
4.8 kbps – 10.0 Mbps |
|
QPSK VIT |
3/4 |
6.8 (6.3) |
7.6 (7.0) |
8.3 (7.7) |
8.9 (8.4) |
7.2 kbps – 15.0 Mbps |
|
QPSK VIT |
7/8 |
7.9 (7.2) |
8.6 (7.9) |
9.3 (8.6) |
10.2 (9.4) |
8.4 kbps – 17.5 Mbps |
|
QPSK VIT R-S |
1/2 |
3.8 (3.4) |
4.1 (3.6) |
4.2 (3.8) |
4.4 (4.0) |
4.8 kbps – 8.88 Mbps |
|
QPSK VIT R-S |
3/4 |
5.4 (4.7) |
5.6 (4.9) |
5.8 (5.1) |
6.0 (5.3) |
7.2 kbps – 13.33 Mbps |
|
QPSK VIT R-S |
7/8 |
6.5 (6.0) |
6.7 (6.4) |
6.9 (6.7) |
7.2 (7.1) |
7.8 kbps – 15.55 Mbps |
|
QPSK SEQ |
1/2 |
5.6 (5.1) |
5.9 (5.4) |
6.3 (5.8) |
6.7 (6.2) |
4.8 kbps – 2.048 Mbps |
|
QPSK SEQ |
3/4 |
6.1 (5.6) |
6.5 (6.1) |
7.0 (6.5) |
7.4 (6.9) |
7.2 kbps – 2.048 Mbps |
|
QPSK SEQ |
7/8 |
6.9 (6.4) |
7.4 (6.9) |
7.9 (7.4) |
8.4 (7.9) |
8.4 kbps – 2.048 Mbps |
|
BPSK TPC |
5/16 |
2.5 (2.3) |
2.7 (2.5) |
2.9 (2.7) |
3.1 (2.9) |
2.4 kbps – 3.12 Mbps |
|
BPSK TPC |
21/44 |
2.7 (2.4) |
2.9 (2.6) |
3.1 (2.8) |
3.3 (3.0) |
2.4 kbps – 4.77 Mbps |
|
Modulation |
BPSK, QPSK, and OQPSK (8PSK, 16-QAM optional) |
|
|
L-Band Tuning Range |
950 to 2050 MHz in 1 Hz steps |
|
|
Impedance |
50 Ohm |
|
|
Connector |
SMA (50 ohm) or F-Type (75 ohm) female |
|
|
Return Loss |
10 dB minimum |
|
|
Output Power |
0 to -25 dBm |
|
|
Output Accuracy |
±1.0 dB Over frequency and temperature |
|
|
Output Spectrum |
Selectable, Meets MIL-188-165A and Intelsat IESS-308-309-310 compliant (DVB-S optional) |
|
|
Spurious |
-55 dBc In-band -45 dBc Out-of-band |
|
|
Harmonics |
-45 dBc |
|
|
On/Off Power Ratio |
>60 dB |
|
|
Scrambler |
CCITT V.35 or IBS (others optional) |
|
|
FEC |
Viterbi, K = 7 at 1/2, 3/4 and 7/8 Trellis 2/3 Turbo Product Code (optional) Per IESS-315 BPSK 5/16, 21/44 QPSK/OQPSK 21/44, 3/4, 7/8 8PSK/16-QAM 3/4, 7/8 |
|
|
Outer Encoder Options |
Reed-Solomon Intelsat (DVB optional) Custom (N, K) Reed-Solomon (optional) |
|
|
Data Clock Source |
Internal, External, RX recovered |
|
|
Internal Stability |
± 1 x 10-6 standard, ± 5x10-8 optional |
|
|
BUC DC Current |
4 Amps maximum (externally supplied) |
|
|
Demodulation |
|
BPSK, QPSK, and OQPSK (8PSK, 16-QAM optional) |
|
L-Band Tuning Range |
950 to 2050 MHz in 1 Hz steps |
|
|
Impedance |
50 or 75 Ohm |
|
|
Connector |
SMA (50 ohm) or F-Type (75 ohm) female |
|
|
Return Loss |
10 dB minimum |
|
|
Spectrum |
Selectable, meets MIL-188-165A and Intelsat IESS-308/309/310 compliant (DVB-S optional) |
|
|
Input Level |
-55 to +10 dBm |
|
|
Total Input Power |
+20 dBm or +40 dBc (the lesser) |
|
|
|
Viterbi, K = 7 at 1/2, 3/4 and 7/8 |
|
Plesiochronous Buffer |
|
|
Size |
0 ms to 64 msec |
|
Centering |
Automatic on underflow or overflow |
|
Centering Modes |
IBS: Integral number of frames IDR: Integral number of multi-frames |
|
Clock |
Transmit, external, RX recovered or SCT (internal) |
Terrestrial Interfaces |
|
|
MIL STD 188-114A |
Differential, all rates, clock/data, DCE |
|
Ethernet 10/100Base-T |
2 Port Ethernet switch/bridge |
Monitor & Control |
|
|
Remote RS-485/Terminal RS-232/Ethernet 10Base-T, (SNMP & Web browser) |
|
Modulation/FEC |
Code Rate |
1 x 10-5 |
1 x 10-6 |
1 x 10-7 |
1 x 10-8 |
Data Rate Range |
|
BPSK VIT |
1/2 |
5.5 (5.1) |
6.1 (5.7) |
6.7 (6.2) |
7.4 (6.8) |
2.4 kbps – 5.0 Mbps |
|
QPSK VIT |
1/2 |
5.5 (5.1) |
6.1 (5.7) |
6.7 (6.2) |
7.4 (6.8) |
4.8 kbps – 10.0 Mbps |
|
QPSK VIT |
3/4 |
6.8 (6.3) |
7.6 (7.0) |
8.3 (7.7) |
8.9 (8.4) |
7.2 kbps – 15.0 Mbps |
|
QPSK VIT |
7/8 |
7.9 (7.2) |
8.6 (7.9) |
9.3 (8.6) |
10.2 (9.4) |
8.4 kbps – 17.5 Mbps |
|
QPSK VIT R-S |
1/2 |
3.8 (3.4) |
4.1 (3.6) |
4.2 (3.8) |
4.4 (4.0) |
4.8 kbps – 8.88 Mbps |
|
QPSK VIT R-S |
3/4 |
5.4 (4.7) |
5.6 (4.9) |
5.8 (5.1) |
6.0 (5.3) |
7.2 kbps – 13.33 Mbps |
|
QPSK VIT R-S |
7/8 |
6.5 (6.0) |
6.7 (6.4) |
6.9 (6.7) |
7.2 (7.1) |
7.8 kbps – 15.55 Mbps |
|
QPSK SEQ |
1/2 |
5.6 (5.1) |
5.9 (5.4) |
6.3 (5.8) |
6.7 (6.2) |
4.8 kbps – 2.048 Mbps |
|
QPSK SEQ |
3/4 |
6.1 (5.6) |
6.5 (6.1) |
7.0 (6.5) |
7.4 (6.9) |
7.2 kbps – 2.048 Mbps |
|
QPSK SEQ |
7/8 |
6.9 (6.4) |
7.4 (6.9) |
7.9 (7.4) |
8.4 (7.9) |
8.4 kbps – 2.048 Mbps |
|
BPSK TPC |
5/16 |
2.5 (2.3) |
2.7 (2.5) |
2.9 (2.7) |
3.1 (2.9) |
2.4 kbps – 3.12 Mbps |
|
BPSK TPC |
21/44 |
2.7 (2.4) |
2.9 (2.6) |
3.1 (2.8) |
3.3 (3.0) |
2.4 kbps – 4.77 Mbps |
Typical Users
Government & Military
Common Applications
Communications atthe-Pause
Communications onthe-Move
Flyaway Communications
Integrated Satellite
Terminal Communications
